1500*1500mm 3D Welding Tables and Fixtures with 5 Mounting Surfaces

Introducing our 1500*1500mm 3D Welding Tables and Fixtures with 5 Mounting Surfaces. As a factory, we produce top-quality products for all your welding needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • FAQ
Overview

Basic Info.

Model NO.
D28
Condition
New
Name
Cast Iron Weld Fixture Table
Hardness
Hb170-240
Specifications
Customized
Flatness
0.001mm/Meter
Production Process
Casting Welding/Steel Plate Welding
Material
Ht300/Q345
Precision
Grade 3
Function
Welding Assembling Table
Plate Thickness
30mm/25mm
Hole Tolerance Distance
100+-0.05mm
Surface Treatment
Tempering,Carburizing,Chrome Plating,Blackening
Table Height
200mm
Loading Weight
150kg
Motor Power
1.5kw
Table Size
Customized
Transport Package
Wooden Box Package
Trademark
Lemar
Origin
Jiangsu, China
HS Code
8515900090
Production Capacity
1000PCS/Month

Packaging & Delivery

Package Size
155.00cm * 155.00cm * 90.00cm
Package Gross Weight
800.000kg

Product Description


Product Description

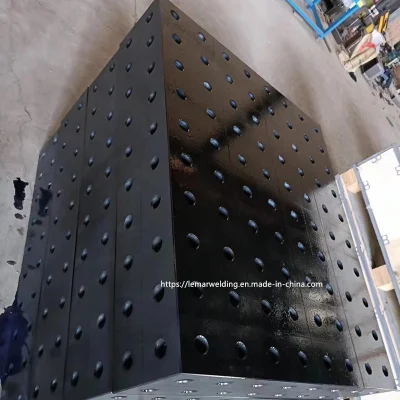

1500*1500mm 3D welding tables and fixtures with 5 mounting surfaces

3D welding fixture table produced by Wuxi Lemar is made of cast iron or steel and has strong flatness.Each hole is universally accurate to 0.001 inch.
The welding platform has been nitrided and hardened to prevent spatter accumulation.
5 corrosion-resistant mounting surfaces are equipped with holes spaced 100mm apart.
Various specifications of positioning fixtures and quick locking pins are available for you to choose from.

The welding platform has been nitrided and hardened to prevent spatter accumulation. The 5 corrosion-resistant mounting surfaces are
The support legs are matched with uprights and height-adjustable foot pads. The height of the welding table support legs is divided into: 720/620/450/200. The foot pad adjustment range is 0-30mm. Customers can also customize the support legs with the required height according to their needs.
Product Parameters
Model D28 D16
Hole diameter 28.065-28.149mm 16.065-16.149mm
Hole distance 100+-0.05mm 50+-0.05mm
Line marks space 100+-0.05mm 50+-0.05mm
Flatness 0.1/1000mm 0.1/1000mm
Verticality 0.1/200mm 0.1/200mm
Loading Standard 2T,Frame 5T Standard 2T,Frame 5T
1500*1500mm 3D Welding Tables and Fixtures with 5 Mounting Surfaces
1500*1500mm 3D Welding Tables and Fixtures with 5 Mounting Surfaces
1500*1500mm 3D Welding Tables and Fixtures with 5 Mounting Surfaces
1500*1500mm 3D Welding Tables and Fixtures with 5 Mounting Surfaces
1500*1500mm 3D Welding Tables and Fixtures with 5 Mounting Surfaces
1500*1500mm 3D Welding Tables and Fixtures with 5 Mounting Surfaces
FAQ

Is the 3D cast iron welding platform suitable for splicing?
Answer: Suitable.
The specifications of cast iron platforms are usually 200*300-3000*8000mm. If the specifications are larger than the above, the splicing form can be considered.
The principles of cast iron splicing platforms are as follows:
1. Ungrooved cast iron platform: consider the splicing method, the fewer pieces the better, this will have less impact on the accuracy after splicing;
2. Special-shaped cast iron platform specifications: Usually the platform is mainly rectangular. If a square is required, such as 5000*5000mm, you can consider splicing it into two rectangles, such as 2500*5000mm. The advantage of this is that the accuracy of the single-block platform is easy to control.
3. Slotted cast iron platform: Try to keep the slot spacing at the splicing part the same as the spacing between other slots after docking. If the slot spacing is required to be 300mm, 150mm can be left at each splicing place, so that the slot spacing after docking is still 300mm.
4. Cast iron platform with large load-bearing capacity: Bearing capacity is an important parameter of the cast iron platform. It is necessary to design the mechanism of each part according to the load-bearing capacity, and reasonable matching can ensure the stable performance of the cast iron platform.
Compared with the whole cast iron platform, the advantages of the multi-piece spliced cast iron platform are that it is easy to transport and process, and the structural performance of the cast iron platform is reduced; however, the multi-piece spliced cast iron platform is not as accurate as the overall cast iron platform. Therefore, customers should consider the usage requirements and the impact of splicing when purchasing cast iron platforms.

1500*1500mm 3D Welding Tables and Fixtures with 5 Mounting Surfaces
1500*1500mm 3D Welding Tables and Fixtures with 5 Mounting Surfaces
1500*1500mm 3D Welding Tables and Fixtures with 5 Mounting Surfaces

Wuxi Lemar Machinery Equipments Co.,Ltd adheres to the business philosophy of "quality as the basis, innovation as the foundation, service as the life", and vigorously develops three-dimensional welding platforms and kits, pipe welding positioner, welding manipulator etc. The company is based on "technology With the quality policy of "Innovation, Excellent Creation, Customer First, Continuous Improvement" and the business philosophy of sincerity and win-win, we provide our customers with excellent products. Your satisfaction is our constant pursuit. You are welcome to send us drawings, call us to customize, and discuss business!

1500*1500mm 3D Welding Tables and Fixtures with 5 Mounting Surfaces









Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
