Model NO.
HGK-20
Vessel Diameter
500-4500mm
Wheel Velocity
6-60m/H
Power of Motor
2*1.1kw
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Loat 20, 000kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month
Product Description
20 Ton Standard Conventional Fit-Up Pipe Welding Rotator With 350mm Wheels
Quickly Details:
Type:Conventional Pipe-up Growing Line/Tank Fit up Rolls
Brand:MISA
Condition:100% brand new
Model number:HGK
Capacity:5Ton - 1000Ton
Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)

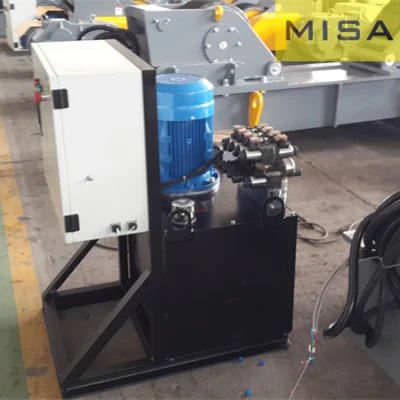

Product Photo:
Product Parameter:
| Type | Max loading (kg) | Vessel diameter(mm) | Dia. and width of the wheel(mm) | Roller linear velocity(m/h) 6-60 | Power of motor(kw) | |
| Rubber rollers | Metal rollers | |||||
| HGKS-5 | 5,000 | Φ250-2300 | Φ250×100 | 2×Φ240×20 | 2X0.37 | |
| HGKS-10 | 10,000 | Φ320-2800 | Φ300×120 | 2×Φ290×25 | 2X0.55 | |
| HGKS-20 | 20,000 | Φ500-3500 | Φ350×120 | 2×Φ340×30 | 2X0.75 | |
| HGKS-40 | 40,000 | Φ600-4200 | Φ400×120 | 2×Φ390×40 | 2X1.5 | |
| HGKS-60 | 60,000 | Φ750-4800 | Φ450×120 | 2×Φ440×50 | 2X2.2 | |
| HGKS-80 | 80,000 | Φ850-5000 | Φ500×120 | 2×Φ490×60 | 2X3 | |
| HGKS-100 | 100,000 | Φ1000-5500 | Φ500×120 | 2×Φ490×80 | 2X3 | |
| HGK-S150 | 150,000 | Φ1000-6000 | / | Φ620×220 | 2X4 | |
| HGKS-250 | 250,000 | Φ1800-7500 | / | Φ660×260 | 2X5.5 | |
| HGKS-500 | 500,000 | Φ1800-8000 | / | Φ750×400 | 2X7.5 | |

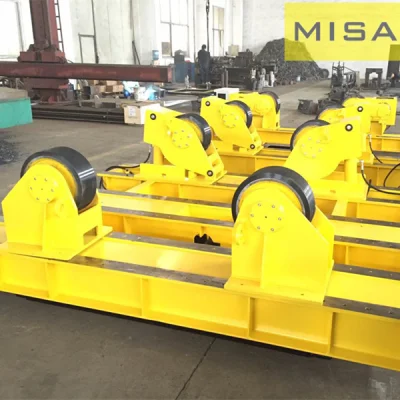

Detail Photo:
Product Description:
Our designed manufactured Conventional Pipe-up Growing Line absorbs the excellence from the same products from the domestic and forign market manufacturing, which is made according to the pressure vessel manufacturer's requirement.Drive rotator is through AC variable frequency motor separate driver reducer then through gear transmission unit to driver the roller to rotation,it's realize driver reduer used gear box structure type ensure that can drive the vessel to rotation,used is more reasonable, also with higher transmission precision, roller shelf life longer.Roller used import material of PU and add big the touch area.
After the completion of the structural parts, it must be tempered to remove stress, and the structural parts shall be pretreated before painting,the machine color:RAL5015(it's also can be decided by the client).
Application:
1. Pressure vessels.
2. Pipe manufacturing industries
3. Wind power fabrication
4. Cylindrical tank's welding, polishing, rubber lining, assembling ,etc
5. Chemical & fuel storage tank fabrication
6. Any heavy cylindrical job
Packing and Shipment:
Features:
1. Several idler units can be set.
2. Our product anti creep function,Hydraulic lifting for fit up pipes,automatic traveling or Manual traveling on the rail.
3. Remote box with 10mtrs control cable.
4. Optional wireless remote box for 200mtrs control distance.
5. We also can design the customize various types of the welding rotator in accordance with the customers requiremt.
