3ton Pipe Alignment Turning Rolls Vessel Fit up Rotator

Find high-quality 3ton Pipe Alignment Turning Rolls Vessel Fit up Rotator at our factory. We offer top-notch products for all your industrial needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
Overview

Basic Info.

Model NO.
KTG-3
Condition
New
Model
Ktg-3
Max Loading Weight
3 Tons
Suitable Pipe Diameter
800-2100mm
Rubber Roller Diameter
300mm
Wheel Roller Width
25mm
Roller Linear Speed
6-60m/H
Motor Power
2*0.25kw
Speed Mode
AC Variable Frequency Stepless Speed Regulation
Lead Time
5 Days
Colour
Customized
Warranty
1 Year
Wheels Quantity
4 Wheels
Wheel Material
Rubber and Steel Wheel
Adjust Mode
by Screw or Bolts
OEM
Yes

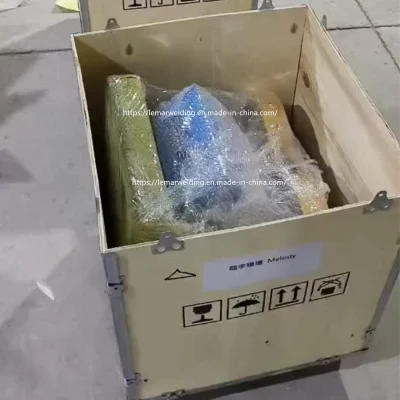

Transport Package
Wooden Box
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Production Capacity
100 PCS/Month

Packaging & Delivery

Package Size
240.00cm * 180.00cm * 55.00cm
Package Gross Weight
500.000kg

Product Description

Product Description

3Ton Pipe alignment turning rolls vessel fit up rotators

The roller stand rotator is used to holds the round workpiece on the roller. The rotation of the roller drives the workpiece to rotate and the speed is adjustable.
This tank welding auxiliary equipment can be used in conjunction with the MIG MAG SAW welder to complete automatic welding.
• For pipe or vessel rotation.
• Polyurethane-edged or steel-edged metal rollers.
• Quick and accurate roller centering adjustment by adjusting bolt distance or screw rod.
• Fast/Slow Footswitch - Optional.
• 220-480V voltage optional
• Different loading weight range 1000kg -800T optional

Specification details:
Model KTG-3 KTG-5 KTG-10 KTG-20 KTG-40 KTG-60 KTG-80
Max loading(T) 3 5 10 20 40 60 80
Suitable for pipe diameter(mm) 180-2100 250-3000 320-3800 400-4200 600-4500 700-5000 700-5500
Polyurethane wheel diameter(mm) 200 250 300 350 400 450 500
Polyurethane wheel width(mm) 110 140 180 200 220 240 260
Metal wheel diameter(mm) / / / / / / /
Metal wheel width(mm) / / / / / / /
Motor power(kw) 0.25*2 0.37*2 0.55*2 1.1*2 1.5*2 2.2*2 3*2
Roller speed(m/min) 100-1000
Speed mode Frequency
Manual control box Supply

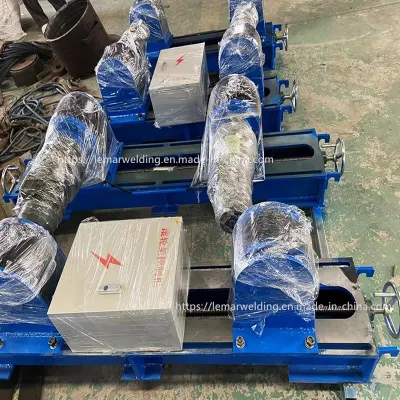

3ton Pipe Alignment Turning Rolls Vessel Fit up Rotator

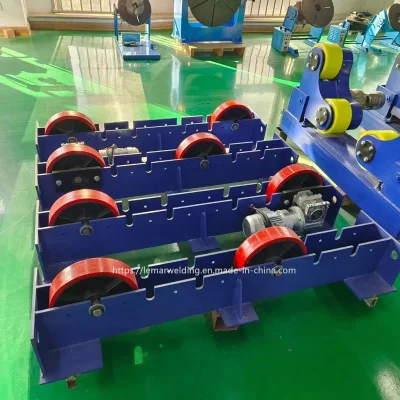

3ton Pipe Alignment Turning Rolls Vessel Fit up Rotator

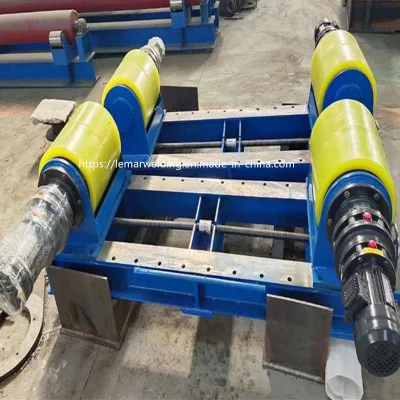

3ton Pipe Alignment Turning Rolls Vessel Fit up Rotator

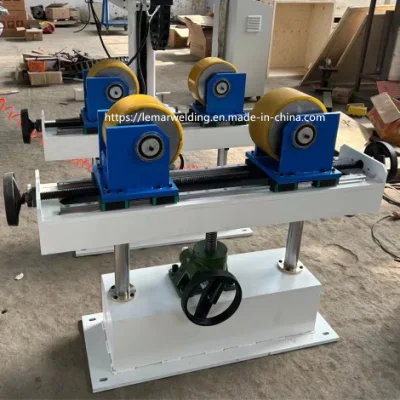

3ton Pipe Alignment Turning Rolls Vessel Fit up Rotator
3ton Pipe Alignment Turning Rolls Vessel Fit up Rotator
3ton Pipe Alignment Turning Rolls Vessel Fit up Rotator
How to choose the material of turning rollers on the welding rotator?
1. Polyurethane roller
Polyurethane is an emerging organic polymer material and has good oil resistance, toughness, wear resistance, and aging resistance. The polyurethane rollers for the vessel welding rotator produced by our factory are cast from imported polyurethane and have excellent tensile strength, The tear strength, wear resistance and other properties are 3-5 times higher than ordinary rubber.
  2. Steel-rubber combination roller
The steel-rubber combination has a large pressure-bearing capacity and the rubber wheels have a long service life. The main drive worm adopts ZC arc tooth cylindrical worm. The worm tooth surface has been quenched and ground. The load-bearing capacity is twice that of the general cylindrical worm. It has high efficiency and long service life. The machine base is equipped with a scale. The user can adjust the diameter of the cylinder according to the size of the cylinder. Adjust the distance between the two wheels of the pipe rotator.
Wuxi Lemar Machinery has been specializing in the production of welding rotator, welding manipulator and welding positioners for many years. It is a professional manufacturer. Please contact us for more information.


3ton Pipe Alignment Turning Rolls Vessel Fit up Rotator
3ton Pipe Alignment Turning Rolls Vessel Fit up Rotator
3ton Pipe Alignment Turning Rolls Vessel Fit up Rotator
3ton Pipe Alignment Turning Rolls Vessel Fit up Rotator
