40t Adjustable Pipe Alignment Rollers Fit up Welding Rotators

Get precise pipe alignment with our 40t adjustable pipe alignment rollers fit up welding rotators. Manufactured in our factory for superior quality.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
KTG-40T
Welding Turning Rolls Type
Adjustable
Condition
New
Model
Ktg-40
Max Loading Weight
40ton
Suitable Pipe Diameter
600-4200mm
Roller Linear Speed
6-60m/Min
Motor Power
2.2kw
Speed Mode
AC Variable Frequency Stepless Speed Regulation
Lead Time
10 Days
Wheel Diameter
440mm
Warranty
1 Year
Wheels Quantity
4 Wheels
Wheel Material
Rubber and Steel Wheel
Other Names
Tank Rollers/Tank Rolls and Turning Rolls
Exported to
Canada, USA, Russia, Brazil, South Africa etc
Roller Material
42CrMo Forged Steel Wheel
Adjustable Mode
Bolt Screw Welding Rotator
Transport Package
Wooden Box
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Production Capacity
3000PCS/Year

Packaging & Delivery

Package Size
270.00cm * 220.00cm * 55.00cm
Package Gross Weight
800.000kg

Product Description

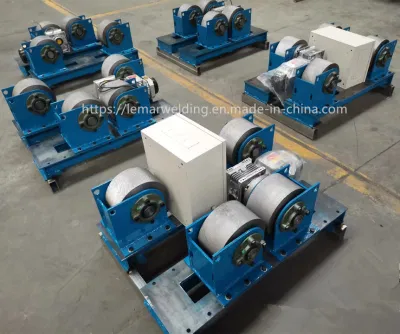

40T Adjustable Pipe Alignment Rollers fit up welding rotators

Vessel Turning Roller rotator can be used with manual welding as a device for testing and assembling cylindrical workpieces.
The use of welding roller frames can greatly improve the quality of welds, reduce labor intensity and improve work efficiency.

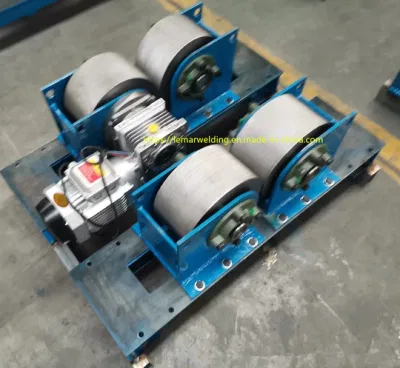

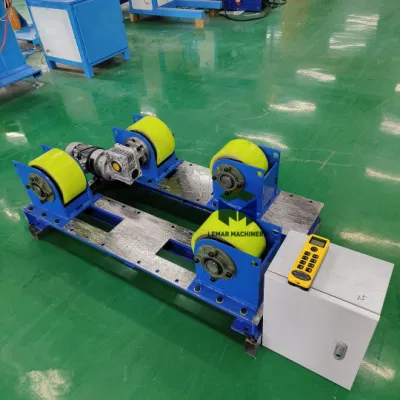

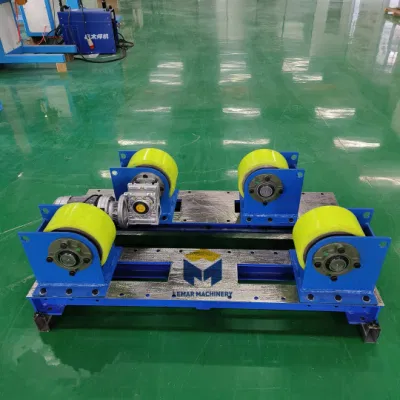

Adjustable welding roller stand consists of an active roller and a passive roller.
The active roller is driven by two motors respectively. Through the speed-regulating motor, the speed-regulating controller achieves stepless speed change through frequency conversion speed regulation or electromagnetic speed regulation. The distance between the rollers is adjusted through screw rods or screw steps to meet the welding requirements of workpieces of different specifications.
The pipeline roller rotator can meet the needs of various different weldings such as manual welding, automatic surfacing welding, and automatic submerged arc welding, as well as meet the needs of workpieces.

40t Adjustable Pipe Alignment Rollers Fit up Welding Rotators
40t Adjustable Pipe Alignment Rollers Fit up Welding Rotators
40t Adjustable Pipe Alignment Rollers Fit up Welding Rotators
40t Adjustable Pipe Alignment Rollers Fit up Welding Rotators
Specifications:
KTG-40 Adjustable turning welding rotators
1 Items Specifications
2 Name 40T Adjustable type welding rotator
3 Max loading weight 40T
4 Suitable for diameter φ(600-4200)mm
5 Drive and rotate capacity 40T
6 1,Rotator specification
7 Rotation drive capacity 40T
8 Rotary Drive Variable Frequency Motor Brands and Models INVERTEK,2*3 Kw Inverter motor
9 Brand and model of rotary drive reducer Jiangsu Kaibo
10 Linear speed of roller rotation 6-60m/min
11 Rotating wheel material 42CrMo Forged steel wheel
12 Voltage 380V 3P 50Hz
13 VFD brand Japanese
14 Remote control Wireless remote control (100m)
15  Remote control function Start and stop, forward and reverse, speed regulation, emergency stop

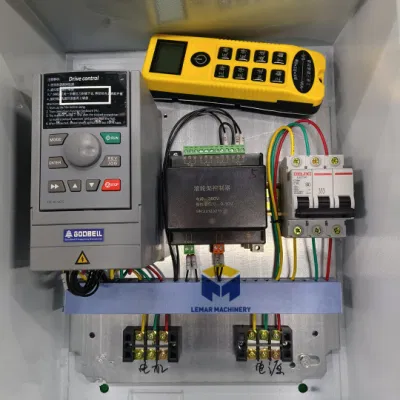

16 Electric control cabinet and electric control requirements The electric box is installed on the active end, the electric box and components have a complete protection circuit, and the control function panel of the roller frame
17 Provide electrical component brands Japanese
18 Protection level of electric control cabinet IP51
19 Bearing Wafangdian Bearing group
20 Sand blasting rust removal grade, paint dry film thickness Rust removal level reaches Sa2.0-2.5 level; 1 layer of zinc-rich primer and 2 layers of 75μ epoxy resin topcoat
21 Equipment paint color Blue (RAL5015) or customer specified color card number
22 Motor protection measures Protective shell, rotating mechanism gap protection
40t Adjustable Pipe Alignment Rollers Fit up Welding Rotators
40t Adjustable Pipe Alignment Rollers Fit up Welding Rotators
40t Adjustable Pipe Alignment Rollers Fit up Welding Rotators
40t Adjustable Pipe Alignment Rollers Fit up Welding Rotators
FAQ:
1. Does your business allow customized offers?
Yes.We have unique requirements.
Our research and development capabilities for machine tools are robust, and we have a wealth of knowledge.
As long as you have a specific number of needs, we would be happy to offer you specialized, highly efficient equipment.
2.What certification does the equipment in your organization have?
We have received both CE Certification and ISO9001 Quality System Approval.
3. Do you have an optional configuration price list?
We can't give you a price list because we have so many different setups and specs.
If there is a specific configuration in which you are interested, kindly contact our sales engineer.
4. Do you accept CIF prices at your business?
Yes,we can accept different prices such as FOB,CIF,C&F,DDP,DDU,EXW etc.
If you ever have a requirement like this, kindly contact us.
5. How much will it cost if your engineer travels to our nation to repair the machine and provide some training?
The biggest expenses are the price of round-trip airline tickets, food and housing, and visa fees.
Staff costs $100 USD per day per person; typically, a two person position.
However, it will rely on the installation and debugging of a significant piece of equipment or the entire line.
6.How long is the warranty?
Warranty lasts for 12 months.
