Basic Info.
Model NO.
ZZ1257N3527
Emission Standard
Euro 2
Tank Volume
＞30000L
Drive Wheel
8×4
Seats
≤5
Horsepower
351-450hp
Engine Capacity
＞8L
Storage
CEMENT
Tire Certification
ISO
Tire Design
Radial
Condition
New
Transport Package
Nude Packing
Specification
40cbm
Trademark
HOWO
Origin
Shandong
HS Code
87031090
Production Capacity
100 PCS/ Month
Product Description

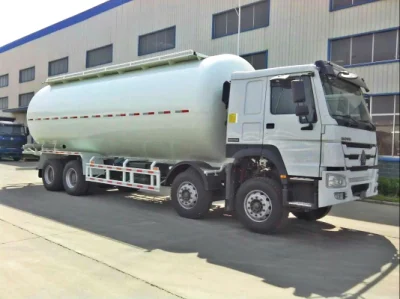

6X4 Bulk Feed Truck HOWO Bulk Cement Truck
Company information:
We're one professional manufacturer which refitting special truck and trailer in China, established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development. Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as dump truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We're one of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises. We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.
We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.
Product Description
Company information:
We're one professional manufacturer which refitting special truck and trailer in China, established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development. Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as dump truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We're one of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises. We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.
We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.
Product Description
Description of HOWO 6X4 Bulk cement truck:
1.Tanks using automatic longitudinal welding process, weld joints are firm and smooth.
2. It use straight-through type or Y type fluidized bed to optimize the external and internal structure of tank.Low gravity center, good stability,large volume.
3.Discharge time is short, with low ash rate.
4. Suitable for fly ash, cement, lime powder, powder ore, such as particle diameter not more than 0.1 mm dry powder material transportation and unloading.
5. Tanks and the accessories dealed with shot blast so it is strong adhesion, good corrosion resistance, uniform paint film,and it is able to withstand all kinds of bad environment.
1.Tanks using automatic longitudinal welding process, weld joints are firm and smooth.
2. It use straight-through type or Y type fluidized bed to optimize the external and internal structure of tank.Low gravity center, good stability,large volume.
3.Discharge time is short, with low ash rate.
4. Suitable for fly ash, cement, lime powder, powder ore, such as particle diameter not more than 0.1 mm dry powder material transportation and unloading.
5. Tanks and the accessories dealed with shot blast so it is strong adhesion, good corrosion resistance, uniform paint film,and it is able to withstand all kinds of bad environment.
bulk cement truck
Drive type | 6x4 | |
Dimensions | Max length(mm) | 9215 |
Max width(mm) | 2500 | |
Max height(mm) | 3250 | |
Wheel base(mm) | 4325+1350 | |
Engine | Brand | SINOTRUK(STEYR TECHNOLOGY) |
Model | WD615.87/ WD615.69 | |
Power (HP) | 290/ 336 | |
Max torque(N.m)/rpm | 1160/2200 | |
Displacement(L) | 9.726 | |
Emission standards | Euro II | |
Transmission | Brand | SINOTRUK |
Model | HW15710/ HW19712 | |
Control type | Manual | |
Gear shift | 10 Forward& 2 Reverse | |
Clutch | Type | Single plate,diaphragm spring |
Diameter(mm) | Φ 430 | |
Action | Mechanical type,hydraulic and pneumatic operation | |
Brakes | Type | Drum |
Service brake | dual-circuit compressed air brake | |
Park brake | Power spring brake acting on rear wheel | |
Auxiliary brake | Exhaust brake | |
Steering | Brand | ZF8098 |
Type | Integral circuiting ball power steering | |
Suspension | Front | 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
Rear | 12 leaf semi-elliptic springs,and bogie springs, and stabilizer | |
Axles | Front axle | HF7 7T front axle, drum brake |
Rear axle | ST16 16T strengthened axle | |
Tyre | Type | 12.00R20 radial-tire |
Fuel tank | Tank capacity | 350L |
Material | Iron | |
Electrics | Type | 24V |
Stater | 24V,5.4kw | |
Generator | 2.0kw (28V 70A) | |
Battery | 2x135Ah | |
Cabin | HW76 code cab, flat roof, one sleeper with A/C, | |
Weight | Kerb mass(kg) | 12785 |
GVW(kg) | 25000 | |
Body | Capability(CBM) | 24,30 |
Air compressor | WUHU brand | |
Storehouse | TWO | |
Charging hole | TWO | |
