a 1-Axis Spindle Box Welding Positioner with Quality Assurance Suitable for Industrial Welding Robot Systems Manufactured in Chinese Factories

Get high-quality 1-Axis Spindle Box Welding Positioner for industrial welding robot systems, manufactured in Chinese factories with quality assurance.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Company Profile
  • Certifications
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
AUT-SWP-Z-200
Welding Turning Rolls Type
Adjustable
Welding Tilter Type
Flexible Combination
Condition
New
Colors
Yellow and Blue
Services Available
Support Customized Colors, Specifications, Logos,
Rated Payload
200kg(Axis Radius≤r400mm)
Positioner Dimension(L*W*H)
1200mm*640mm*1050mm
Height of Gyration Center
830mm
Equipment Net Weight
About 200kg
Transport Package
Wodden Case
Specification
Wooden Case
Trademark
JINAN GUANSE
Origin
China
Production Capacity
2000

Product Description


Product Description
a 1-Axis Spindle Box Welding Positioner with Quality Assurance Suitable for Industrial Welding Robot Systems Manufactured in Chinese Factories
  Servo positioner is a specialized welding and cutting equipment for industrial robots, suitable for welding and cutting complex workpieces to achieve ideal machining positions and speeds. The rotary table of the displacement machine adopts a well-known foreign brand servo motor combined with a high-precision reducer, which has high rotary accuracy, accurate positioning, and strong load-bearing capacity. By configuring different servo motors (linkage and non linkage), remote operation of the displacement machine can be achieved through robot teaching aids or external operation boxes.
  The servo displacement machine mainly consists of a fixed base, a rotating spindle box, a welded frame, a servo motor and precision reducer, a conductive mechanism, a protective cover, and an electrical control system.
  The welded overall frame is made of high-quality steel and welded. After being returned for stress relief, it undergoes professional mechanical processing to ensure high precision and usage accuracy in key positions. The surface is sprayed with rust proof exterior paint, and the color can be customized according to customer requirements.
  Turn over to make the workpiece fixed on the workbench reach the required welding and assembly angle. The rotation of the workbench is controlled by a servo motor, which can achieve the ideal welding speed.

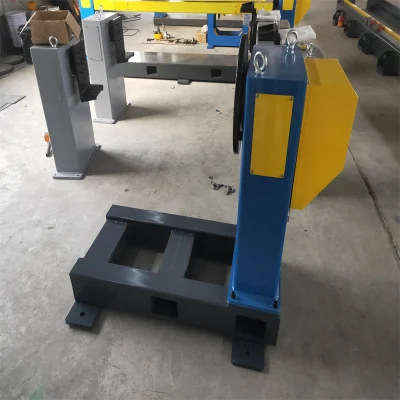

Detailed Photos
a 1-Axis Spindle Box Welding Positioner with Quality Assurance Suitable for Industrial Welding Robot Systems Manufactured in Chinese Factories
a 1-Axis Spindle Box Welding Positioner with Quality Assurance Suitable for Industrial Welding Robot Systems Manufactured in Chinese Factories
a 1-Axis Spindle Box Welding Positioner with Quality Assurance Suitable for Industrial Welding Robot Systems Manufactured in Chinese Factories
a 1-Axis Spindle Box Welding Positioner with Quality Assurance Suitable for Industrial Welding Robot Systems Manufactured in Chinese Factories



Product Parameters
Type Single Axis Spindle Positioner
Model  AUT-SWP-Z-200/ZK AUT-SWP-Z-500/ZK AUT-SWP-Z-1000/ZK
Rated payload 200kg(Axis radiusR400mm) 500kg(Axis radiusR500mm) 1000kg(Axis radiusR750mm)
Standard radius of gyration R600mm R600mm R800mm
Maximum load eccentricity 300mm 150mm 260mm
The length of clamping 650mm 350mm 500mm
Rated gyration angle  ±360° ±360° ±360°
Rated speed of gyration 70°/S 50°/S 50°/S
Repeat positioning accuracy ±0.06mm( At R=350mm) ±0.10mm( At R=500mm) ±0.14mm( At R=750mm)
Axis gyration disc size Φ360(ZK's hollow internal hole diameter Φ30mm) Φ390(ZK's hollow internal hole diameter Φ50mm) Φ390(ZK's hollow internal hole diameter Φ90mm)
Positioner dimension(L*W*H) 1200mm*640mm*1050mm 1200mm*640mm*1150mm 1200mm*780mm*1450mm
Height of gyration center  830mm 830mm 1050mm
Equipment net weight About 200kg About 260kg About 450kg

Company Profile
a 1-Axis Spindle Box Welding Positioner with Quality Assurance Suitable for Industrial Welding Robot Systems Manufactured in Chinese Factories
Jinan Guansen Automation Equipment Co., Ltd is located in Jinan, Shandong, China. As a high-tech enterprise, we focus on integrating research and development, design, production, and sales of various types of automation equipment. The company is committed to manufacturing professional industrial peripheral equipment and non -standard automation equipment. The products are widely used in construction machinery, locomotive vehicles, automobile manufacturing, ship heavy industry, petrochemical equipment, power engineering, coal machinery, heavy machinery and other industries.
Product Lineup
Robot peripheral supporting equipment
Standard servo welding positioner
Standard robot Linear rail
Robot integrated workstations and production lines for welding, cutting, handling, forging, casting, machining, painting, etc.
Peripheral safety protection smoke removal system and other supporting equipment.
Non-standard CNC welding machines, CNC cutting machines and other automatic welding cutting equipment.
The specifications of non-standard welding positioner and Linear rail can be customized .






Certifications
a 1-Axis Spindle Box Welding Positioner with Quality Assurance Suitable for Industrial Welding Robot Systems Manufactured in Chinese Factories
a 1-Axis Spindle Box Welding Positioner with Quality Assurance Suitable for Industrial Welding Robot Systems Manufactured in Chinese Factories
a 1-Axis Spindle Box Welding Positioner with Quality Assurance Suitable for Industrial Welding Robot Systems Manufactured in Chinese Factories



Packaging & Shipping
a 1-Axis Spindle Box Welding Positioner with Quality Assurance Suitable for Industrial Welding Robot Systems Manufactured in Chinese Factories
a 1-Axis Spindle Box Welding Positioner with Quality Assurance Suitable for Industrial Welding Robot Systems Manufactured in Chinese Factories
a 1-Axis Spindle Box Welding Positioner with Quality Assurance Suitable for Industrial Welding Robot Systems Manufactured in Chinese Factories



FAQ

1. Q: Is your company a manufacturer?
A: Yes, we have our own factory in Jining City and our own foreign trade company in Jinan City. We are a company that integrates factory and foreign trade.
2. Q: What is the quality of the company's products?
A: The company's products have been produced in China for over 10 years and have cooperative relationships with multiple trading companies. Our products are exported to various parts of the world.
3. Q: Does the product support personalized customization?
A: Products can be personalized and customized according to the actual needs of customers. Customizable content includes: specifications, colors, logos, etc.
4. Q: What are the transportation and packaging methods? A: We will use wooden boxes for packaging, and the transportation method can be negotiated and arranged for shipment.
Accepted Delivery Terms: FOB, EXW
5.Q: What after-sales service can you provide?
A: We provide complete technical support and a one-year warranty.
