Adjustable Welding Rotator, Standard Welding Turning Rolls Pipe Welding Equipment

Get top-quality 'Adjustable Welding Rotator' and 'Standard Welding Turning Rolls Pipe Welding Equipment' from our factory. Contact us for welding solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HGK-200
Wheel Width
300mm
Vessel Diameter
800-5000mm
Wheel Velocity
6-60m/H
Power of Motor
2*4kw
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Load 200, 000kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month

Product Description

 Adjustable Welding Rotator, Standard Welding Turning Rolls Pipe Welding Equipment

Quickly Details:
Type:Conventional Pipe-up Growing Line/Tank Fit up Rolls
Brand:MISA
Condition:100% brand new
Model number:HGK
Capacity:5Ton - 1000Ton
Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)

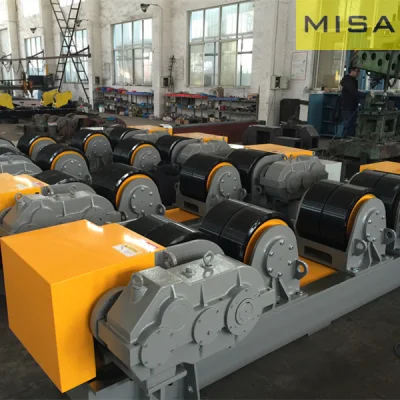

Product Photo:

Adjustable Welding Rotator, Standard Welding Turning Rolls Pipe Welding Equipment

Product Parameter:
Type Max loading (kg) Vessel diameter(mm) Dia. and width of the wheel(mm) Roller linear velocity(m/h)







6-60











Power of motor(kw)
Rubber rollers Metal rollers
HGKS-5 5,000 Φ250-2300 Φ250×100 2×Φ240×20 2X0.37
HGKS-10 10,000 Φ320-2800 Φ300×120 2×Φ290×25 2X0.55
HGKS-20 20,000 Φ500-3500 Φ350×120 2×Φ340×30 2X0.75
HGKS-40 40,000 Φ600-4200 Φ400×120 2×Φ390×40 2X1.5
HGKS-60 60,000 Φ750-4800 Φ450×120 2×Φ440×50 2X2.2
HGKS-80 80,000 Φ850-5000 Φ500×120 2×Φ490×60 2X3
HGKS-100 100,000 Φ1000-5500 Φ500×120 2×Φ490×80 2X3
HGK-S150 150,000 Φ1000-6000 / Φ620×220 2X4
HGKS-250 250,000 Φ1800-7500 / Φ660×260 2X5.5
HGKS-500 500,000 Φ1800-8000 / Φ750×400 2X7.5

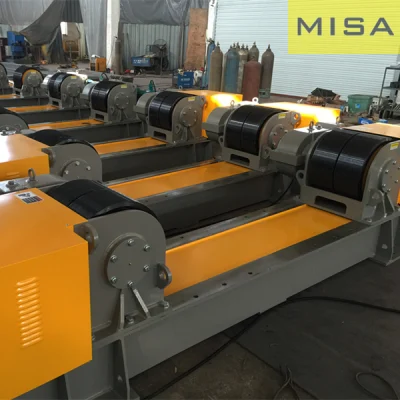

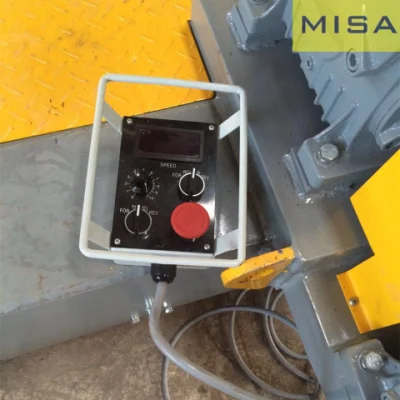

Detail Photo:

Adjustable Welding Rotator, Standard Welding Turning Rolls Pipe Welding Equipment

Adjustable Welding Rotator, Standard Welding Turning Rolls Pipe Welding Equipment

Product Description:
Welding rotators are similar to positioners, in that it's a mechanical means to rotate cylindrical vessels. They minimise handling, increase efficiency, and dramatically improve the quality of workmanship from welders of all skill levels. MISA can supply conventional and self-aligning rotators to suit various sizes of weldments across a variety of sectors. Any steelworks with cylindrical vessels, be it small diameter piping to large industrial cylindrical vessels for windtower production, a rotator will be beneficial, sometimes a necessity. If the weldment is cylindrical, a rotator will make a huge difference to most welding processes including, SAW, TIG, MIG and ARC.

Application:
1. Pressure vessels.
2. Pipe manufacturing industries
3. Wind power fabrication
4. Cylindrical tank's welding, polishing, rubber lining, assembling ,etc
5. Chemical & fuel storage tank fabrication
6. Any heavy cylindrical job

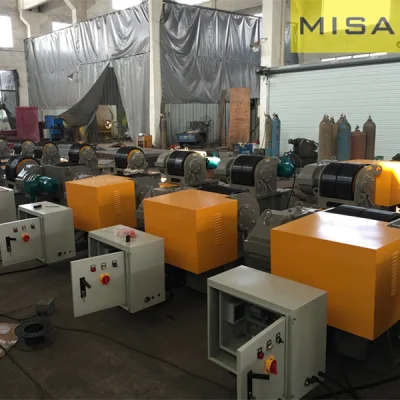

Packing and Shipment:
Adjustable Welding Rotator, Standard Welding Turning Rolls Pipe Welding Equipment

Kindly Noted:

1. Model from 5T-100T, others please let us know.

2. One set of welding turning rolls include one drive & one idler, also customer can choose other combinations.

3. Voltage standard is 380V, 50HZ, 3PH. Other voltage please kindly let us know.

4. Control panel is wired control, or you can choose wireless control.

5. If need more special requirements ,we'll study with our engineer.

6.The revolve adopt A.C. Inverter motor driving.

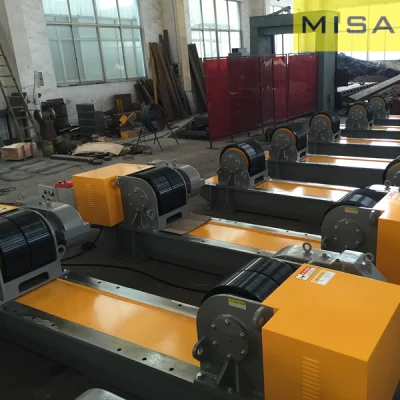

Related Products:
Adjustable Welding Rotator, Standard Welding Turning Rolls Pipe Welding Equipment

Why always MISA?

360°guarantee makes ordering risk free.

20 years welding machine manufacture experiences.

one-stop service of welding.

OEM service.

Quickly feedback for your problems.
