Basic Info.
Model NO.
D16 D28
Material
Steel Welding or Casting Welding
Usage
Welding
Weight
500-3200kg
Delivery Time
10 Days-20days
Measuring Range
0-99999.9m
Color
Grey
Transport Package
Wooden Package
Specification
Can be customized
Trademark
huawei
Origin
China
Production Capacity
100 Piece/Month
Product Description

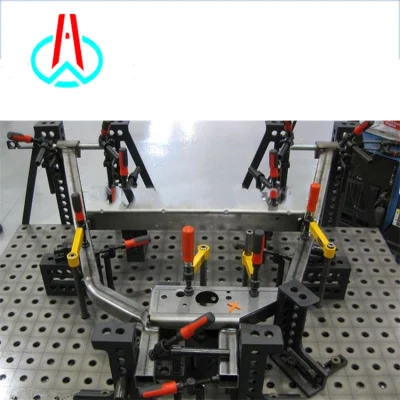

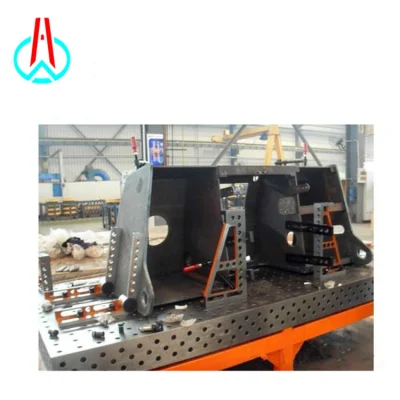

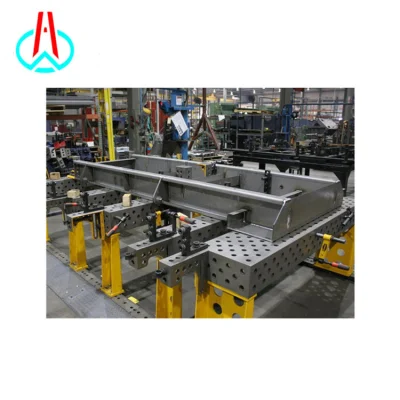

Assembly Steel plate welding automatic rotating 3D table D16 / D28 for welding assembling

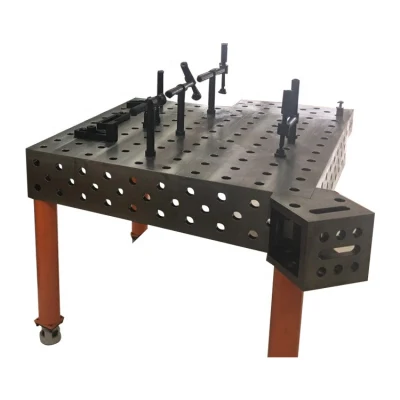

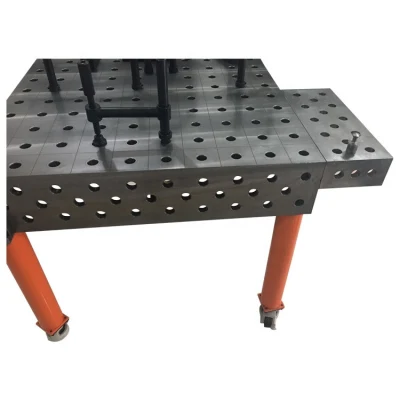

3D casting welding table The high strength HT300 cast iron 3D welding table can be changed according to the product changes.
A set of fixtures can complete several products or dozens of product. The platform greatly speed up
the product development, trial process and save a lot of manpower, material and financial resources
(environment and low carbon products).
| D28 multi-function welding platform 3D standard specification | |||
| L(mm) | W(mm) | H(mm) | Material |
| 2000 | 1000 | 200 | casting |
| 2400 | 1200 | 200 | casting |
| 3000 | 1500 | 200 | casting |
| 4000 | 2000 | 200 | casting |
| 5000 | 2500 | 200 | casting |
| 6000 | 3000 | 200 | casting |
| 8000 | 3500 | 400 | casting |
| 1000 | 1000 | 200 | steel |
| 1200 | 1200 | 200 | steel |
| 1500 | 1000 | 200 | steel |
| 1500 | 1500 | 200 | steel |
| 2000 | 1000 | 200 | steel |
| 2400 | 1200 | 200 | steel |
| 3000 | 1500 | 200 | steel |
| 4000 | 2000 | 200 | steel |
| 5000 | 2500 | 200 | steel |
| 6000 | 3000 | 200 | steel |
| 8000 | 3500 | 400 | steel |
| D16 multi-function welding platform 3D standard specification | |||
| L(mm) | W(mm) | H(mm) | Material |
| 1000 | 500 | 100 | steel |
| 1000 | 1000 | 100 | steel |
| 1200 | 1200 | 100 | steel |
| 1500 | 1000 | 100 | steel |
| 1500 | 1500 | 100 | steel |
| 2000 | 1000 | 100 | steel |
| 2400 | 1200 | 100 | steel |
