Automatic Butt/Corner Seam Welding Machine/Tank Construction/Tank Corner/Fillet Plate Construction Machinery

Tank Corner Seam Welding Machine - we are a leading factory offering high-quality machinery for tank construction. Explore our range now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Major Component
  • Product Parameters
  • Detailed Photos
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
MLTW-P/J
Keywords
Tank Butt Corner Welding Machine
Transport Package
Export
Specification
Customized
Trademark
WINCOO
Origin
China
HS Code
851531900
Production Capacity
300 Sets/Year

Product Description

Tank Butt Corner Welding Machine

Product Description

For the tank welding machine, we has been sold more than 20 countries in more than 1000 projects sites.We have confidence for the machine quality and after sale service. We can provide single side, double side crude oil, LNG tank, fuel tank, water tank horizontal seam, vertical seam and bottom plate/corner welding machine.In Middle East, we have sold to UAE, Saudi Arabia, Oman, Bahrain, Kuwait. In Africa, we have sold machine to Cameron, Sudan, Egypt, Senegal, Nigeria,Zambia,Ethiopia,Senegal,etc. We have sold to Vietnam,Indonesia,Malaysia,Philippines,Singapore, Mexico,Mongolia, Russia,etc.
Automatic Butt/Corner Seam Welding Machine/Tank Construction/Tank Corner/Fillet Plate Construction Machinery

Major Component

Automatic Submerged Arc Bottom welder TRACTOR, applicable voltage 380V + 10% / 3PH / 50Hz, a single set of machine includes the following components:
No
Equipment composition
Manufacturer
Qty
1
Welding Power Source
POWERPLUS 1000HD
LINCOLN China
1 set
2
Automatic Welding Trolley
Welding Trolley
WINCOO
1 set
3
Track
1.8 Meters
WINCOO
1 set
4
Welding And Control Cables
Welding Cable 150mm 2 X 30m
Chinese premium brand
1 set
Control Cable 1.5 Mm 2 X 9p X 30m
Welding Ground Wire 150mm 2 X 5m
5
Safe Deposit Box
Power Distribution And Welding Power Storage Cabin
WINCOO
1 set
6
Supporting Special Tools
Toolbox
WINCOO
1 set
7
Accessories Along With Machine
See Attached Accessories List
WINCOO
1 set



Product Parameters

Scope of application
1
Adaptable material
Carbon steel, high strength steel, stainless steel, etc
2
Applicable plate thickness
More than 6mm
3
Applicable groove types
I-shaped groove, v-shaped groove, k-shaped groove, lap groove
4
Adaptation position
Flat welding, lap welding
5
Applicable welding wire
Φ2.0-Φ5.0mm diameter welding wire, Φ1.0-Φ1.2mm × 1.0mm scrap wire submerged arc welding
6
Adapt to the welding process
Submerged arc automatic welding, submerged arc welding with scrap wire
7
After the bottom plate of the storage tank is hand-welded or Gas-shielded, the submerged arc welding with added scrap wire is used for one-time welding (10-12 mm)
I. Automatic welding trolley WINCOO
1
Welding torch deflection angle
45 °
2
Wire reel capacity
25kg
3
Wire diameter
2.4-5.0 mm
4
Head lift height adjustment
± 50 mm
5
Wire feed speed range
0.3-3 m / min
6
Travelling speed
0.2-1.5 m / min
II. Operation Panel
1
Complete all the control of the welding machine
Including power supply and control, adjustment
2
Welding control cabinet
With two sets of control functions (cc / cv) and multiple features
Welding current range
0-1000A
Welding start and stop control buttons
Welding current potentiometer adjustment (including wire feed speed adjustment)
Welding voltage potentiometer adjustment
Ammeter
0-1000A
Voltmeter
0-60V
Travelling speed potentiometer setting
Travelling direction switch: left, stop, right
Travelling mode switch
Independent Travelling, welding continuous Travelling
III. Supporting welding power supply
1
Welding power supply
LINCOLN China POWERPLUS 1000HD
2
Primary voltage
380V / 3 phase ± 10%, 50 / 60HZ
3
Rated current
DC1000A
4
Temporary load rate
100%
5
External characteristics
CC / CV (falling characteristics / constant voltage characteristics)
6
Output current
200-1200A
7
Output voltage
1000A / 44V
IV. Safe deposit box
1
Completely enclosed power supply distribution control cabinet and welding power storage box, that is, safe box
2
The closed storage box is made of section steel and steel plate, which is suitable for on-site rainproof, anti-theft and long-distance transportation

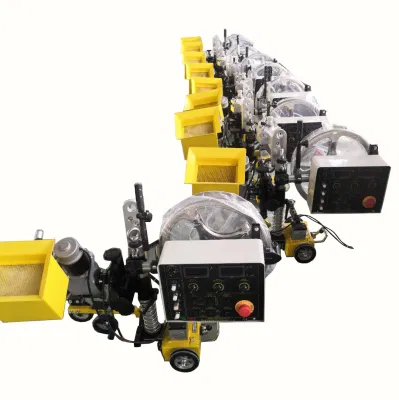

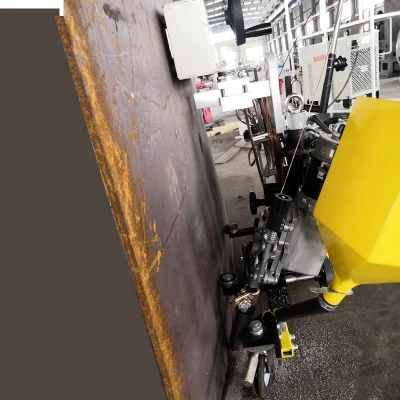

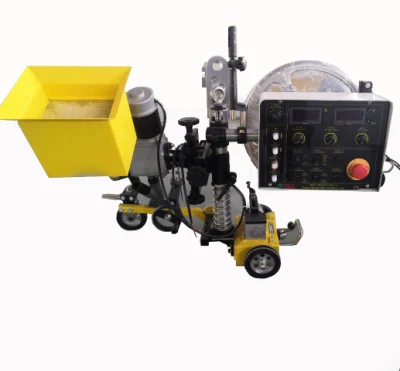

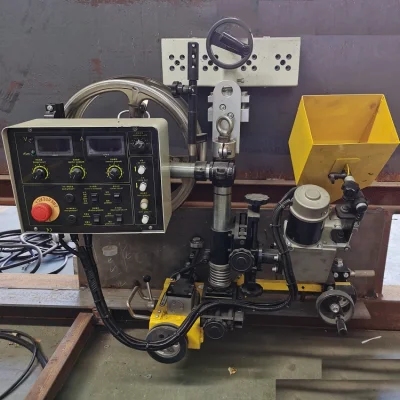

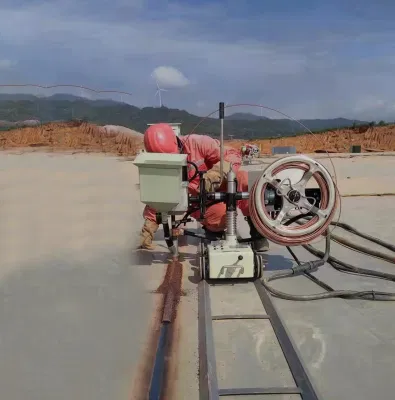

Detailed Photos

Automatic Butt/Corner Seam Welding Machine/Tank Construction/Tank Corner/Fillet Plate Construction Machinery
Automatic Butt/Corner Seam Welding Machine/Tank Construction/Tank Corner/Fillet Plate Construction Machinery
Automatic Butt/Corner Seam Welding Machine/Tank Construction/Tank Corner/Fillet Plate Construction Machinery
Automatic Butt/Corner Seam Welding Machine/Tank Construction/Tank Corner/Fillet Plate Construction Machinery



Automatic Butt/Corner Seam Welding Machine/Tank Construction/Tank Corner/Fillet Plate Construction Machinery

Company Profile

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.

We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.

FAQ

1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.
2. We can provide all technical documents and advices to support you for construction procedure clearifications
3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank
4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.
5. We can provide site people training service, and operation service or manpower service or as a subcontractor.
