Automatic Sheet Rolling Machine, Rolling Manual Pipe Bending Machine, Plate Bending Roller

Get high-quality Automatic Sheet Rolling Machine, Rolling Manual Pipe Bending Machine, Plate Bending Roller at our factory. Browse our products now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Packaging & Shipping
  • Our Advantages
  • Main Features
  • FAQ
  • Rolling Process
Overview

Basic Info.

Model NO.
W12-30x2500
Warranty
24 Months
Customized
Customized
Advantage
Easy Operation
Condition
New
Rolls Number
4
Driving Rolls
2
Rolls Material
42CrMo
Rolls
Induction Hardened
Side Rolls
Swing Arm Movement
Drop-End Open
Hydraulic
Control Desk
Independent Mobile
Digital Readouts
Touch Screen
Cone Rolling
Optional
Side Supports
Hydraulic Optional
Central Supports
Hydraulic Optional
Loading and Unloading Systems
Automatic Optional
Feeding Table
Motorized Optional
Oil Cooler
Optional
Rolls Polish
Optional
Transport Package
Standard Export Package
Specification
30x2500mm
Origin
China
HS Code
8462299000
Production Capacity
300 Sets / Year

Product Description

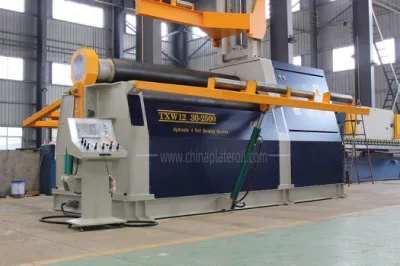

Automatic Sheet Rolling Machine, Rolling Manual Pipe Bending Machine


Product Description


This four roll plate bending rolls are recognized worldwide as the fastest, safest, most precise and easy to use plate roll available in the all range. This is a fully hydraulic 4-roll bending machine with pre-bending. Rolls length up to 6.000mm, plate thickness up to 150 mm





This Advanced Design Has The Following Benefits Such As:

(1) Plate is introduced horizontally (and not tilted as on the three roll double pinch)

(2) Plate is squared instantly against the back roll (reducing risk of a mis-matched end condition of the part)

(3) Requires space only on one side of the machine, where the plate is introduced to the machine

(4) Greatly reduced flat-end (due to better pre-bending) thanks to the clamping roll that can take the edge to the precise tangent points of the top and bottom rolls

(5) It is the fastest machine to roll a can, as it would require only one position for each side bending roll

(6) The entire cylinder can be finished in only one pass (within a suitable capacity), including pre-bending of the edges

* No need to pre-bend both ends before starting to roll the entire cylinder, as required with a 3 roll

* No need to remove, turn and re-insert the plate as on a 3 roll single pinch

(7) The four roll could be even 50-80% faster and more productive than any style three roll

(8) The most suitable for CNC operation, as the plate is under a better control, clamped between the top and bottom rolls, until the part is finished







The Four Roll Design Is Recommend For Clients Who:

1. Wish to operate through CNC, with less dependence on operator skills

2. Look for more steady quality of the rolled products.

3. Look for high productivity, and increased profits.

4. Require good accuracy and quality improvements.

5. Need handling equipment for larger plates, who are also concerned for production or safety reasons.

6. Are new to plate rolling, as it is the easiest plate roll to operate.


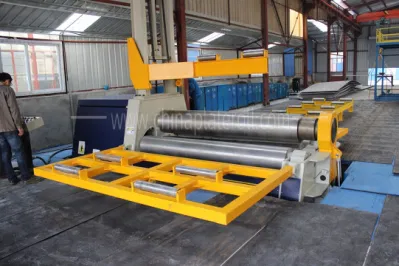

Automatic Sheet Rolling Machine, Rolling Manual Pipe Bending Machine, Plate Bending Roller


Product Parameters



MODEL W12-30x2500
Number of rolls 4
Maximum width of bending plate 2500mm
The length of working roller 2600mm
Maximum thickness of bending plate 30mm
Maximum thickness of pre-bending 25mm
Top roll diameter Ф410mm
Bottom roll diameter Ф380mm
Side rolls diameter Ф350mm
Yield strength of plate 245 Mpa
Smallest possible diameter 900mm
Plate Bending Speed 4m/min
Motor Power 25kw
Weight 19000kgs
Dimension 6000x2200x2400mm
Voltage and frequency 380V, 50HZ or customer request
Color White + Red or customer request
Remark: We can manufacture machine according to customer special requests.





Packaging & Shipping


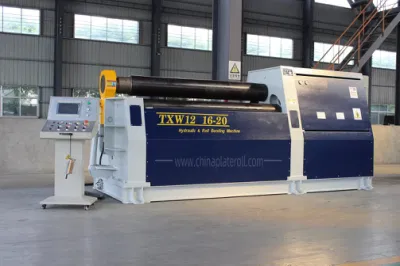

Automatic Sheet Rolling Machine, Rolling Manual Pipe Bending Machine, Plate Bending Roller

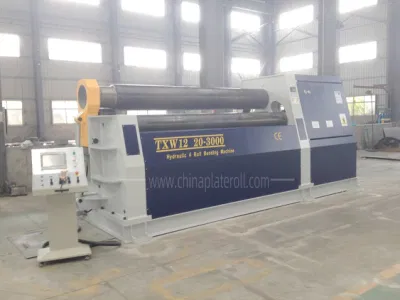

Automatic Sheet Rolling Machine, Rolling Manual Pipe Bending Machine, Plate Bending Roller

Automatic Sheet Rolling Machine, Rolling Manual Pipe Bending Machine, Plate Bending Roller

Automatic Sheet Rolling Machine, Rolling Manual Pipe Bending Machine, Plate Bending Roller


Our Advantages



Automatic Sheet Rolling Machine, Rolling Manual Pipe Bending Machine, Plate Bending Roller



Main Features

1. Extremely robust structure machined with CNC control machines
2. Two hydraulic motors coupled to planetary gear units for the rotation of the two central rolls
3. Hardened rolls / Hardened and polished rolls
4. Separate control desk on wheels
5. Hydraulic opening of shoulder by control desk
6. Hydraulic inclination of lateral rolls for conical bending directly from control desk
7. Numerical control for automatic production
8. Movements of rolls on swing guides to reduce flat part
9. It can be used to roll tubes, tube segments, rounded boxes, ovals or other shapes.
10. Rolls rotation on high resistance selfaligning bearings
11. Rolls Cambering: know how variable cambering to avoid reel and barrel effect to increase bending performance and precision



FAQ


(1) How long is the service life of your product?

It depend on the worker skills and experience and working hours every day, if do normal maintenence for the rolling machine under instruction, its life can upto 10 years. and we need to see the working plan every day, if working 12 hours even more, that will effect the service life.



(2) What are the specific categories of your products?

We have main 3 kinds of roll bending machine, Mechanical 3 roller, hydraulic 3 roller with prebending and hydraulic 4 roller with pre bending.



(3) What are the specifications and styles of existing products?

We have light and heavy types rolling machine, thickness from 6-150mm, width 1000-12000mm, and we can make special machine as per customer special request, for example, smaller rolling diameter, special application like oil pipe, wind tower, loader etc.





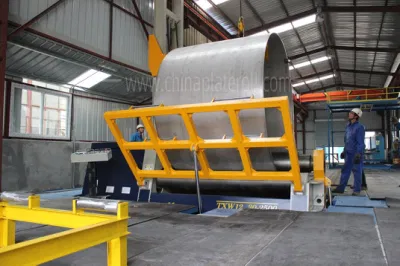

Rolling Process
