Automatic Welding Manipulator, Vertical Stroke 2m, Column and Boom, Welding Equipment

Product Name: Automatic Welding Manipulator with 2m Vertical Stroke SEO Description: Our factory specializes in manufacturing high-quality automatic welding manipulators with a 2m vertical stroke. Find the best column and boom welding equipment here.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
LH 2020
Elevation Speed
0.3m/Min
Traverse Speed
0.12-1.2m/Min
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Vertical Stroke 2M
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month

Product Description

Automatic Welding Manipulator, Vertical Stroke 2M,  Column And Boom, Welding Equipment

Quick Details:
Type:Welding Manipulator/ Welding Column And Boom
Condition:100% brand new
Place of origin:Wuxi China(Mainland)
Brand:MISA
Usage:Circular Welding Seam
Voltage:110V-600V
Dimensions and weight:According to the model


Specifications:
Model Boom Column Traveking cart Power KW
Vertical stroke(A)m Horizontal stroker(B)m Elevation speed m/min Traverse speed m/min Max load at extremity kg Total height(C)m Dimensions
(D)×(E)×H m
Rail c to c(F)mm
LH1515 1.5 1.5 0.3 0.12~1.2 100 2.9 1.25×1.2×0.2 1052 0.91
LH2020 2.0 2.0 0.3 100 3.4 1.25×1.2×0.2 1052 0.91
LH3030 3.0 3.0 1.0 200 5.5 2.4×1.9×0.4 1600 2.75
LH3040 3.0 4.0 1.0 200 5.5 2.4×1.9×0.4 1600 2.75
LH4040 4.0 4.0 1.0 200 6.5 2.4×1.9×0.4 1600 2.75
LH4050 4.0 5.0 1.0 200 6.5 2.4×1.9×0.4 1600 2.75
LH5050 5.0 5.0 0.9 300 7.8 2.6×2.1×0.5 1798 3.5
LH5060 5.0 6.0 0.9 300 7.8 2.6×2.1×0.5 1798 3..5
LH6060 6.0 6.0 0.9 300 9.7 2.6×2.1×0.5 1798 3.5

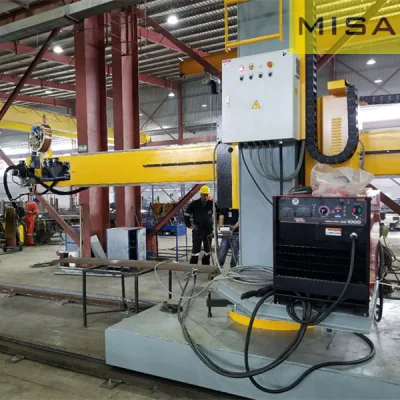

Product Photo:
Automatic Welding Manipulator, Vertical Stroke 2m, Column and Boom, Welding Equipment

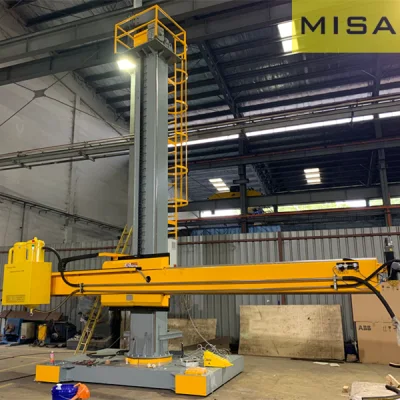

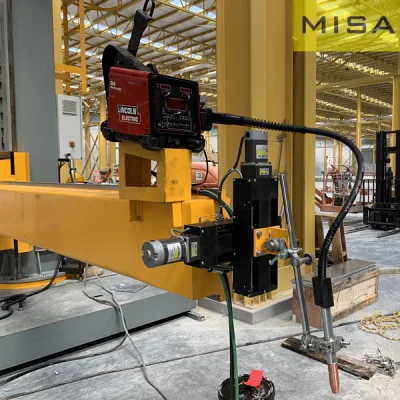

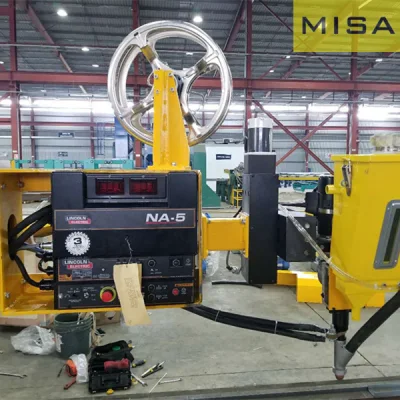

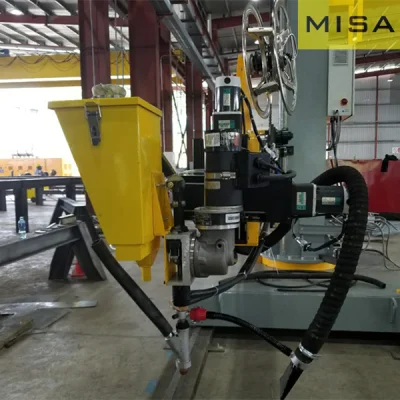

Detailed Photo:
Automatic Welding Manipulator, Vertical Stroke 2m, Column and Boom, Welding Equipment
Automatic Welding Manipulator, Vertical Stroke 2m, Column and Boom, Welding Equipment


Product description:
Pipe welding manipulator is the automatic welding equipment composed together with welding power. It can be used together with welding rotator or welding positioner, and widely used in industries as boiler, pressure vessel, petro-chemical machinery for welding of inner and outer longitudinal seams and circumferential seams. It features in advanced structure complete functioneasy operation, which ensures improving of welding quality.


Kindly Noted:
1. Model from LH1515-LH8080, please confirmed before you order.
2. Three structure of the column and boom: Stationary ; Stationary and revolve ; Moving and revolve , Please confirmed before you order.
3. Voltage standard is 380V , 50HZ , 3PH. We can customized other voltage
4. We can design that the electric box control, the manipulator and rotator together
5. With cross turning for the welding head.
6. We could equip Welding machine(SAW, TIG, MIG) and flux recovery machine.


Packing and Shipment:

Automatic Welding Manipulator, Vertical Stroke 2m, Column and Boom, Welding Equipment
Related Products:
Automatic Welding Manipulator, Vertical Stroke 2m, Column and Boom, Welding Equipment


Brand using:
1. Inverter is made in USA Danfoss / Taiwan Delta /Japan Yaskawa
2. Motor Brand is UK Invertek /Taiwan Qinwei / Siemens
3. Element is made by Schneider /Siemens/Fuji
4. Reducer is made by Kaibo/Guomao
5. Bearing is made by NTN / Harbin


What can we do for you:
1. Give you high quality products.
2. Give you five-star price.
3. Give you suitable recommendation.
4. Give you good after-service.
5. Give you professional technical guide.
