Boom and Column of Girth Seam MIG Mag Saw Welding Welding Manipulator, for Chemical Machinery, Pressure Vessels, Shipbuilding

Introducing our Boom and Column of Girth Seam MIG Mag Saw Welding Welding Manipulator for Chemical Machinery, Pressure Vessels, Shipbuilding. We are a factory specializing in welding equipment for various industries.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
WM3030 WM8080
Welding Turning Rolls Type
Self-Adjusting
Welding Tilter Type
Flexible Combination
Condition
New
Size
Wm3030
Head
Cross Slide
Annex
Laser Tractor ,Weld Camera
Transport Package
Nude
Trademark
DESAN
Origin
China
HS Code
84688000
Production Capacity
1000

Product Description

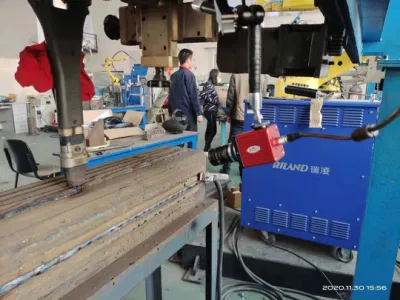

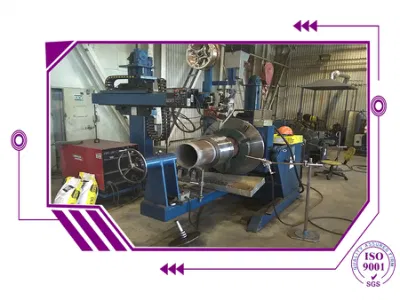

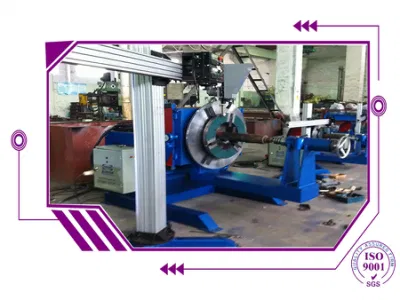

     For all arc welding processes, it is important that the welding head be rigidly mounted over the part to be welded to obtain the highest quality weld results. Any vibration or instability of the weld head mounting will have an effect upon the arc length and produce inferior results. Welding manipulator is used when the weld head has to be moved to a position relative to the work piece. Welding manipulator provide the perfect solution as the boom can be lifted and lowered on the column and can be extended or retracted as required, The ends of  boom are machined to carry a welding head.
This machine and welder composed of auto welding mechanical equipment. It can use with welding rotator, widely applied to industries such as boiler, pressure vessel, petroleum, chemical industry and mechanism.
+ Structure : stationary, stationary and revolve , moving and revolve type.
+ Cross section of boom and column are rectangular-section beams, with double-rail, welded into shape,stress-relieved and mechanical machined finely, ensuring higher precision;
+ Drooping of boom along horizontal travel is 2mm/m.
+ Boom lifting device including ratchet-type anti-dripping unit on the column, safe and reliable to prevent chains from incidental broken.
+ Guide roller is eccentric structure, decrease clearance between roller and rail surface, ensuring smooth and no shivering boom travel.
+ Column revolve unit has motor -driven and manual drive type.
+ Control box includes control box and pendant , interface with positioner and rotator also prepared







Boom and Column of Girth Seam MIG Mag Saw Welding Welding Manipulator, for Chemical Machinery, Pressure Vessels, Shipbuilding
Model Boom Column Traveling cart Power ++Package
(A) m
Vertical stroke
(B) m
Horizontal stroke
m/min
Elevation speed
m/min
Traverse speed
Max load  at extremity(kg) Rotation angle (±180º) (C)
Total height (m)
(D)*(E) *H Dimensions(m) (F)
Rail c to c(mm)
speed m/min KW Dim.(B&C)L*W*H (m) Gross weight (tons)
WM1515 1.5 1.5 0.3 0.12-1.20(traveling precision speed ±2%) 100 Man. 2.9 1.25*1.2*0.2 1052 Man. Or 1.0 0.91 3.0*0.5*0.7 1.0
WM2020 2.0 2.0 0.3 100 3.4 1.25*1.2*0.2 1052 0.91 3.2*0.6*0.7 1.5
WM3030 3.0 3.0 1.0 200 manual or motorized

5.5 2.4*1.9*0.4 1600 1.5 m/min  or custom built 2.75 5.4*1.2*1.1 4.6
WM3040 3.0 4.0 1.0 200 5.5 2.4*1.9*0.4 1600 2.75 6.0*1.2*1.1 5.1
WM4040 4.0 4.0 1.0 200 6.5 2.4*1.9*0.4 1600 2.75 6.5*1.3*0.9 5.5
WM4050 4.0 5.0 1.0 200 6.5 2.4*1.9*0.4 1600 2.75 7.0*1.3*0.9 6.0
WM5050 5.0 5.0 0.9 300 7.8 2.6*2.1*0.5 1798 3.5 7.8*1.5*1.0 6.5
WM5060 5.0 6.0 0.9 300 7.8 2.6*2.1*0.5 1798 3.5 8.3*1.5*1.0 7.0
WM6060 6.0 6.0 0.9 300 9.7 2.6*2.1*0.5 1798 3.5 9.8*1.5*1.0 7.5
WM7060 7.0 6.0 0.9 300 10.7 2.8*2.3*0.5 1998 4.25 10.8*1.5*1.0 8.5
WM8060 8.0 6.0 0.9 300 11.7 2.8*2.3*0.5 1998 4.25 11.8*1.7*1.2 10.0
WM8010 8.0 10.0 0.9 300 11.7 3.2*2.4*0.5 2200 5.0 11.8*1.7*1.2 12.0


Notes:
a) Column motorized rotation: included only WM 3030 and above
b) Trolley motorized with constant speed: included
c) Remote control box with 6-12 m span: included
d) Manual welding head cross slide: included
e) Boom cable organizer: export product included
f) Boom anti-fall safety device on WM 3030 and above: included
g) Trolley anti-fall safety device: included
h) Power source platform on trolley: included
i) Shot blasted frame at SA 2 ½: included
j) Custom built welding manipulators available
k) CE mark only under customer request
l) Manual revolve then locked by screw
m) The information contained in this brochure is intended to be
accurate. However the manufacturer retain the rights to make
changes in design which may not be include
Standard package includes
  Welding Manipulator and traveling cart

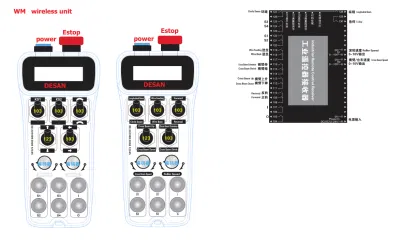

  Remote control box adjust: i) Vertical and horizontal boom
movement; ii) Trolley motion
  Operation manual
  One year warranty
Optional
• Flux recovery unit

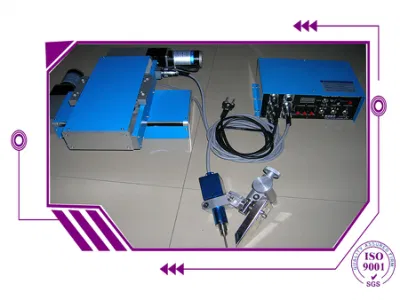

• Electric welding head cross slide
• Trolley cable organizer
• Rail track for trolley
• Variable speed on traveling cart from 0.12 up to 1.20 m/minute
• Work platform and operator's seat only in WM 5050 and larger
• Seam tracker
• Seam monitor system
• Welding oscillator
• Arc length control
• drive by linear ball bearing guide rail
