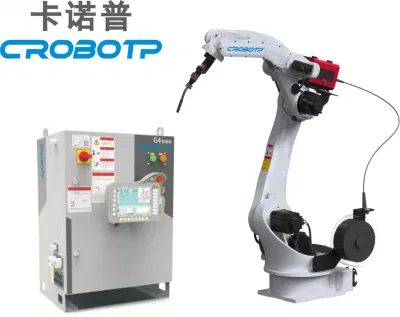

China Crobotp Export Package Manipulator 6 Axis for Application Industrial Welding Robot Robotic Arm in

Experience the precision and efficiency of our China Crobotp Export Package Manipulator 6 Axis for Industrial Welding. Our factory produces the highest quality robotic arms for your welding needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Functional Features
  • Product Specification
  • Application Features
  • Application Photos
  • Company Profile
  • Product List
  • Our Factory
  • Exhibitions
Overview

Basic Info.

Model NO.
CRP-RH18-20-W
Payload
20kg
Robot Body Weight
285kg
Axis
6 Axis
Control System
Crp Controller
Transport Package
Export Package
Trademark
CROBOTP
Origin
China

Product Description



Functional Features


CRP-RH18-20-W welding robot has below functional features:
1)-The arm span is nearly 1.8 meters. The design is highly compact and can be flexibly installed on the ground or upside down.
2)-With large working space, fast running speed and high repeated positioning accuracy, it is suitable for wide range of welding applications.
3)-The safety emergency stop board independent of the control system is equipped with, and the safety relay circuit is adopted to provide double-circuit emergency stop to ensure the reliability of emergency stop.
4)-The robot body adopts highly flexible special cable.
5)-Built-in three-phase transformer makes 380V and 220V isolated to help the power supply more stable.Built-in three-phase filter can effectively improve the performance of EMC and EMI.
6)-The robot body is with dual-circuit gas pipe to meet the welding demand.
7)-The inner diameter of 6-axis middle hole is 44mm, it can meet the installation requirements of water-cooling torch and bellows torch.
8)-Highly flexible welding cable is built-in.

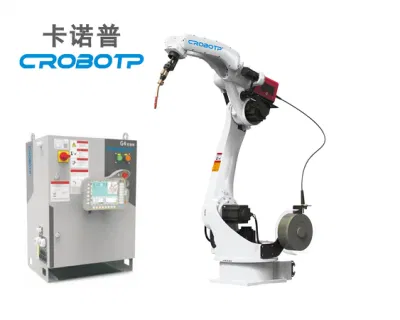

China Crobotp Export Package Manipulator 6 Axis for Application Industrial Welding Robot Robotic Arm in


Product Specification


Model CRP-RH18-20-W
Arm form  6 axis Vertical multiple joints
Degree of freedom 6 axis
Maximum payload 20 KG
Repeated positioning accuracy ±0.08mm
Maximum reaching distance 1730mm
Robot body weight 285 KG
Installation mode Ground, upside down mounting, wall mounting
Maximum travel axis 1 Ground/upside down mountinq-167°~167°, wall mounting -300~30°
axis 2 -155°~105°
axis 3 -170°~240°
axis 4 -190°~190°
axis 5 -90°~110°
axis 6 -210°~210°
Maximum speed axis 1 160°/S
axis 2 160°/S
axis 3 169°/S
axis 4 301°/S
axis 5 342°/S
axis 6 708°/S
Allowable torque axis 4 55N.m
axis 5 55N.m
axis 6 24N.m
Allowable moment of inertia axis 4 2.1kg.m2
axis 5 2.1kg.m2
axis 6 0.9kg.m2
Installation environment ambient temperature 0~45°C
relative humidity 20~80%( No condensation)
vibration Under 0.5 C
Others Robot installation must be away from: flammable or corrosive liquids or gases, electrical sources of interference
IP level Body 1P54,wrist IP67
Advantage features Compact structure, high speed, high precision, high expansibility ana easy operation
Application Welding, cutting, assembly, handling, marking, grinding


Application Features

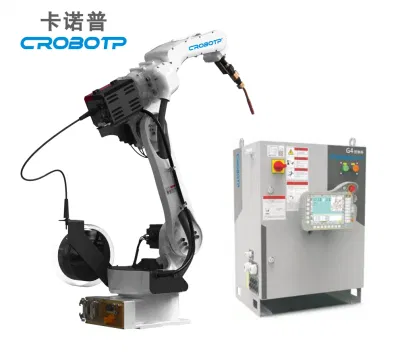

China Crobotp Export Package Manipulator 6 Axis for Application Industrial Welding Robot Robotic Arm in
Carbon steel welding application has below features:
1)-The robot moves fast, it can effectively improve the beat and the transition is natural.
2)-Sheet metal process in arc welding software package:The acceleration of small line segments and flying start of welding arc effectively improve the beat, and the wire withdrawal function effectively improves the success rate of arc starting, and fish-scale welding can weld thinner plates.
3)-The robot and welding machine adopt full digital communication which is fast and stable.
4)-DC,sheet metal, ultra low spatter: both CO2 and mixed gas can be used for ultra low spatter welding.
5)-The welding arc of sheet metal process controlled by low welding heat is still stable even at very low voltage.
6)-Smooth short circuit transition:The welding arc is softer with tension and good shape.
7)-The clearance tolerance is very high:High clearance tolerance for errors in workpiece sets.
8)-Feedback control of wire feeder encoder:When the arc fluctuates, it can be adjusted quickly.
9)-Optional fish scale welding function:There is a dimensional arc during discontinuity to reduce splashing and increase speed at the same time.
10)-Built-in search function:No need to add additional positioning hardware.


Application Photos

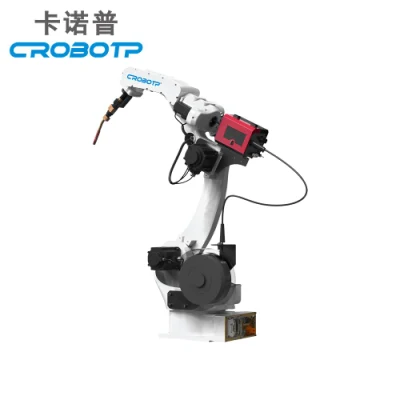

China Crobotp Export Package Manipulator 6 Axis for Application Industrial Welding Robot Robotic Arm in
China Crobotp Export Package Manipulator 6 Axis for Application Industrial Welding Robot Robotic Arm in
China Crobotp Export Package Manipulator 6 Axis for Application Industrial Welding Robot Robotic Arm in
