China Manufacturer Cross-Walking 3-Axis Injection Robot Manipulator for Automated Loading

Find the best China Manufacturer Cross-Walking 3-Axis Injection Robot Manipulator for Automated Loading. We are a factory with high-quality products. Order now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
GU
Condition
New
Application
Welding, Load, Forging, Taking out
Power Sources
AC 220V, 50/60Hz
Max Power Consumption
2.8 Kw
Air Pressure
0.5~0.7 MPa
Air Consumption
2.9 Nl/Cycle
Drive System
AC Servo Motor
Posture
90
Max Load
10 Kg
Posture Torque
10.1 Nm
Vertical Stroke
900/900 mm
Crosswise Stroke
180~840 mm
Traverse
1800 mm
Net Weight
289 Kg
Pendant
1.6 Kg
Transport Package
Polywood Packaging
Specification
2755*1800mm
Trademark
TOPSTAR
Origin
China
HS Code
8428909090
Production Capacity
300 Sets Per Month

Product Description

GU Series Cross-walking Three-Axis/Five-Axis Servo Driven Robots

China Manufacturer Cross-Walking 3-Axis Injection Robot Manipulator for Automated Loading

Advantages: High Speed, High Precision, High Stability.

Imported brand absolute value coordinate motor:

1. Rotation speed up to 6000r/min, 33% higher than the previous generation model.
2. Absolute value encoder, fast reset after abnormal alarm, eliminating repeated zeroing action and increased the efficiency use by 10%.
3. 200W motor instead of 400W motor, saving energy 2%.
4. Standard pickup full cycle up to 4.9s.


Integrated drive control servo:
1. Highly integrated modularity, reducing external communication wiring.
2. High-speed data transmission with zero communication failure.
3. DC bus common circuit design, 2% energy saving compared to traditional configuration.

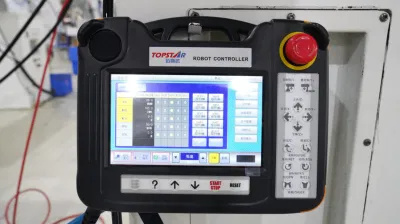

New control system:
1. Efficient and humanized robot intelligent programming language, which can flexibly call subroutines and improve coding efficiency.
2. Take out, drop side dual origin program, can quickly reset after alarm, improve production efficiency.
3. With 3D linear interpolation function, arc motion, improving the efficiency of embedded parts by more than 15%.
4. The self-diagnostic system, intelligent reminder of maintenance and repair.

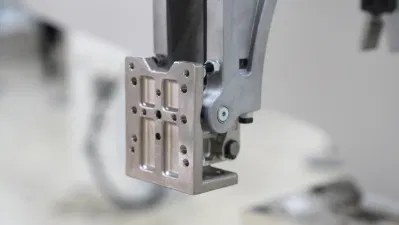

High precision C-axis (posture part):
1. Standard equipped with gas cushion imported brand cylinder, free of speed regulation.
2. Motion structure mounted precision bearings, precision up to 0.01mm.
3. Standard load of 10kg, designed for inlay automation.

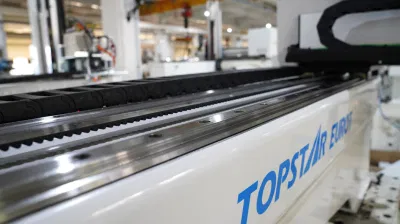

The ultimate in lightweight:
1. High-precision aluminum profiles instead of iron square passages.
2. The lightweight design of slide seat and arm, 13kg less weight than the previous generation model.

Standard Function

Packaging motion(Max. 256 points) Runner release within mold
Free packing motion(115points×2stage) Additional vacuum sensing unit(2 circuit)
Forward and rotate at removing side Delayed traverse
Posture control during traverse Undercut extract circuit
Posture midway descent at release side Start signal of conveyor
Ejector link Internal memory(for Ma100 molds)
Defective product reject circuit Lock function of setting value
Initial defective product reject circuit Extraction from fixed mold
Delayed arm descent Two language exchange(Chinese/English)
Midway runner release(Move, Revert)


Option Function

Air nipple in chuck circuit Rotation unit
NT gate cutting oncrossmember of moving Ejector return link
Additional vacuum sensing unit(4 circuits) EUROMAP12
Product gripping 4 circuits EUROMAP67
Mold close during ascend


Outer Dimensions
China Manufacturer Cross-Walking 3-Axis Injection Robot Manipulator for Automated Loading
