Chinese Manufacturers Sell in Bulk Single Axis Tail Box Adjustable Welding Positioner Suitable for Welding Pipes of Different Specifications

Get the best value single axis welding positioner for pipes. We are a Chinese factory offering bulk sales of adjustable positioners for various pipe welding needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Company Profile
  • Certifications
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
AUT-SWP-ZW-500-WT
Welding Turning Rolls Type
Self-Adjusting
Welding Tilter Type
Flexible Combination
Condition
New
Rated Payload
500kg((Axis Radius≤r400mm)
Positioner Dimension(L*W*H)
4000mm*700mm*1050mm
Equipment Net Weight
About 600kg
Adjustable Travel of The Tailstock
0-3000mm
Colour
Yellow and Blue
Customized Service
Colour ,Logo,Specifications
Transport Package
Wooden Case
Specification
About 600kg
Trademark
JINAN GUANSE
Origin
China
Production Capacity
2000

Product Description


Product Description
Chinese Manufacturers Sell in Bulk Single Axis Tail Box Adjustable Welding Positioner Suitable for Welding Pipes of Different Specifications
  Servo positioner is a specialized welding and cutting equipment for industrial robots, suitable for welding and cutting complex workpieces to achieve ideal machining positions and speeds. The rotary table of the displacement machine adopts a well-known foreign brand servo motor combined with a high-precision reducer, which has high rotary accuracy, accurate positioning, and strong load-bearing capacity. By configuring different servo motors (linkage and non linkage), remote operation of the displacement machine can be achieved through robot teaching aids or external operation boxes.
  The servo displacement machine mainly consists of a fixed base, a rotating spindle box, a welded frame, a servo motor and precision reducer, a conductive mechanism, a protective cover, and an electrical control system.
  The welded overall frame is made of high-quality steel and welded. After being returned for stress relief, it undergoes professional mechanical processing to ensure high precision and usage accuracy in key positions. The surface is sprayed with rust proof exterior paint, and the color can be customized according to customer requirements.
  Turn over to make the workpiece fixed on the workbench reach the required welding and assembly angle. The rotation of the workbench is controlled by a servo motor, which can achieve the ideal welding speed.

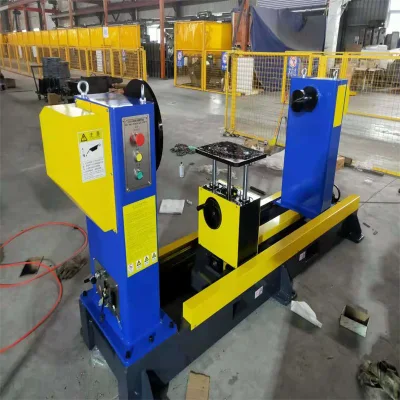

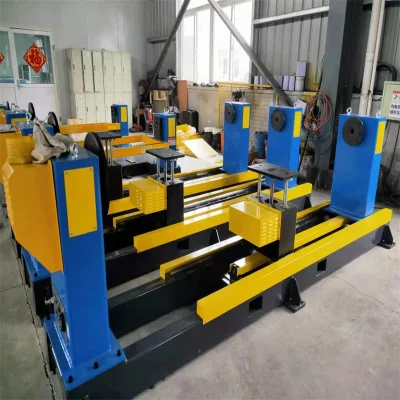

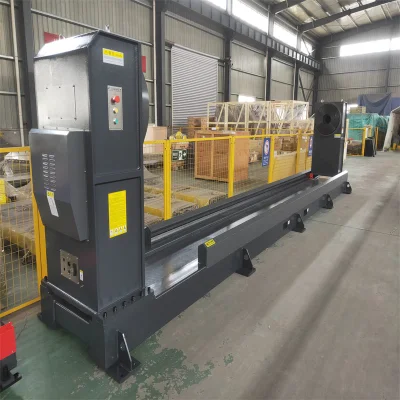

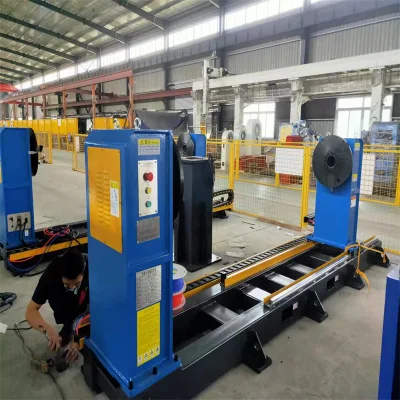

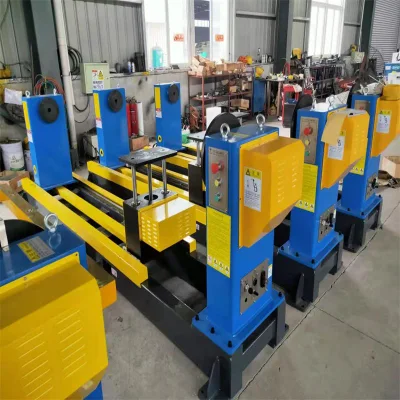

Detailed Photos

Chinese Manufacturers Sell in Bulk Single Axis Tail Box Adjustable Welding Positioner Suitable for Welding Pipes of Different SpecificationsChinese Manufacturers Sell in Bulk Single Axis Tail Box Adjustable Welding Positioner Suitable for Welding Pipes of Different SpecificationsChinese Manufacturers Sell in Bulk Single Axis Tail Box Adjustable Welding Positioner Suitable for Welding Pipes of Different SpecificationsChinese Manufacturers Sell in Bulk Single Axis Tail Box Adjustable Welding Positioner Suitable for Welding Pipes of Different SpecificationsChinese Manufacturers Sell in Bulk Single Axis Tail Box Adjustable Welding Positioner Suitable for Welding Pipes of Different Specifications

Product Parameters
Type Single Axis Positioner with Adjustable Tailstock
Model  AUT-SWP-ZW-500-WT AUT-SWP-ZW-1000-WT
Rated payload 500kg((Axis radiusR400mm) 1000kg(Axis radiusR800mm)
Standard radius of gyration R650mm R900mm
Maximum load eccentricity 150mm 200mm
The height of clamping 300mm(Over 300mm ,the bob-weight will increase with the actual load) 450mm(Over 450mm ,the bob-weight will increase with the actual load)
Maximum angle of gyration ±360° ±360°
Rated speed of gyration 50°/S 50°/S
Repeat positioning accuracy ±0.08mm( At =R400mm) ±0.12mm (At R=800mm)
Adjustable travel of the tailstock  0-3000mm 0-5000mm
Adjustment method of the tailstock  Electric control/manual control Electric control/manual control
Positioner dimension(L*W*H) 4000mm*700mm*1050mm 6200mm*850mm*1500mm
Height of gyration center  830mm 1050mm
Equipment net weight About 600kg About 1600kg
Company Profile
Chinese Manufacturers Sell in Bulk Single Axis Tail Box Adjustable Welding Positioner Suitable for Welding Pipes of Different Specifications
Jinan Guansen Automation Equipment Co., Ltd is located in Jinan, Shandong, China. As a high-tech enterprise, we focus on integrating research and development, design, production, and sales of various types of automation equipment. The company is committed to manufacturing professional industrial peripheral equipment and non -standard automation equipment. The products are widely used in construction machinery, locomotive vehicles, automobile manufacturing, ship heavy industry, petrochemical equipment, power engineering, coal machinery, heavy machinery and other industries.
Product Lineup
Robot peripheral supporting equipment
Standard servo welding positioner
Standard robot Linear rail
Robot integrated workstations and production lines for welding, cutting, handling, forging, casting, machining, painting, etc.
Peripheral safety protection smoke removal system and other supporting equipment.
Non-standard CNC welding machines, CNC cutting machines and other automatic welding cutting equipment.
The specifications of non-standard welding positioner and Linear rail can be customized .






Certifications
Chinese Manufacturers Sell in Bulk Single Axis Tail Box Adjustable Welding Positioner Suitable for Welding Pipes of Different Specifications
Chinese Manufacturers Sell in Bulk Single Axis Tail Box Adjustable Welding Positioner Suitable for Welding Pipes of Different Specifications
Chinese Manufacturers Sell in Bulk Single Axis Tail Box Adjustable Welding Positioner Suitable for Welding Pipes of Different Specifications



Packaging & Shipping
Chinese Manufacturers Sell in Bulk Single Axis Tail Box Adjustable Welding Positioner Suitable for Welding Pipes of Different Specifications
Chinese Manufacturers Sell in Bulk Single Axis Tail Box Adjustable Welding Positioner Suitable for Welding Pipes of Different Specifications
Chinese Manufacturers Sell in Bulk Single Axis Tail Box Adjustable Welding Positioner Suitable for Welding Pipes of Different Specifications



FAQ

1. Q: Is your company a manufacturer?
A: Yes, we have our own factory in Jining City and our own foreign trade company in Jinan City. We are a company that integrates factory and foreign trade.
2. Q: What is the quality of the company's products?
A: The company's products have been produced in China for over 10 years and have cooperative relationships with multiple trading companies. Our products are exported to various parts of the world.
3. Q: Does the product support personalized customization?
A: Products can be personalized and customized according to the actual needs of customers. Customizable content includes: specifications, colors, logos, etc.
4. Q: What are the transportation and packaging methods? A: We will use wooden boxes for packaging, and the transportation method can be negotiated and arranged for shipment.
Accepted Delivery Terms: FOB, EXW
5.Q: What after-sales service can you provide?
A: We provide complete technical support and a one-year warranty.
