Competitive Price Automatic Column and Boom Welding Manipulator Steel Structure Fabrication

Steel structure fabrication with competitive price automatic column and boom welding manipulator. Our factory delivers high-quality products for your welding needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Condition
New
Transport Package
Steel Frame
Trademark
Zhouxiang
Origin
China
HS Code
8468800000
Production Capacity
15sets/Month

Product Description

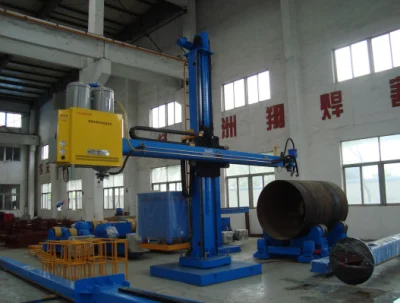

Competitive Price Automatic Column and Boom Welding Manipulator Steel Structure Fabrication
Competitive Price Automatic Column and Boom Welding Manipulator Steel Structure Fabrication

Type

Heavy-duty

Middle-duty

Light-duty

8*6

5*6

4*5

3.5*5

3*4

2*2

Effective stroke of vertical boom-mm

8000

5000

4000

3500

3000

2000

Effective stroke of cross boom-mm

6000

6000

5000

5000

4000

2000

Suitable diameter of cylinder-mm

1000-8000

1000-5000

1000-4000

700-3500

700-3000

500-2000

Rotating angle of the vertical boom

±180°

±180°

±180°

±180°

±180°

±180°(by manual)

Up and down speed of cross boom-m/min

0.9

1

1

1

1

0.3

Expansion speed of cross boom-m/min

0.12-1.2

0.12-1.2

0.12-1.2

0.12-1.2

0.12-1.2

0.12-1.2

Forward and backward speed of the trolley-m/min

1.5

1.5

1.5

1.5

1.5

1.5

The center distance of the trolley track-mm

2308

1780

1780

1780

1500

900

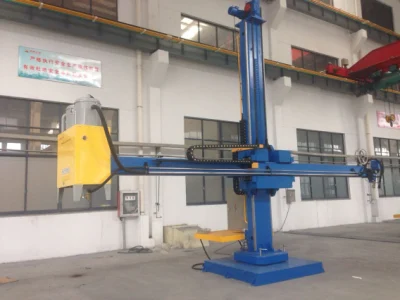

Competitive Price Automatic Column and Boom Welding Manipulator Steel Structure Fabrication

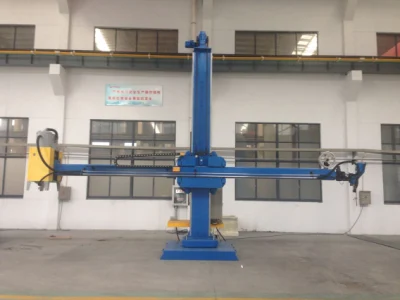

Competitive Price Automatic Column and Boom Welding Manipulator Steel Structure Fabrication Competitive Price Automatic Column and Boom Welding Manipulator Steel Structure Fabrication

1. This series of welding manipulator has several types for choosing: fixed type, fixed with rotating type, moving with rotating type, etc.

2. The welding manipulator can be 3 in 1 controlled together with welding power, welding rotator or positioner according to users' requirement.

3. The column and boom adopts welding parts which adopts tempering post welding, then carry out fine machining which can ensure higher precision requirement.

4. Boom adopts square rail, horizontal stretch and retract adopts gear and rack transmission with high precision and stability.

5. There's safety falling protective device for boom elevating, which can effectively prevent the boom falling problem occurs.

6. There's cross slider for the welding torch equipped in front of the boom to realize welding torch cross adjust for going up, down, left, right.

7. There's ladder on the column, which is convenient for maintenance. Also it is equipped with the platform which is convenient for placing the welders.

8. It can be equipped with wireless remote control box according to users' requirement, which is convenient for operation.

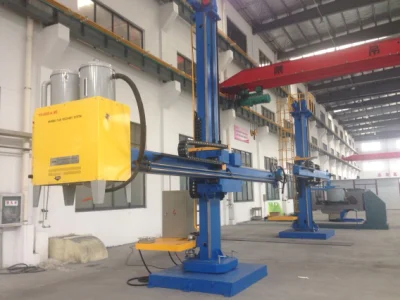

Competitive Price Automatic Column and Boom Welding Manipulator Steel Structure Fabrication
Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc.

We have high sincerity to do business with customers all over the world and establish good friendships.

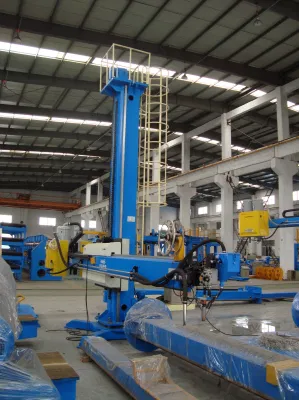

Competitive Price Automatic Column and Boom Welding Manipulator Steel Structure Fabrication
Competitive Price Automatic Column and Boom Welding Manipulator Steel Structure Fabrication
Competitive Price Automatic Column and Boom Welding Manipulator Steel Structure Fabrication
