Conventional Self Adjustable Welding Rotator with 5 Ton to 60 Tons for Pressure Vessel

Welcome to our factory! We provide high-quality conventional self adjustable welding rotators ranging from 5 to 60 tons for pressure vessel welding needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product features
  • Product Parameters
  • Detailed Photos
  • Packaging & Shipping
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
HGZ
Welding Turning Rolls Type
Self-Adjusting
Welding Tilter Type
Flexible Combination
Condition
New
Keywords
Self-Adjustable Welding Rotator
Transport Package
Export Package
Specification
Customized
Trademark
WINCOO
Origin
China
Production Capacity
300 Sets/Year

Product Description

HGZ Self-adjustable Welding Rotator

Product Description

This series roller-bed features is auxiliary equipment for automatic welding.By proper adjustment, it can make work-piece at optimum welding position, attaining purpose of reducing labor intensity, improving, welding speed, guaranteeing welding quality.
Conventional Self Adjustable Welding Rotator with 5 Ton to 60 Tons for Pressure Vessel

  Our welding roller beds is designed for maximum workpiece loads from 2T to 250T are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding. We also provide tailor-made welding rotator according to your special requirements.
   The self-adjustable rotator can be aligned by itself according to the size of the tank diameter.Its two plier-shape racks can revolve along shaft,to accommodate work-piece of various diameters.Usually it is used in the form of one group,including one powered and one idler;we also can supply several idler rollers in accordance with the customer's requirement.

Product features

1, Steplessly controllable rotary drives by means of A.C. or D.C. motor ((on request)) drive via self-locking worm gear reducers;

2, Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;

3, Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;

4, Fine machining to upper surface of base;

5, Roller distance is bolt adjustable and roller surrounding angle among 45°~110°;

6, All motion parts have lubrication system;

7, Main electric elements are ABB/Siemens brands;

8, Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;

9, Lifting lug on the base of roller bed;

Product Parameters

Model Max loading(kg) Range of suitable work piece(mm) Diameter and width of the wheel(mm) Wheel linear speed(m/h) Power of motor
(kw)
Way of speed control
Rubber rollers Metal rollers
HGZ-05 5000 250-2300 ф250*100 2*ф240*20 6-60 0.75 Variable frequency control
HGZ-10 10000 320-2800 ф300*120 2*ф290*25 6-60 1.1
HGZ-20 20000 500-3500 ф350*120 2*ф340*30 6-60 1.5
HGZ-40 40000 600-4200 ф400*120 2*ф390*40 6-60 3
HGZ-60 60000 750-4800 ф450*120 2*ф440*50 6-60 4
HGZ-80 80000 850-5000 ф500*120 2*ф490*60 6-60 4
HGZ-100 100000 1000-5500 ф500*120 2*ф490*70 6-60 5.5
HGZ-150 150000 1000-6500 According to customer requirement 6-60 2*3

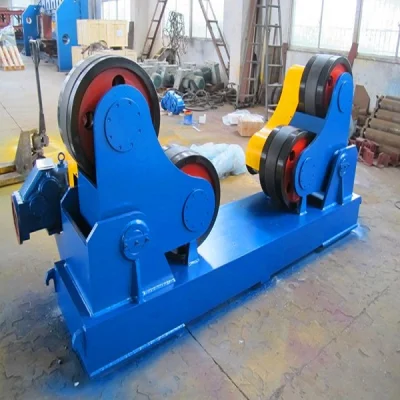

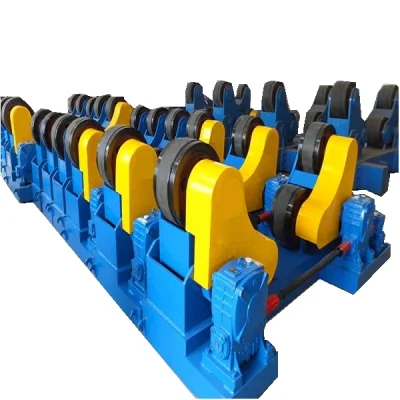

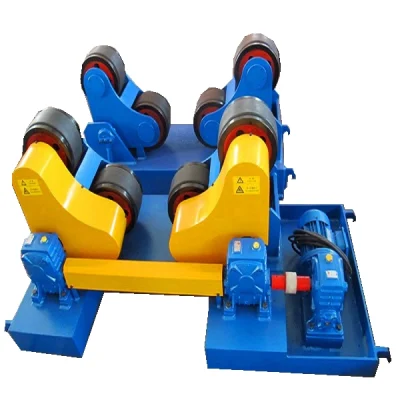

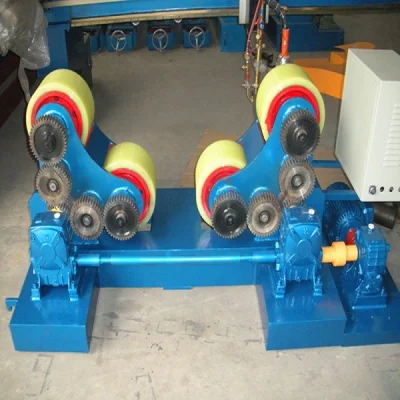

Detailed Photos

Conventional Self Adjustable Welding Rotator with 5 Ton to 60 Tons for Pressure Vessel
Conventional Self Adjustable Welding Rotator with 5 Ton to 60 Tons for Pressure Vessel
Conventional Self Adjustable Welding Rotator with 5 Ton to 60 Tons for Pressure Vessel



Conventional Self Adjustable Welding Rotator with 5 Ton to 60 Tons for Pressure Vessel
Conventional Self Adjustable Welding Rotator with 5 Ton to 60 Tons for Pressure Vessel
Conventional Self Adjustable Welding Rotator with 5 Ton to 60 Tons for Pressure Vessel
Conventional Self Adjustable Welding Rotator with 5 Ton to 60 Tons for Pressure Vessel
Conventional Self Adjustable Welding Rotator with 5 Ton to 60 Tons for Pressure Vessel
Conventional Self Adjustable Welding Rotator with 5 Ton to 60 Tons for Pressure Vessel

Packaging & Shipping

We will provide professional export packaging and choose the appropriate mode of transportation, or we can follow the requirements of customers.

Company Profile

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.

FAQ

Q:Who are we?
A, We have 3 share joint factoys in China with total around 10000 square meters with more than 150 peoples.

Q:Does the machine have CE certificate?
A:Yes, others certifications also can be sent

Q:What's the shipping method?
A: International express and sea transportation,Depend on customer.

Q:Can I use my own forwarder to transport the products for me?
A:Yes, if you have your own forwarder in China, you can let your forwarder ship the products for you.

Q:What's the Payment method?
A:T/T,L/C and other payment method, Depend on customer.

Q: What is our payment term?
A:We can accept the payment by T/T and Trade assueance .

Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine.

Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.And we warmly welcome you to China for inspection.

Q:How to Place an order?
A:Please kinldy send us your order by email,we will confirm the PI with you .
we wish to know the below:your details address,phone/fax number,destination,transportation way;
Product informaiton:item number,size,quantity,logo,etc
