Conventional Tank Fit up Rotators, Vessel Diameter 700mm - 5000mm and 2.2kw Motor

Product Name: Conventional Tank Fit Up Rotators 700-5000mm We are a factory specializing in Conventional Tank Fit Up Rotators with 2.2kw Motor for vessel diameters 700mm to 5000mm. Quality guaranteed.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HGZ-60
Rollers Width
120mm
Tube Diameter
750-4800mm
Wheel Velocity
6-60m/H
Power of Motor
4kw
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Loat 60, 000kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Months

Product Description

Gray Conventional Tank Fit Up Rotators, Vessel Diameter 700mm - 5000mm And 2.2KW Motor
Quickly Details:
Type:Self-aligning Welding Rotator / Self-aligning Fit-Up Rolls
Brand:MISA
Condition:100% brand new
Model number:HGZ
Capacity:5Ton - 150Ton

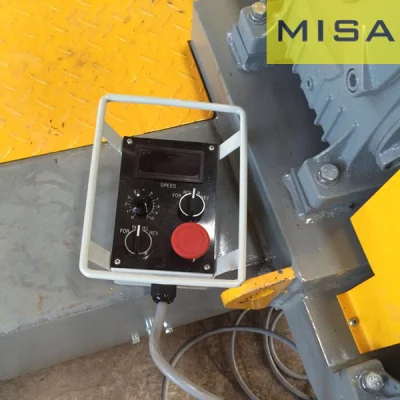

Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)

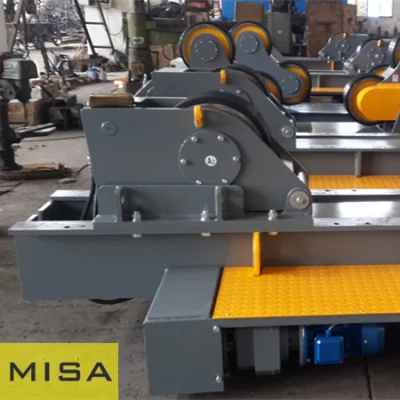

Product Photo:
Conventional Tank Fit up Rotators, Vessel Diameter 700mm - 5000mm and 2.2kw Motor


Product Parameter:
Type Max loading (kg) Vessel diameter(mm) Dia. and width of the wheel(mm) Roller linear velocity(m/h)







6-60










Power of motor(kw)
Rub-ber rollers Metal rollers
HGZ-5 5,000 Φ250-2300 Φ250×100 2×Φ240×20 0.75
HGZ-10 10,000 Φ320-2800 Φ300×120 2×Φ290×25 1.1
HGZ-20 20,000 Φ500-3500 Φ350×120 2×Φ340×30 1.5
HGZ-40 40,000 Φ600-4200 Φ400×120 2×Φ390×40 3.0
HGZ-60 60,000 Φ750-4800 Φ450×120 2×Φ440×50 4.0
HGZ-80 80,000 Φ850-5000 Φ500×120 2×Φ490×60 4.0
HGZ-100 100,000 Φ1000-5500 Φ500×120 2×Φ490×80 5.5
HGZ-150 150,000 Φ1000-6000          / Φ620×220 5.5
HGZ-250 250,000 Φ1800-7500          / Φ660×260 7.5
HGZ-500 500,000 Φ1800-8000          / Φ750×400 7.5

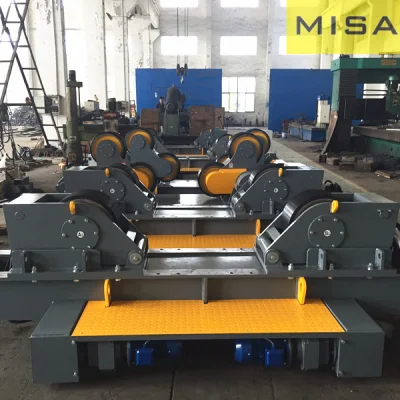

Detail Photo:
Conventional Tank Fit up Rotators, Vessel Diameter 700mm - 5000mm and 2.2kw Motor

Product Description:
The Welding Turning Rolls frame of HGZ series and HGK series designed and manufactured by the company absorbs domestics and overseas advantages of similar products. It is designed and manufactured according to using requirements for pressure vessel manufacturers. The product is applicable for manual welding and automatic welding of metal cylinder. It is featured with advanced technology, reliable quality, easy operation and other advantages.Two groups of roller unit with turn a certain angle are installed on base of drive and idler rotator, two groups of roller unit can turn a certain angle by revolve its mandril, so it can automatic adjusted according to specification of work piece, ensure stable and continuous running of work piece.

Application:
1. Pressure vessels.
2. Pipe manufacturing industries
3. Wind power fabrication
4. Chemical & fuel storage tank fabrication
5. Any heavy cylindrical job
6. Customized special welding rotators according to client's requirements.

Packing and Shipment:
Conventional Tank Fit up Rotators, Vessel Diameter 700mm - 5000mm and 2.2kw Motor


Features:
1. We use Polyurethane roller, Rubber Roller or steel roller which make our machine use longer than others and noise will lower .
2. Our product anti creep function, Hydraulic lifting for fit up pipes, automatic traveling or Manual traveling on the rail .
3. The swing angle of roller group can be automatically regulaterd according to the work piece diameter and size and manual calibration is not needed .

Brand Using:
1. Inverter is made in USA Danfoss / Schneider
2. Motor Brand is UK Invertek / NTK / Siemens / WEG
3. Element is made by Schneider /Siemens
4. Wireless Control box is made by Taiwan by Yuding
5. Bearing is made by NTN
