Conventional Welding Rotator 80/100 Ton Load Capacity Pipe Turning Rolls

Looking for a reliable Conventional Welding Rotator 80/100 Ton Load Capacity Pipe Turning Rolls? Look no further - Our factory has the solution you need.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HGK-80
Vessel Diameter
800-4800mm
Wheel Velocity
6-60m/H
Power of Motor
2 * 3.0 Kw
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Load 80, 000kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month

Product Description

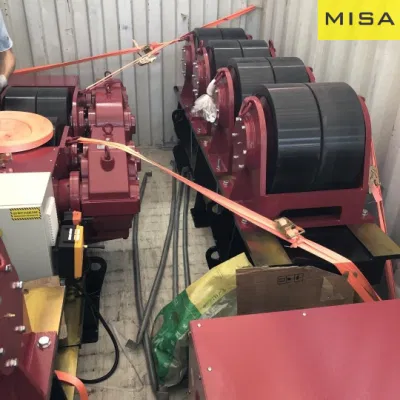

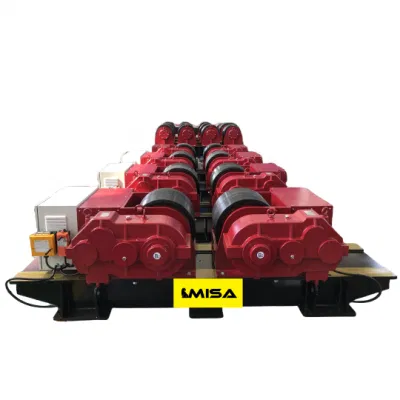

Conventional Welding Rotator 80/100 Ton Load Capacity Pipe Turning Rolls

MISA supply all kinds of welding turning rolls, including self-aligning type and conventional type. To learn more about fit-up turning rolls and anti drift turning rolls, please contact with our sales team.

Conventional Welding Rotator 80/100 Ton Load Capacity Pipe Turning Rolls
1. Loading capacity from 2Ton to 2000Ton

2. Has wide range in stock and worldwide delivery

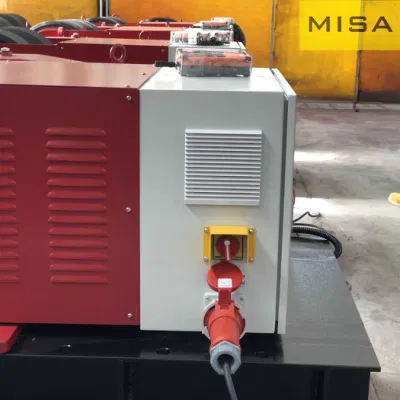

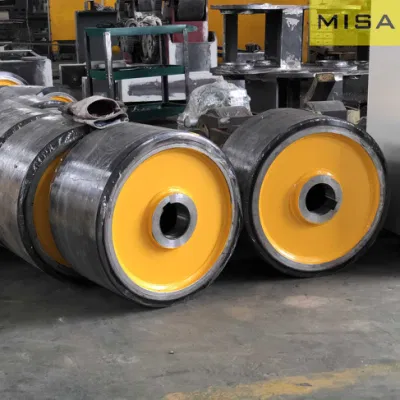

3.  Wheels material can be adopted Polyurethane, Metal and Rubber

4. Mechanical structure can be design for Self-aligning, Conventional or Hydraulic type

5.  Help customer choose the right model of Turning Rolls according to your job site



MISA Welding Turning Rolls


              Conventional Welding Turning Rolls                              Self-aligning Welding Turning Rolls
Conventional Welding Rotator 80/100 Ton Load Capacity Pipe Turning Rolls
Conventional Welding Rotator 80/100 Ton Load Capacity Pipe Turning Rolls


Why Choose MISA Welding Turning Rolls:

√ Standard match with CUL and CE


√ Professional design team

√ Motor power supply is equipped with safety protection

√ Perfect after-sales

√ 13 months warranty.



Welding Turning Rolls - The Comprehensive FAQ Guide

With the increasing frequency of use of welding turning rolls, more large-scale industrial manufacturing industries must use turning rolls to assist welding production.

Do you have a lot of questions about the welding turning rolls? We have compiled some common instructions on the use of the welding turning rolls for you.


What is a Welding Turning Roll?

Welding turning roll is just one of many devices that help you to carry out the welding production process more conveniently.

Conventional Welding Rotator 80/100 Ton Load Capacity Pipe Turning Rolls
Example of what a welding turning roll looks like


Similar to the positioner, the welding turning roll can help you do not need to manually move the workpiece during the welding process.

What they do is basically to drive a cylindrical container or any other type of circular workpiece to rotate at a uniform speed, which can switch the direction of forward rotation and reverse rotation.


Can You Make a DIY Welding Turning Roll?

Of course you can! Tell us your needs, our design team will design what you think in your mind according to your ideas.
Of course it is based on a feasible operating plan.

Conventional Welding Rotator 80/100 Ton Load Capacity Pipe Turning Rolls

A homemade or a DIY welding turning roll without any additional parts.

However, many people are confused in distinguishing between welding turning rolls and positioners. Welding positioners are the machines you use where you clamp various workpieces, welding rotators rotate, twist, and turn workpieces automatically.


What Are the Parts of a Welding Turning Roll?

Conventional Welding Rotator 80/100 Ton Load Capacity Pipe Turning Rolls

The picture clearly shows all the parts of the welding turning roll.

The regular welding turning roll is comprised of two (2) parts: One Idler, One Drive.



Idler Supporting Unit

Idler bracket, also known as "base". It can carry wheels, and the workpiece can rotate on it.

The components supported by the idler include:

  • Drive turning roll
  • Driven wheel frame

Motorized Drive Unit

Similar to the structure of the idler support unit, the motorized drive unit is also composed of different parts and components.

The motorized drive device is a part of the welding turning roll, which emits power and energy to make the welding turning roll work.

Among them, the controller and the motor are the two most important parts of the motorized drive device.

These are the components of the welding turning rolls. Some welded rotor manufacturers and suppliers may add some other parts to enrich this product. These are the common parts that are necessary for welding turning rolls.



Welding Turning Rolls VS Welding Positioners

Almost everyone is confused about this: What is the difference between a welding positioner and a welding turning roll? Is the function the same?

This is a good question.
Conventional Welding Rotator 80/100 Ton Load Capacity Pipe Turning Rolls
Sample image of the appearance of the welding positioner

The welding positioner is a device used to drag the workpiece to be welded to move the welding seam to the ideal position for welding operation.
The welding positioner worktable has a degree of freedom of overall turning. The workpiece can be turned over to the ideal welding position for welding. In addition, the worktable has a degree of freedom of rotation.
This product is mainly composed of rotating machine head, displacement mechanism and controller. The speed of the rotating machine head is adjustable, with an independent speed regulation circuit, and the DIP switch directly presets the length of the weld. The inclination angle of the table can be adjusted as required.

The welding turning roll drives the workpiece, parts and components to rotate; the welding positioner is repositioning, can rotate and flip, and fix the workpiece in an ideal position so that the welder can reduce the workload.

In which welding processes can the welding turning roll be used?
Conventional Welding Rotator 80/100 Ton Load Capacity Pipe Turning Rolls

The welding turning roll can be used in the production process of submerged arc welding or SAW, and the welding work goes on smoothly.

The welding turning roll can be used to supplement and assist a large number of welding processes, including but not limited to:
  • Submerged Arc Welding (SAW)
  • Tungsten Inert Gas (TIG) Welding
  • Metal Inert Gas (MIG) Welding
  • Arc Welding
If you choose to use a welding turning roll to complete any of these processes, you can expect faster, more accurate, more precise and higher quality products.


Are there manually adjustable welded turning rolls?

Conventional Welding Rotator 80/100 Ton Load Capacity Pipe Turning Rolls
The rotor without a controller or power box is a manually adjusted welding turning roll.

Therefore, the manual adjustment welding turning roll is a rotator without computer numerical control or CNC functions.

This basically means that workers must manually adjust the speed, frequency and height of the spinner by inputting it to the control system.

This is the true definition of the manual adjustment of the welding turning roll.

You can buy a manually adjustable welding turning roll and try it out. But in fact, because it requires less control when you use it, experts will even recommend them even more.



Welding Turning roll Applications

The welding turning roll can be widely used in many welding jobs and business fields.
Conventional Welding Rotator 80/100 Ton Load Capacity Pipe Turning Rolls

It is most commonly used in the production of storage vessels and pressure vessels, with the help of the function of welding turning rolls.

In addition, the most common application of welding turning roll also includes welding other equipment:

1. Oil storage tank
2. Water tank
3. Shipyard and ship parts
4. Pressure vessel



Different Types of Welding turning rolls

Contrary to the perception of many people, the welding turning rolls are not limited to a single model of machine.

Conventional Welding Rotator 80/100 Ton Load Capacity Pipe Turning Rolls
Fit Up Growing Line - one of the most commonly used welding turning rolls

In fact, there are many other types of welding turning rolls on the market today. Some of the most common types include:

Adjustable Turning Rolls

These are welding rotators whose steering rollers can be easily adjusted in width and distance to suit the size of the workpiece, or the circumference and width of the material you will be welding.

Fit Up Welding turning rolls

Similar to the adjustable turning rolls, the turning roll can adjust the wheel spacing to suit the size of the workpiece. The accuracy and precision of the weld can be guaranteed.

Pipe Pinching Turning Rolls

The pipe pinching turning rolls, judging from its terminology, is a welding turning roll that is clamped on pipes or any type of cylindrical objects to help them perform automatic welding.

These machines are the best and the most ideal for solving the problems of tilting or rotating pipes and other materials of the similar state, size, and dimensions.

Self-Aligning Welding Turning Rolls

The self-aligning turning roll can automatically adjust the roller to accept any diameter cylinder within the specified diameter range. This type of machine is usually used to deal with changes in the diameter of the cylinder, from job to job. The roller shell of this type of turning roll is hinged on the based and opens automatically when a larger diameter workpiece is introduced. In this type of turning roll, each roller bracket assembly has two independent roller assemblies, so it can support a wider range of work. The two sets of rollers of the drive unit provide final drive to provide better traction for work

Why does the workpiece move on the welding rotator?

When using a welding turning roll, both the rotor and the weldment are circular, the distance between the rotor and the cylinder is the same as the length of the cylinder, and the axis is parallel, which will not cause shaking.

If one of the rollers of the welding turning roll is damaged, the workpiece on the turning roll may cause shaking.

Of course, if the shape or size of the workpiece is irregular, it will also cause shaking. This is because the axis of the rotor is not parallel to the axis of the workpiece.


What are the effects of using the welding rotator on the processing quality?

During the welding process, the welding turning roll will be used to complete related operations. The professional design of the welding turning roll and advanced production technology, and an automatic tracking system to achieve the application purpose, make the positioning more accurate. When the welding turning roll is processed and produced, the process design can be carried out according to customer requirements, so that the welding turning roll can better meet the needs of use.

Any problems encountered during processing and production can be analyzed, controlled and adjusted through appropriate methods. In addition, the welding turning roll will be tested on the process parameters to make the parameter setting more reasonable, make the processing operation consistent with the equipment setting, and achieve better operation control effects.




Some other FAQs about the product



1. What are the materials of the wheels?

Rubber, polyurethane or steel wheels.

2. What is the difference between conventional and self-aligning?

The conventional welding turning roll requires the customer to manually adjust the distance of the rollers within the effective range of the equipment. It's a bit convenient, flexible, and low price.
The self-aligning welding turning roll only needs to place the cylinder on the equipment, and there is no need for manual adjustment within the effective range of the equipment, but the price is higher than conventional.

3. What is included in one set of Welding turning roll ?

One set Welding Rotator include 1 drive roller & 1 idler roller, and 1 electrical cabinet with hand remote.

4. How to adjust the base of the conventional welding turning roll ?

We have bolt adjustment and screw adjustment to choose from. If there is no special requirement, it will default to bolt adjustment.

5. Do you provide warranty?

We provide a 13-month warranty and can provide customers with technical guidance for life.

6. Replacement parts can provide it?

We provide it for free during the warranty period, and charge for it after the warranty period.





Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
