Datang Medium Type Welding Manipulator

Find top-quality Datang Medium Type Welding Manipulator at our factory. Our expertly crafted welding equipment ensures high performance and durability.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
DLH4050
Specification
standard
Trademark
DATANG
Origin
Jiangsu, China
HS Code
84688000
Production Capacity
50 Sets Per Month

Product Description

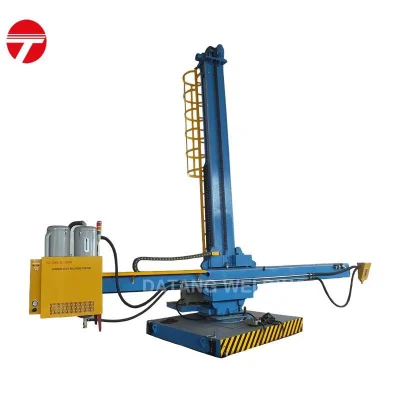

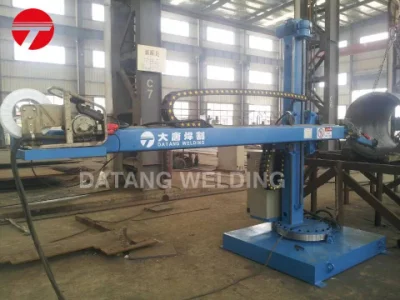

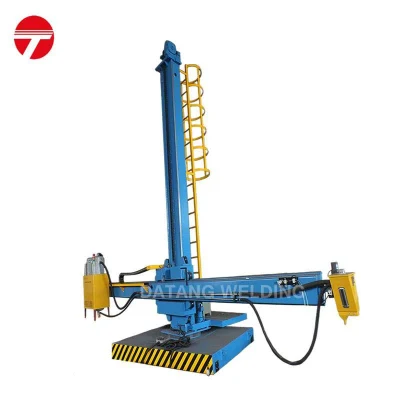

Medium Type Welding Manipulator


Welding manipulator includes fixed type,fixed with rotation type and traveling with rotation type.
The boom of machine can weld inside and outside seams of small tanks,also can weld longitudinal and transverse seams of big tanks.
It has some optional functions,such as Auto-tracking of welding arc.TV monitor,The flux recovering and conveying system etc.


Main technical parameter

Model DLH2030 DLH3040 DLH4050 DLH5060
Vertical elevation stroke (mm) 2000 3000 4000 5000
Boom retracting stroke (mm) 3000 4000 5000 6000
Frame rotation angle (°) ±180
Frame rotation speed (rpm) 0.3

Boom elevationg speed(m/min) 1
Boom feeding speed (m/min) 0.12~1.2

Trolley feeding speed (m/min) 2 2
Trolley rail span (mm) 1800 2000







Datang Medium Type Welding Manipulator
Datang Medium Type Welding Manipulator


Datang Medium Type Welding ManipulatorDatang Medium Type Welding ManipulatorDatang Medium Type Welding ManipulatorDatang Medium Type Welding Manipulator
