Datang Welding Special Welding Positioner Headstock and Tailstock Positioner

Upgrade your welding process with the Datang Welding Special Welding Positioner Headstock and Tailstock Positioner. As a factory, we provide high-quality equipment for efficient and precise welding.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HBJ
Welding Turning Rolls Type
Channeling
Welding Tilter Type
Flexible Combination
Condition
New
Rated Loading(T)
0.5-10
Max Eccenteric(mm)
100-200
Color
Customer Requirements
Brand
Datang
Transport Package
Wooden
Specification
Standard
Trademark
Datang
Origin
China
HS Code
84688000
Production Capacity
100 Sets Per Month

Product Description

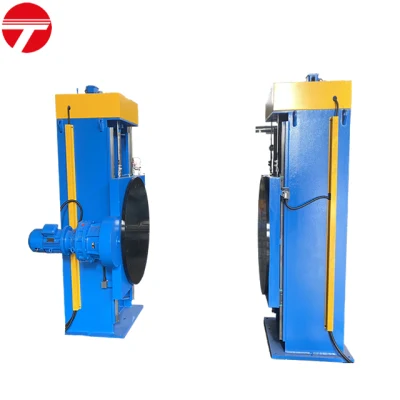

Head & Tail Lifting Welding positioner
CE Certificate
ISO9001:2008 standard
Design according to customers' requirement


I. Belief Introduction
Head & Tail Lifting Welding Positioner is a new model designed especially to meet the special requirement of customers. The structure of lifting welding positioner can reduce the height of worktable after rotating, which is easy to be operated to meet the requirement of different production need.

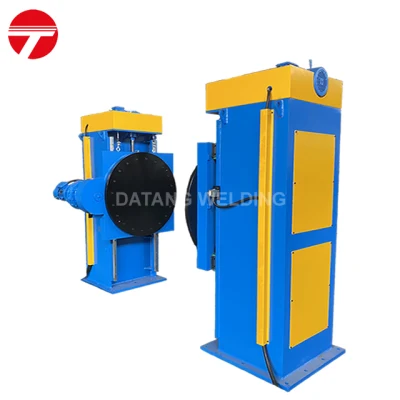

40T Headstock and tailstock Positioner

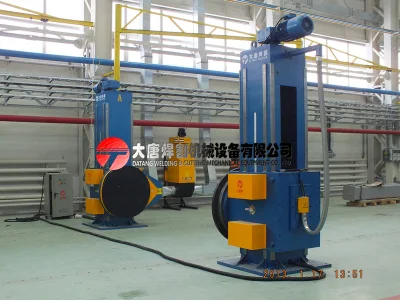

This Positioner is special design for Alstom of Kazakhstan, which made of a headstock positioner and a tailstock positioner, the worktable can rotating and elevating.
If you are interested in this model or similar ones, we can special made and quofe for you!

II. Specification
Do it especially according to the special structure of customers' job.

technical parameter Type
HB1 HB3 HB6 HB12 HB30 HB50 HB100 HB150 HB200
Rated loading (Kg) 100 300 600 1200 3000 5000 10000 15000 20000
Max eccenteric Distance(mm) 50 100 200 200 250 250
Max distance of Gravity center (mm) 150 200 300 400 500 600
Working table size (mm) φ400 φ600 φ1000 φ1200 φ1400 φ1500 φ1800 φ2000 φ2200
The amount of table T-beam   4 6
Tilting angle (°) 0°90° 0°120°
Rotating speed (rpm) 0.22 0.151.5 0.11 0.050.5 0.030.3
Rotating Power(KW) 0.18 0.37 0.75 0.75 1.5 2.2 3 4 5.5
Tilting speed (rpm)     0.8 0.5 0.3 0.14
Tilting PowerkW     0.75 1.1 2.2 3 4 5.5 7.5
Structure of rotating direct connection of reducer Tilting support
electricity (A) 600 600 600 600 1000 1000 2000 2000 2000
Length of the machine L(mm) 740 835 1180 1360 2000 2100 2500 3300 3300
Height of the machine H(mm) 420 600 845 900 1300 1500 1650 1865 1865
Width of the machine W(mm) 527 600 1000 1200 1400 1500 2100 2200 2250
Height of the tilting center h(mm) 300 457 712 735 1100 1292 1420 1570 1570
Max diameter of workpiece (mm) 550 850 1350 1400 2000 2500 2700 3000 3000
Speed adjusting way Rotating speed  VFD
Tilting speed constant
