Design and Customize Various Arc Welding Robot Positioner Turntable with CE Certification

Custom Arc Welding Robot Turntable - CE Certified | Design and customize various positions. Factory made for quality and precision. Contact us today!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
JZJ
Max Eccentricity Distance
150mm
Tilting Angle
0-90°
Voltage
220V
Welding Turning Rolls Type
Self-Adjusting
Welding Tilter Type
Flexible Combination
Condition
New
Capacity
1000kg-3000kg
Rotation Speed
3.8rpm
Center of Gravity
200mm
Rotation Center Height
1100mm
Equipment Size
2900*950*1700mm
OEM
Yes
ODM
Yes
Custom
Custom-Made
Adjustable
Self-Adjustable
Turning Speed
5rpm
Eccentricity
200mm
Turning Radius
800mm
Transport Package
Standard Wooden Casae
Specification
CUSTOM-MADE
Trademark
JZJ
Origin
China
HS Code
8428909090
Production Capacity
50 PCS/Month

Packaging & Delivery

Package Size
3000.00cm * 3000.00cm * 3000.00cm
Package Gross Weight
1000.000kg

Product Description

Design and Customize Various Arc Welding Robot Positioner Turntable with CE CertificationDescription

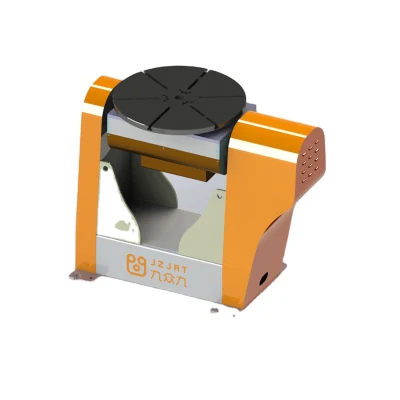

This type of positioner is an L-shaped two-axis positioner, driven by an AC servo motor as the external axis of the robot. The reducer adopts a high-precision reducer with reliable accuracy and adjustable speed.
The high rigidity structure design makes the structure rigid and stable. The equipment has an excellent ergonomic design and engineering concept.
The mechanical part of the equipment is mainly composed of slewing mechanism and turning mechanism
(Lifting mechanism) and frame, etc. The workpiece rotation and workpiece turning (lifting) are all driven by servo motors. Each servo motor is equipped with a set of precision RV reducer to achieve precise positioning. The slewing bearing is driven to rotate by the output gear, thereby driving the work
Work table rotation and cantilever overturn to realize multi-position welding of workpieces






technical parameter

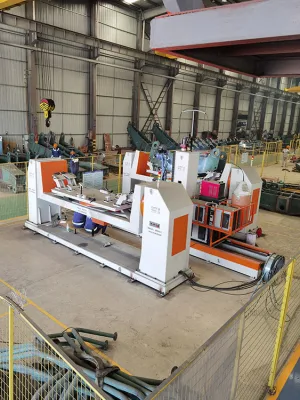

Head-tail Double-axis Positioner

Input power 380V 50Hz/60Hz
  Capacity 1000kg-3000kg
Rotation Angle ±180°
Rotation Speed 3.8rpm
Center of Gravity 200mm
Rotation Repeat Positioning Accuracy ±0.1mm
Rotation Center Height 1100mm
Turning Angle ±360°
Turning Speed 5rpm
Eccentricity 200mm
turning radius 800mm
Rotation Repeat Positioning Accuracy ±0.1mm
Rotary Table Diameter φ1200mm
Table height from ground 1350mm
Equipment size 2900*950*1700mm

Packing and delivery



Advantage :

1.The most Competitive price.
2.Good after-sale service.
3.Fast delivery time.
4.High quality control.
5.Customized voltage,color,table rotate speed and diameter,center hole can be design according to customers requirements.
6.Provide one-step service from design,produce to quality control,sale and shipping.

7.We provide OEM service.
8.100% high quality before shipping for every customer.
9.Good after-sale service for customer.
10.Wholesale price for regular customer.


FAQ

1.Do you have export experience?
Yes,we have own factory,and we have many years experience of welding positioners and welding rotators and parts. We have exported to Australia,Europe and America, Central South Asia etc.



2.How many time will the products be finished?
 4-5  working days for sample making.
 10 working days about the mass products production time for normal order, it is up to the quantity.

3.What ways of shipping?
We provide EXW,FOB,CIF price.Most shipping is by sea, as sea freight is not so expensive as by air.Normal shipping way by sea, if urgent by air,DHL,FEDEX,UPS,TNT.

4.How to ensure the quanlity?

Full set of equipment ensure each process of product be finished.
First class of salesman to service feor very customer's demands.
Excellent design staff to service for customer ,if you provide information and sample.

5.What information should  I let you know once i want to make a inquiry?
 the workpiece diameter, the weight of the workpiece, the rotate speed do you need?
OEM or not?the voltage for the motor?What type of the plug you need? Asia type or Europe type?
