Glue Dispensing Spray Valve MD-Dd-T53311 Automatic Solder Paste/Hot Glue/Epoxy Dispenser Robot

Introducing the Glue Dispensing Spray Valve MD-Dd-T53311 Automatic Solder Paste/Hot Glue/Epoxy Dispenser Robot. Perfect for factory automation. Boost efficiency and precision with this versatile dispensing solution.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
MD-DD-T53311
Installation
Desktop
Driven Type
Pneumatic
Transport Package
Wooden Boxes and Foam
Specification
750mm(L)*680mm(W)*800mm(H)
Trademark
minderhightech
Origin
Guangdong
HS Code
8479899990
Production Capacity
500 Set/ Month

Product Description

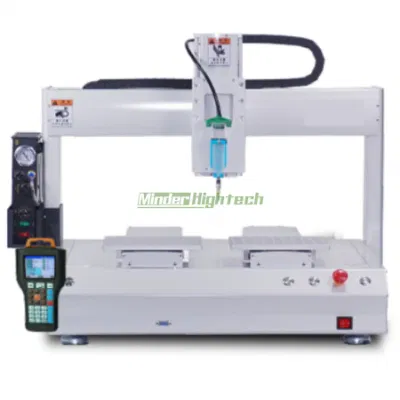

Glue Dispensing Spray Valve MD-Dd-T53311 Automatic Solder Paste/Hot Glue/Epoxy Dispenser Robot
Glue Dispensing Spray Valve MD-Dd-T53311 Automatic Solder Paste/Hot Glue/Epoxy Dispenser Robot
Glue Dispensing Spray Valve MD-Dd-T53311 Automatic Solder Paste/Hot Glue/Epoxy Dispenser Robot
Applications

UV glue, AB glue, EPOXY(black glue), COB black glue,white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...

Feature
1.Desktop type, can be placed on the production line.
2.DIY mode, free matches of axis and heads, head number range is 1~12.
3.Optional Full English marked machine body, to be international application.
4. Multi-axis design with high rigidity aluminum alloy.
5.Double Y axis type, automatic working alternatively, saving the time of placing object.
6.The glue automatic feeding, safe and silence.
7. Main components of the machine are high quality, ensure the reliability and accuracy.
8.Fixture and tooling available. Contact us for customization.
Model MD-DD-T53311 MD-DD-T54411 MD-DD-T64411
Stroke X 500mm 500mm 600mm
Stroke Y1 300mm 400mm 400mm
Stroke Y2 300mm 400mm 400mm
Stroke Z 100mm 100mm 100mm
Dispensing system(head) 1(optional 2 or 3 or 4)
Driving method stepping motor / servo motor
Moving method point to point/linear/circle

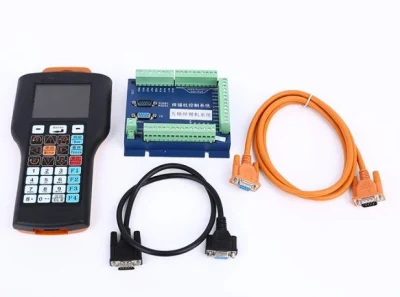

Programing interface teaching box/PC
Repeat accuracy +-0.02mm
Speed 0.1-800mm/sec
Available Graph line/circle/arc/continuous line/3d irregularity line
Program storage 100groups/1000points per group
Port RS232
Power AC 220V/50Hz
Air 0.5Mpa
Glue Dispensing Spray Valve MD-Dd-T53311 Automatic Solder Paste/Hot Glue/Epoxy Dispenser Robot
Glue Dispensing Spray Valve MD-Dd-T53311 Automatic Solder Paste/Hot Glue/Epoxy Dispenser Robot
Glue Dispensing Spray Valve MD-Dd-T53311 Automatic Solder Paste/Hot Glue/Epoxy Dispenser Robot

Function and characteristics
1, Newly improved design of the glue machine line, the whole machine power dose not exceed 15W.

2,Two-piece air source input structure. After the air pressure comes out from the air compressor, the gas contains water and impurities, which causes the solenoid valve to get stuck and loses sensitivity. After adding two-piece, the problem can be improved obviously.

3, The optional precision pressure regulating valve is specially designed to adjust the amount of dispensing glue. Compared with similar products, this regulating valve has more stable air pressure and more accurate air outlet size. .

4, Pneumatic accessories: the original Taiwan AirTAC solenoid valve, cylinder; and the slider driven by the cylinder has special treatment to ensure never fall off.

5, Machined brass turntable with hole in the middle and reverse suction function with an accuracy of 0.01mm.
6, Machined brass applicator, compact and convenient, stable and resistant to corrosion.
7, Aluminum motor shield to protect the motor .

8, All stainless steel casing, beautiful appearance; gas path and circuit are completely separated, eliminating the possibility of moisture corrosion of the gas path affecting the circuit. In addition to the circuit board, other components are distributed in order above the machine for easy maintenance.
Glue Dispensing Spray Valve MD-Dd-T53311 Automatic Solder Paste/Hot Glue/Epoxy Dispenser Robot
Glue Dispensing Spray Valve MD-Dd-T53311 Automatic Solder Paste/Hot Glue/Epoxy Dispenser Robot
Glue Dispensing Spray Valve MD-Dd-T53311 Automatic Solder Paste/Hot Glue/Epoxy Dispenser Robot
Glue Dispensing Spray Valve MD-Dd-T53311 Automatic Solder Paste/Hot Glue/Epoxy Dispenser Robot Our Services

1. Talk with our sales man and will get your fullrequirements; our engineer will design and creat the solution with engineering drawing;
2. after confirmed, we will start to prepare all stuff of the machine;
3.Assembly by another department will be the third step;
4. Debug and test will be a very important step ,make sure the machine working well before ship;
Customers' satisfy is the most important for us. From our engineers to the assembly workers, we are clearly that only the best product and service brings long run relationship.You will have no worries to work with a professional manufature who have 10 years of experience. Glue Dispensing Spray Valve MD-Dd-T53311 Automatic Solder Paste/Hot Glue/Epoxy Dispenser Robot
Automatic Bench Top Desktop 4 Axis PLC Programmable High Speed Speaker dual Y Syringe dispenser
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to North America(20.00%),Western Europe(20.00%),South Asia(20.00%),Southeast Asia(15.00%),Mid East(10.00%),South America(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Soldering machine,Spot welding machine,Plasma cleaning machine,Glue dispenser,Screw machine

4. why should you buy from us not from other suppliers?
with ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Cash;
Language Spoken:English,Chinese
