HBJ 30 Type Welding Positioner Turntable for Flange and Pipe Welding and Positioning Equipment

Discover our HBJ 30 Type Welding Positioner Turntable for Flange and Pipe Welding and Positioning Equipment. Made in our factory for precision and efficiency.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HBJ-30
Speed of Table
0.23rpm
Size of Table
1400mm
Turning Power
3kw
Tilt
2.2
Max Gravity Distance
200mm
Max Turning Distance
2100mm
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Load 3, 000kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month

Product Description

HBJ 30 Type Welding Turntable For Flange and Pipe Turning Table Welding and Positioning Equipment

Quickly Details:
Type: Welding Positioner Turntable / Welding Turning Table
Brand:MISA
Condition:100% brand new
Model number:HBJ
Capacity:100kg-200,000 kg
Consist: (1) Main frame (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)


Welding Positioner Turntable Product Photo:

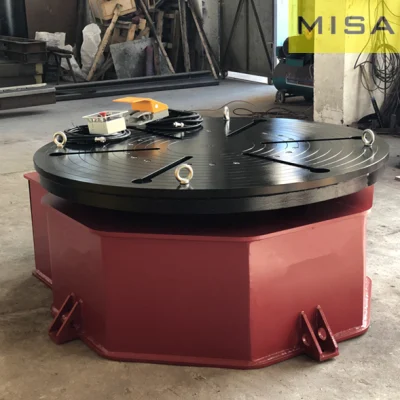

HBJ 30 Type Welding Positioner Turntable for Flange and Pipe Welding and Positioning Equipment

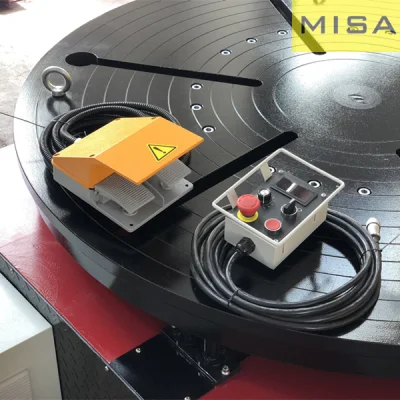

HBJ 30 Type Welding Positioner Turntable for Flange and Pipe Welding and Positioning Equipment

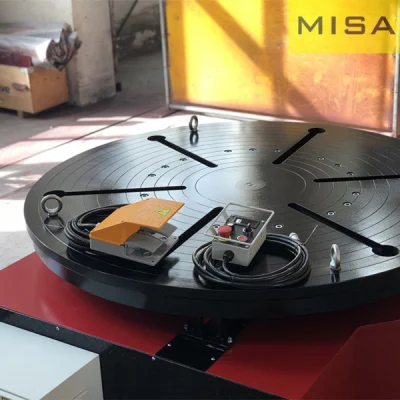

HBJ 30 Type Welding Positioner Turntable for Flange and Pipe Welding and Positioning Equipment



Welding Positioner Turntable  Product Parameter:
Model Rated load Cap
(tons)
Power (kw) Max Gravity Distance
(mm)
Max
centroid Eccentricity (mm)
Table Max Rotation Ф@ 90
degree
Tilt Angle (degree)
Turning Tilt Speed(rpm) Diameter (mm)
Rotation
(variable)
Tilt (constant)
HBJ-01 0.1 0.06     /. 100 150 0.40~4.0 man. 400 600 0~90
HBJ-03

0.3 0.37     /. 100 150 0.10~1.0 man. 600 800 0~90
HBJ-06

0.6 0.75 0.75 100 150 0.09~0.9 1.1 1000 1500 0~90
HBJ-12 1.2 1.1 1.5 150 200 0.05~0.5 0.67 1200 2050 0~120
HBJ-20 2 1.1 1.5 150 200 0.05~0.5 0.23 1400 2100 0~120
HBJ-30 3 1.5 2.2 200 200 0.05~0.5 0.23 1400 2100 0~120
HBJ-50 5 3 3 300 300 0.05~0.5 0.14 1500 2500 0~120
HBJ-80 8 3 3 300 300 0.05~0.2 0.14 2000 3240 0~120
HBJ-100 10 3 4 400 400 0.05~0.2 0.14 2000 3240 0~120
HBJ-150 15 3 5.5 500 200 0.05~0.5 0.14 2200 3400 0~120
HBJ-200 20 4 7.5 630 200 0.05~0.5 0.14 2500 3400 0~120

Welding Positioner Turntable Detail Photo:

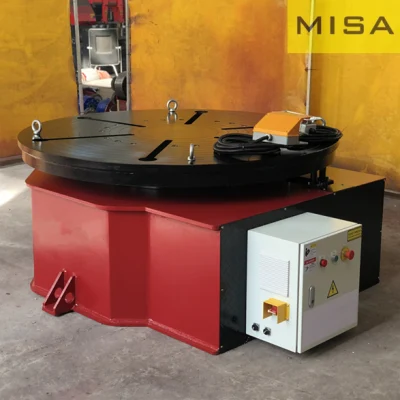

HBJ 30 Type Welding Positioner Turntable for Flange and Pipe Welding and Positioning Equipment

Welding Positioner Turntable  Application:
Welding Turning Tablecan be used at automatic welding or manual welding, such as pipe horizontal welding, tube end welding, axle, tray and barrel, it can be wildly used in the pressure vessels equipment, metallurgy, electric power, chemical machine etc industry.


Welding Positioner Turntable  Product Description:
The Welding Turning Table also called welding positioning equipment, is mainly used for some special structures, construction machines, small round workpieces, and more.Welding positioner is generally consists of worktable rotation mechanism, turnover mechanism and electric control system. The workpiece can be reach to the suitable position through worktable rotating and overturning. The worktable rotating controlled by frequency stepless conversion to achieve a best welding speed.


Welding Positioner Turntable Packing and Shipment:
HBJ 30 Type Welding Positioner Turntable for Flange and Pipe Welding and Positioning Equipment


Kindly Noted:
1.You can choose Fixed type or Elevating type .
2.Welding Positioner can tilting from 0° to 120°, rotation 360° via VFD control.
3. Standard Voltage is 380V , 50HZ , 3PH. Other voltage please kindly let us know.
4. Controlled is remote-control box, optional is foot switch
5. If customer need more special requirements , we could study with our engineer.
