HBJ-03 Type Welding Positioner with Hand Panel and Foot Panel, Pipe Turning Positioner

Get high-quality HBJ-03 Type Welding Positioner with Hand Panel and Foot Panel, Pipe Turning Positioner from our factory. Improve welding efficiency and accuracy.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Condition
New
Speed of Table
Manual
Size of Table
400mm
Turning Power
0.06kw
Max Gravity Distance
100mm
Tilt
/
Max Turning Distance
600mm
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Loat 300kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month

Product Description

HBJ-03 Type Welding Positioner With Hand Panel And Foot Panel, Pipe Turning Positioner

Quickly Details:
Type: Fixed Welding Positioner / Welding Turning Table
Brand:MISA
Condition:100% brand new
Model number:HBJ-03
Capacity:100kg-200,000 kg
Consist: (1) Main frame (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)

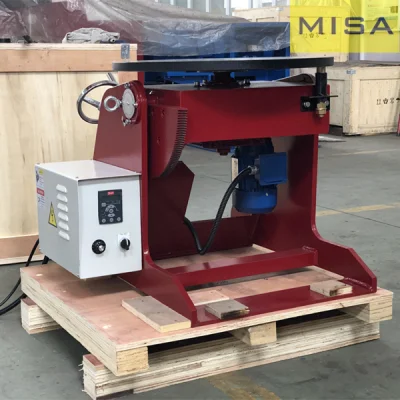

Product Photo:
HBJ-03 Type Welding Positioner with Hand Panel and Foot Panel, Pipe Turning Positioner

Product Parameter:
Model Rated load Cap
(tons)
Power (kw) Max Gravity Distance
(mm)
Max
centroid Eccentricity (mm)
Table Max Rotation Ф@ 90
degree
Tilt Angle (degree)
Turning Tilt Speed(rpm) Diameter (mm)
Rotation
(variable)
Tilt (constant)
HBJ-01 0.1 0.06     /. 100 150 0.40~4.0 man. 400 600 0~90
HBJ-03

0.3 0.37     /. 100 150 0.10~1.0 man. 600 800 0~90
HBJ-06

0.6 0.75 0.75 100 150 0.09~0.9 1.1 1000 1500 0~90
HBJ-12 1.2 1.1 1.5 150 200 0.05~0.5 0.67 1200 2050 0~120
HBJ-20 2 1.1 1.5 150 200 0.05~0.5 0.23 1400 2100 0~120
HBJ-30 3 1.5 2.2 200 200 0.05~0.5 0.23 1400 2100 0~120
HBJ-50 5 3 3 300 300 0.05~0.5 0.14 1500 2500 0~120
HBJ-80 8 3 3 300 300 0.05~0.2 0.14 2000 3240 0~120
HBJ-100 10 3 4 400 400 0.05~0.2 0.14 2000 3240 0~120
HBJ-150 15 3 5.5 500 200 0.05~0.5 0.14 2200 3400 0~120
HBJ-200 20 4 7.5 630 200 0.05~0.5 0.14 2500 3400 0~120

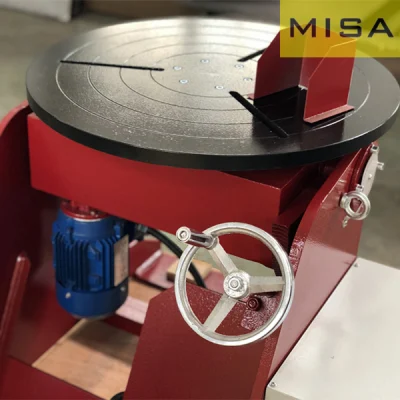

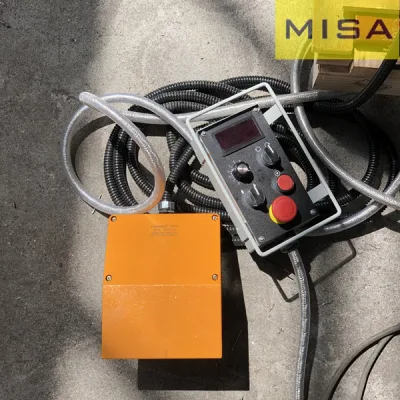

Detail Photo:
HBJ-03 Type Welding Positioner with Hand Panel and Foot Panel, Pipe Turning Positioner

HBJ-03 Type Welding Positioner with Hand Panel and Foot Panel, Pipe Turning Positioner
Application:
1. Pipe to pipe (or Elbow or Flange);
2. Welded Barrels
3. Storage tanks
4. Industrial drums
5. Tank and drum fabrication
6. Cylindrical structure cutting of cylindrical job pipe elbow
7. Framework of car , digger arm, loading machine , digger machine;

Product Description:
Positioners provide steel fabrication shops with the most up-to-date equipment for placing bulky fabrications in the 'downhand' position in the shortest possible time without the use of cranes and manpower. The positioners tables rotate at accurate and constant variable speeds and tilt through 135° with a high C.G. load rating covering almost all anglers for welding any angular job placed on it. Positioners can be supplied for interfacing with Column and Boom Manipulator.
This kind welding positioner mainly consists of mainframe, worktable, overturing unit, rotation unit, and electric control part, etc.
Mainframe, rotary table and cabinet combination of such components are welded, all welds of equal strength according to the requirements of welding seam, and remove the stress and prevent welding deformation processing.


Packing And Shipment:
HBJ-03 Type Welding Positioner with Hand Panel and Foot Panel, Pipe Turning Positioner

Kindly Noted:
1. You can choose Fixed type or Elevating type .
2. Welding Positioner can tilting from 0° to 120°, rotation 360° via VFD control.
3. Standard Voltage is 380V , 50HZ , 3PH. Other voltage please kindly let us know.
4. Controlled is remote-control box, optional is foot switch
5. If customer need more special requirements , we could study with our engineer.
