Headstock and Tailstock Turning Positioner for Assembly Handling and Welding

Shop our Headstock and Tailstock Turning Positioner for Assembly Handling and Welding. Perfect for factory use. Boost productivity with this essential equipment.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Product Features
Overview

Basic Info.

Model NO.
BWJ
Condition
New
Model
Bwj-200
Positioner Function
Robotic Welding Platform Rotary Positioner
Loading Weight
200kg
Rotary Table Size
Customized
Rotating Speed of Table
60 Degree/Min
Tilt Angle
360 Degree
Reducer Type
RV Reducer
Servo Motor
1.5kw
Robot Brand
Kuka,Funuc etc.
Lead Time
30 Days
Height Adjustment
Customized
Length Adjustment
Customized
Exported to
Europe,USA,UK,Russia etc
Warranty
1 Year
Radius of Gyration
400mm
Transport Package
Wooden
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Production Capacity
3000PCS/Year

Packaging & Delivery

Package Size
210.00cm * 170.00cm * 85.00cm
Package Gross Weight
560.000kg

Product Description

Product Description

Headstock and Tailstock turning positioner for assembly handling and welding
The use of welding auxiliary equipment (such as welding manipulator, welding rotator, welding turning tables) is conducive to the realization of mechanization and automation of welding production, and is conducive to improving the quality of assembly welding.
The welding turning machine is a kind of welding positioner, which is a welding piece displacement machine that rotates or tilts the workpiece around the horizontal axis, so that the workpiece is in a position that is conducive to welding.
There are many types of welding turning machines, the common ones are head and tail frame welding positioner, frame type welding positioner, U-type welding positioner, T-type welding positioner and the most popular sitting welding positioner .
They are widely used in automatic welding systems in chemical industry, railway transportation, metallurgy and other industrial sectors.

Product Parameters

By automating the positioning of the workpiece, head-tail welding positioners can improve the speed, efficiency, and safety of the welding process, reducing labor costs and minimizing the risk of accidents or errors.

Model BWJ-200A BWJ-500A BWJ-1000A
Max loading weight 200kg 500kg 1000kg
Table diameter 350mm 1000mm 1200mm
Rotating speed 60°/s 60°/s 40°/s
Repeatability ±1.0arc/m ±1.0arc/m ±1.0arc/m
Rotating angle ±360° ±360° ±360°
Eccentricity <=200mm <=250mm <=300mm
Center of gravity <=200mm <=250mm <=300mm
PV Reducer Chinese brand or Japanese

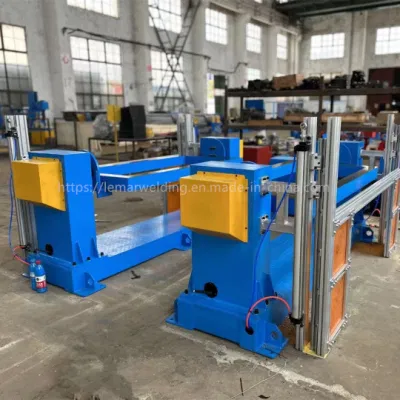

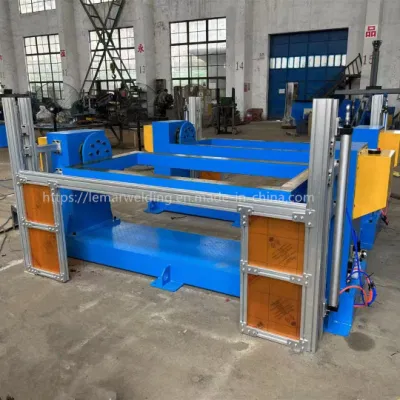

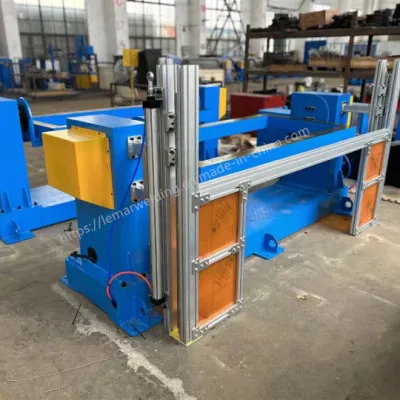

Headstock and Tailstock Turning Positioner for Assembly Handling and Welding
Headstock and Tailstock Turning Positioner for Assembly Handling and Welding
Headstock and Tailstock Turning Positioner for Assembly Handling and Welding

Product Features

The structure of the head and tail frame turning machine positioner is similar to that of a machine tool.
The headtail is the driving end and can be used alone. It is equipped with special welding fixtures (3 jaw chuck, 4 jas chuck or customized chucks) installed on the head frame to clamp the workpiece.
The tailstock of the turning machine can walk on the track, which is convenient to adjust the distance between the tailstock and the headstock according to the length of the workpiece.

The head and tail frame turning table is mainly used for the assembly and welding of rectangular workpieces such as beams, columns, frames, and elliptical containers.
• Heavy Welding Industry
• Robotic Welding, cutting and Assembly
• Production Welding
• Laser Applications
• Component Assembly
• Cleaning

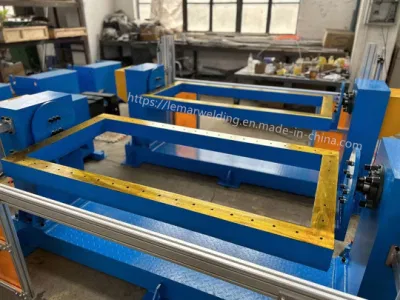

Headstock and Tailstock Turning Positioner for Assembly Handling and Welding
Headstock and Tailstock Turning Positioner for Assembly Handling and Welding
Headstock and Tailstock Turning Positioner for Assembly Handling and Welding
Headstock and Tailstock Turning Positioner for Assembly Handling and Welding
Headstock and Tailstock Turning Positioner for Assembly Handling and Welding
Headstock and Tailstock Turning Positioner for Assembly Handling and Welding
Headstock and Tailstock Turning Positioner for Assembly Handling and Welding How to choose a good rotary welding positioner turntables supplier?
1. Professional knowledge and experience: It is very important to choose a supplier with rich experience, profound knowledge and professional knowledge in the field of automatic welding and cutting beveling such as pipe flanges and cylinders, and a supplier with a good reputation is required.
2. Product Quality: When selecting a supplier, it is important to ensure that they provide high-quality products. Examine the materials used, construction techniques and the overall durability of the product.
Wuxi Lemar is mainly engaged in research and development, manufacture and sale, CNC Plasma cutting machine and Automatic welding equipment such as H-beam welding production line (light type, heavy type), box beam welding production line, horizontal assembly&welding production line, adjustable welding rotator, self-aligning welding turning rolls,seat type welding positioner,robotic welding turning assembly positioner,Customized positioners,3 jaw 4 jaw welding chuck,Straight seam welding machines,Circular seam welding machines,Column and boom TIG MIG SAW Tank and vessel welding manipulators, etc.,
3. Customer Service: A good supplier should provide excellent customer service. They provide technical assistance and assist with any issues that may arise.
4. Customization: It is important to choose a supplier who can provide a customized solution to meet your specific needs. Find a supplier who can work with you to understand your requirements and provide a custom solution. Wuxi Lemar can produce welding positioner, welding rotator and welding manipulators customized.
5. Pricing: Pricing is an important factor when selecting a supplier. Look for suppliers who offer competitive prices without compromising quality.

Headstock and Tailstock Turning Positioner for Assembly Handling and Welding
