Hgk-400 Adjustable Automatic Vessel/Tank Welding Turning Roller

Get top-quality Hgk-400 Adjustable Automatic Vessel/Tank Welding Turning Roller from our factory. High performance and precision welding equipment.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HGK-400
Trademark
Fengwei
Origin
China
HS Code
8428909090
Production Capacity
300 Sets/Month

Product Description

Product Description

Offering the widest variety and capacity ranges of turning rolls in the world,Fengwei always has a fit for your application. Variable speed powered rotation with constant or variable wheel centerline settings are available.

Rubber, Steel, Urethane, and Micarta (phenolic) wheels are also available. Traditional, Unitized, Self-Adjusting (SA), Trac-Tred®, Turbine, and Tilting rolls are just some of the models we offer.

Manual or powered mobile sub-base cars can be included for quick adjustment of varying vessel lengths. Special engineered turning rolls are always available.

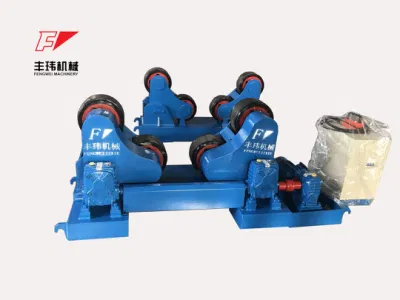

HGK Adjustable Turning Rolls mainly consist of powered rotator, idle rotator, driving reducer system, and control system etc. It is mainly used for longitudinal and circular seam welding of cylinders linked with submerged arc welder.


Technical Parametre

Type Max load weight(kg) Size limit of suitable product(mm) Diameter and width of the wheel(mm) Wheel linear velocity(m/h) Power of motor(kw) Adjustable Mode for Space Setting Method
Robber rollers  Meter rollers
HGK-2 2000 ¢200-1200 ¢200*100 2*¢190*16 6-60 2*0.18 Manual screw
arbor control or
conventional
power grading
Variable
frequency
stepless speed
regulation or
dc stepless
speed regulation
HGK-5 5000 ¢250-2300 ¢250*100 2*¢240*20 6-60 2*0.37
HGK-10 10000 ¢300-2800 ¢300*120 2*¢290*25 6-60 2*0.55
HGK-20 20000 ¢500-3500 ¢350*120 2*¢340*35 6-60 2*1.1
HGK-40 40000 ¢600-4200 ¢400*120 2*¢390*45 6-60 2*1.5
HGK-60 60000 ¢750-4800 ¢450*120 2*¢440*60 6-60 2*2.2 Conventional
power grading
control
HGK-80 80000 ¢850-5000 ¢500*120 2*¢490*70 6-60 2*3
HGK-100 100000 ¢1000-5500 ¢500*120 2*¢490*80 6-60 2*3
HGK-150 150000 ¢1000-6000 / ¢620*220 6-60 2*4
HGK-250 250000 ¢1100-7500 / ¢660*260 6-60 2*5.5
HGK-400 400000 ¢1100-7500 / ¢750*320 6-60 2*7.5
HGK-500 500000 ¢1100-7500 / ¢750*400 6-60 2*11



Hgk-400 Adjustable Automatic Vessel/Tank Welding Turning Roller
Hgk-400 Adjustable Automatic Vessel/Tank Welding Turning Roller
Hgk-400 Adjustable Automatic Vessel/Tank Welding Turning Roller
Hgk-400 Adjustable Automatic Vessel/Tank Welding Turning Roller
Hgk-400 Adjustable Automatic Vessel/Tank Welding Turning Roller
Hgk-400 Adjustable Automatic Vessel/Tank Welding Turning Roller
Hgk-400 Adjustable Automatic Vessel/Tank Welding Turning Roller
