Hydraulic Rotator Mounted for Timber Crane

Find high-quality Hydraulic Rotator Mounted for Timber Crane at our factory. Our products are designed for durability and performance. Order now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Company Profile
  • Packaging & Shipping
  • Certifications
  • Contact Way
Overview

Basic Info.

Model NO.
GR
Lifting Capacity
1ton - 12ton
Usage
Lift and Rotate
Rotation
Unlimited
Transport Package
Wooden Box
Specification
1ton - 12ton
Trademark
RIMA
Origin
Shandong
Production Capacity
500PCS/Month

Product Description

            1ton ~ 16ton Hydraulic Grapple Rotator Foresty Rotater


Product Description

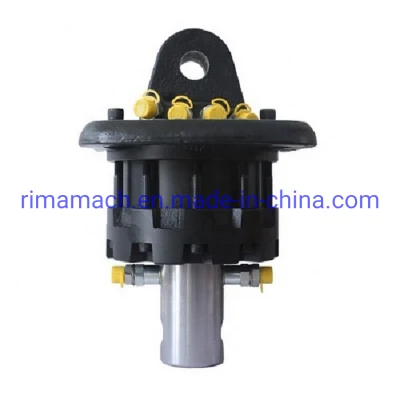

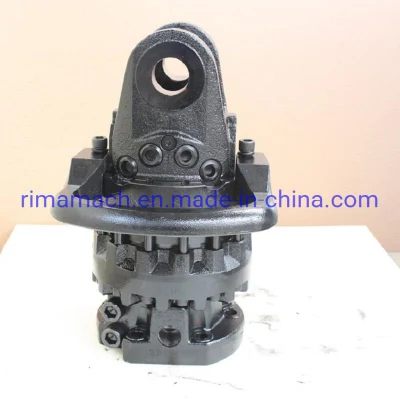

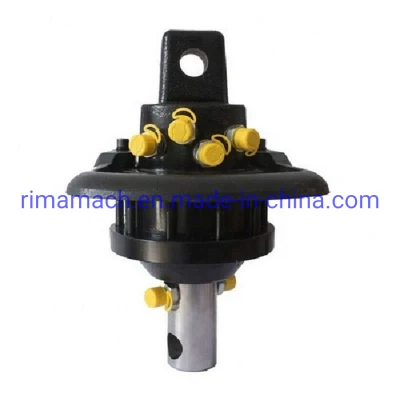

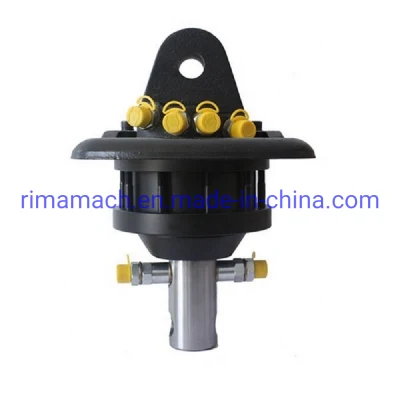

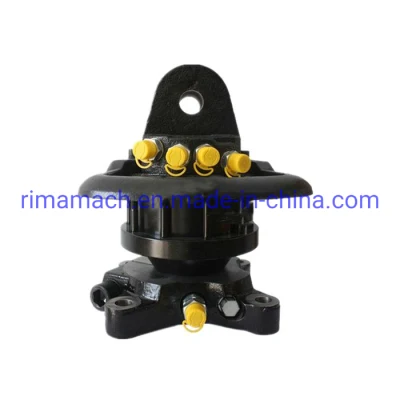

RIMA HYDRAULIC ROTATOR is a hydraulically powered gear which turns 360 degrees in each direction and is used for turning, positioning and powering of the tool (e.g. grapple) attached to crane.


Hydraulic Rotator Mounted for Timber Crane Hydraulic Rotator Mounted for Timber Crane
Model Max axial load statick (KN) Max axial load dynamic (KN) Torque 25MPa (Nm) Tated Displacement (ML/R) Weight (KG)
GR10 10 5 450 193 10
GR30A 30 15 900 330 16
GR30B 30 15 900 330 16
GR30F 30 15 900 330 22
GR40 40 20 1100 420 23
GR40F 40 20 1100 420 28
GR50 50 25 1400 465 28
GR50F 55 25 1400 465 33
GR60 60 38 1800 670 45
GR60-2 60 30 1800 670 47
GR60F 60 30 1800 678 48
GR60F-2 60 30 1800 678 50
GR100FD +100/-80 +50/-40 2700 871 64
GR100FD-2 +100/-80 +50/-40 2700 871 67
GR120FD +120/-90 +60/-45 2900 949 76
GR120FD-2 +120/-90 +60/-45 2900 949 79
Hydraulic Rotator Mounted for Timber Crane

Company Profile



RIMA is established in 2009,located in Xibeiyu Industry Zone,Laizhou,Shandong,China.
its strong technique power,complete set of manufacture equipments and experimental devices,advanced CAD R&D means, the company has complete production capaicty from cutting,profiling,welding,maching,paiting to packing.

RIMA  has aleady manufactured a full range of high quality implements for the small to medium-sized tractor owners across the world,Such as Front End loader, Backhoe, Mower, rotary tiller, Wood Chipper, Log Splitter, Post Hole Diggers. more than 50 serials and more than 150 models of various implements.
