Basic Info.
Model NO.
LMCN
Max Eccentricity Distance
200mm
Tilting Angle
0-120°
Voltage
110V/220V
Condition
New
Function
Pipe Flange Welding Turning Table
Loading Weight
30kg 50kg 100kg CNC Welding Positioner
Table Diameter
315mm
Center Hole Diameter
25/65mm
Positioner Level Height
380mm
Lead Time
3 Days
Suitable Chuck
Kd-150/200/300/400/500/600
Rotate Speed
2-20rpm
Filt Mode
Manual
Optional
TIG MIG Mag Welder
Welder Holder
Yes
Oversize
Customized
Warranty
1 Year
Control Mode
CNC
Delivery Time
3 Days
Transport Package
Wooden Box
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Production Capacity
3000PCS/Year
Packaging & Delivery
Package Size
52.00cm * 52.00cm * 60.00cm
Package Gross Weight
55.000kg
Product Description

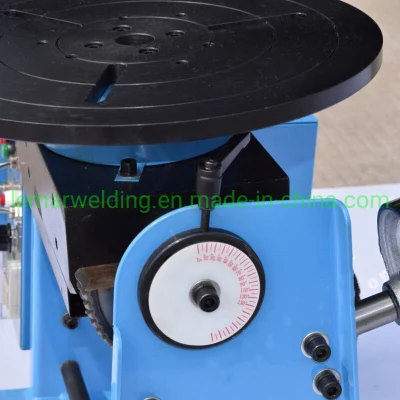

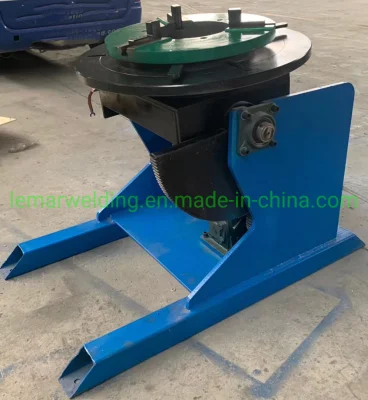

30kg 50kg 100kg Pipe Flange dual guide rail Pneumatic CNC welding positioner
The welding Turning table positioner can be rotated at 360 ° such as round workpiece such as PIPE FLANGE through VFD control.
The device is equipped with wireless remote control box and foot switch
The voltage standard for automatic welding variables is 380V, 50Hz, and 3PH. Other voltages can be customized.
The welded bearing bearing load from 10kg, 30kg, 50kg, 100kg, 300kg, 600kg, 1000kg, 2000kg, 3000kg, 5000kg, 8000kg, 10000kg, 20000kg, etc., according to the weight of customer workpieces, the well -matched Rotary Turning Table.
Standard specification:

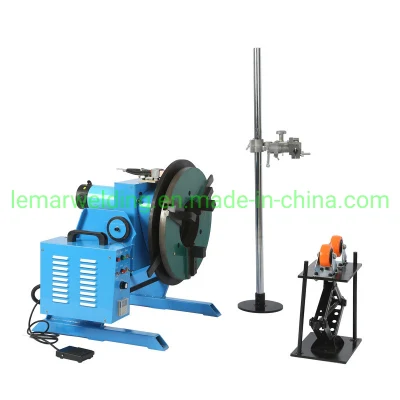

30kg 50kg 100kg CNC welding variable machine
Control box
Pedal switch
Power cable
Manual
Qualification certificate
Optional:
Pneumatic gun holder
Pneumatic tailstock
Roller support frame (can support longer work-pieces)

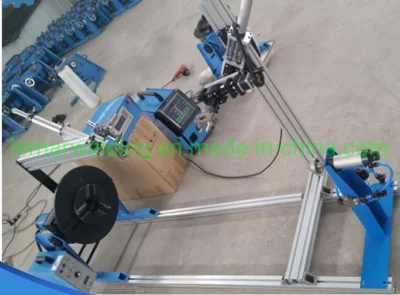

Double or single aluminum rail
Specifications:

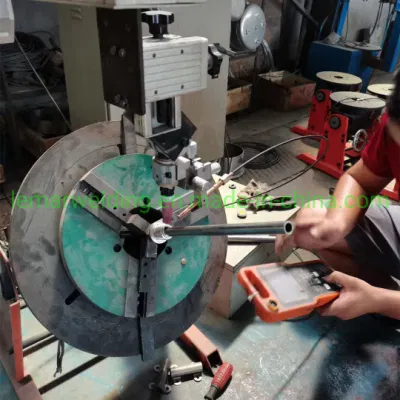

1. Welding stand cartridge
Choose according to the diameter of the pipe
2. Manual gun rack
Manually adjust the MIG TIG MAG GAS welding torch forward
3. pneumatic gun rack
Pneumatic adjustment MIG TIG MAG GAS welding torch forward
4. Pneumatic tail seat
By the end of the pipe tube, the other end of the pipe is guaranteed to be concentric
5. Roller support rack
For longer workpieces, it plays a role in supporting
The welding Turning table positioner can be rotated at 360 ° such as round workpiece such as PIPE FLANGE through VFD control.
The device is equipped with wireless remote control box and foot switch
The voltage standard for automatic welding variables is 380V, 50Hz, and 3PH. Other voltages can be customized.
The welded bearing bearing load from 10kg, 30kg, 50kg, 100kg, 300kg, 600kg, 1000kg, 2000kg, 3000kg, 5000kg, 8000kg, 10000kg, 20000kg, etc., according to the weight of customer workpieces, the well -matched Rotary Turning Table.
Standard specification:
30kg 50kg 100kg CNC welding variable machine
Control box
Pedal switch
Power cable
Manual
Qualification certificate
Optional:
Pneumatic gun holder
Pneumatic tailstock
Roller support frame (can support longer work-pieces)
Double or single aluminum rail
| Item | LMCN30 | LMCN50 | LMCN100 | LMCN300 |
| Horizontal loading | 30 | 50 | 100 | 300 |
| Vertical loading | 15 | 25 | 50 | 150 |
| Table diameter | Ø315 | Ø315 | Ø400 | Ø500 |
| Center hole diameter | Ø25/65 | Ø25/65 | Ø45/80/140/170 | Ø90 |
| Positioner level height | 380 | 380 | 520 | 650 |
| Swing speed | 0.01~5.00 | 0.01~5.00 | 0.01~5.00 | 0.01~5.00 |
| Rotary motor | 57 stepper motor | 86 stepper motor | ||
| Flip angle | 0~90. | 0~90. | 0~90. | 0~90. |
| Input voltage | 1Ph/220V/50Hz | 1Ph/220V/50Hz | 1Ph/220V/50Hz | 1Ph/220V/50Hz |
| Control method | Touch + hand control | |||
| Optional chuck model | KD-125/200/300 | KD-200/300/400 | KD-300/400/500 | |
Choose according to the diameter of the pipe
2. Manual gun rack
Manually adjust the MIG TIG MAG GAS welding torch forward
3. pneumatic gun rack
Pneumatic adjustment MIG TIG MAG GAS welding torch forward
4. Pneumatic tail seat
By the end of the pipe tube, the other end of the pipe is guaranteed to be concentric
5. Roller support rack
For longer workpieces, it plays a role in supporting
