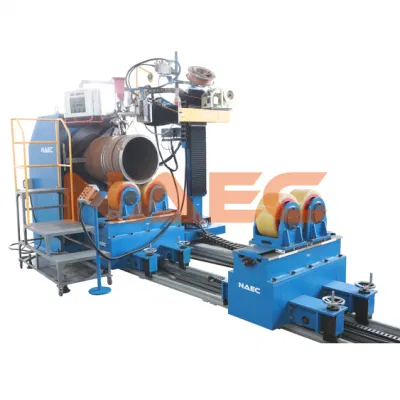

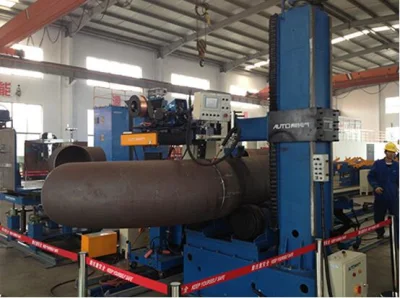

Manufacture Pipe Tube Welding Manipulator for All Types

Manufacture Pipe Tube Welding Manipulator for all types. We are a factory specializing in welding manipulator production for various applications.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Rmd-MIG Welding Speed
100mm/Min-Above 200mm/Min
Current
Direct Current
Model
Bx4
Application
Container
Transport Package
Packed in Container
Specification
ISO9001: 2008
Trademark
NAEC
Origin
China
HS Code
85153190
Production Capacity
200 Sets/Year

Product Description

NAEC-Provides Lean Fabrication Solution

Suitable for industries of: OIL AND GAS, REFINERY FACILITIES, OFFSHORE &SHIPBUILDING, POWER PLANT, ETC

Reference: CCC, L&T, AIM, Petrol Steel, THHE, MMHE, ETC.

Welding Speed Explanation

Manufacture Pipe Tube Welding Manipulator for All Types
Features:
1.Adpot PLC/WPS program to ensure best quality and best efficiency;
2. Cold wire TIG: welding speed is 75mm/min for S.S. root pass, and above 100mm/min for C.S. root pass;
3. RMD-MIG: welding speed is from 100mm/min to above 200mm/min;
4. Pulse-MIG: Welding speed is above 250mm/min for fill and cap pass;
5. SAW: can be suitable for small pipe near 4", welding speed for fill and cap is from 250-500mm/min.
or more information, ple

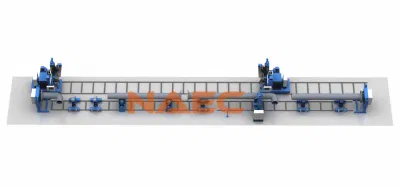

Pipe Spool Fabrication Machines

1 Manufacture Pipe Tube Welding Manipulator for All Types

Pipe Cutting& Beveling All-in-one Machine

>Suitable for pipes not larger than 8",max.thickness:20mm

>Cutting efficiency:100times/8hrs

>PLC control with automatic measuring to guarantee the same processing cycle

>Widely used for small bore C.S/S.S production lines

2 Manufacture Pipe Tube Welding Manipulator for All Types

High Speed Band-saw Cutting Machine

>Three models available(16"type,24"type",48"type)

>PLC system control;self-measuring function with precision:±0.5mm

>Using hydraulic self-centering chuck

>It only takes 6 minutes to cut a 24" pipe of 25mm thickness

>Widely used for C.S/S.S production lines.

3 Manufacture Pipe Tube Welding Manipulator for All Types

High Speed CNC Pipe End Beveling Machine

>Automatic self-centering chuck

>Single V,double V,U type bevel

>Can be matched with pipe end turning devic

>High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm)

>Several models available:16",24",32",48"

4 Manufacture Pipe Tube Welding Manipulator for All Types

Two / Multi- Axis CNC Flame/Plasma Cutting Machine
>High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe.

>Five/multi-axis cutting machine can profile more complicated outlines with various bevel type

>Standard machine suitable for pipes nor larger than 24''

5 Manufacture Pipe Tube Welding Manipulator for All Types

Multi-function Pipe Fitting-up Station

>Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up.

>Light-duty type(manual) and heavy-duty type(motorized) are available.

>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type

6 Manufacture Pipe Tube Welding Manipulator for All Types

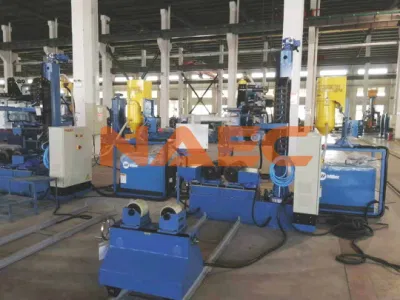

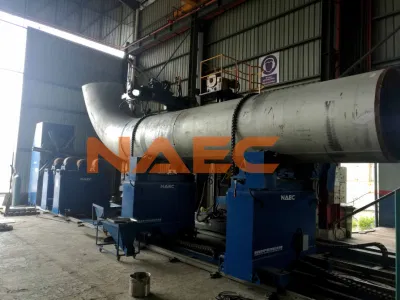

Automatic Pipe Welding Station

>With two welding heads

>TIG/MIG/SAW are optional

>PLC system control & WPS programmed

>Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology.

>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type

7 Manufacture Pipe Tube Welding Manipulator for All Types

Conveyor Handling System

>used for pipe convenient transporation during in pipe spool fabrication.

>Its speed is adjustable between 2M to 20M/min.

For more information, please contact us, thank you!
