Poultry Farm House Steel Structure Shed Chicken House with Gable Frame

Looking for a reliable Poultry Farm House Steel Structure Shed Chicken House with Gable Frame? Look no further! We are a factory with quality products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Packing and Shipping
  • project exhibition
  • company introduce
Overview

Basic Info.

Model NO.
XGZ
Computerized
Computerized
Certification
ISO9001:2008, CE
Condition
New
Product Name
Steel Structure Poultry House
Roof
PU Sandwich Panel
Wall
PU Sandwich Panel
Door
Industrial Folding up Door
Transport Package
Standard Container
Specification
40 feet container
Trademark
XGZ
Origin
China Qingdao
HS Code
9406900090
Production Capacity
30000sets Per Month

Product Description

Poultry Farm House Steel Structure Shed Chicken House with Gable Frame

Qingdao Xinguangzheng Husbandry Co., Ltd is a subsidiary of Qingdao Xinguangzheng group.  We pay attention to design and product quality. We have 6 branch factories and 100 senior engineers now. Our company main product are steel structure buildings, such as factory, warehouse, poultry house, exhibition hall and so on. We also produce poultry equipment, such as feed pan, water drinking system, environment control system. We keep in good connection with the oversea merchants, and have exported our products to over 80 countries. Our services and product quantity are praised by most of our clients. Welcome to visit our company!

Product Description

House Parameter Item Details
Product name Cheap steel structure building automatic equipment system broiler poultry shed chicken house
Application Broiler house, layer house, breeding house, brood house etc
Frame type Portal frame or steel roof truss
Main steel frame H beam or square pipe with anti-rust paint or hot dip galvanized
Roof &cladding 75mm Glass wool sandwich panel composite on site
Door Special insulation door for poultry house
Window Plastic steel sliding window
Brick wall 300mm,500mm,800mm
Equipment Configuration Main feeding line system
Including silo, feed conveyor,drive system,sensor ,main drop,main feed line and accessories
Feed pan system
Including hopper,drive system,sensor,delivery system with feed
pan,winch and accessories
Nipple drinking system
Including medicator,waterline system,drinking system,winch and its
accessories
Curtain system(For open type house)
Including curtain,rodent-resistant net ,winch and accessories
Electric control system Mainly including environmental handler, control box, cooling pad with water pump, air deflector, spraying system, suction fan, air inlet window. To lower the temperature and ventilation which ensure the chicken respiration
Lighting system Mainly including LED bulb and waterproof wire. To provide simulated natural light, more suitable for chicken growth
Heating system Mainly refer to heating equipment. Ensure the temperature needed by chickens in the growing period

No. Item Remark
1 Main feeding system This system deliversfeed from the silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line which control the motor on and off automatical to release automatic delivery.
2 Feed pan system This system delivery feed automatically through motor under the control of feed sensor, which ensure birds feeding during whole growing period.

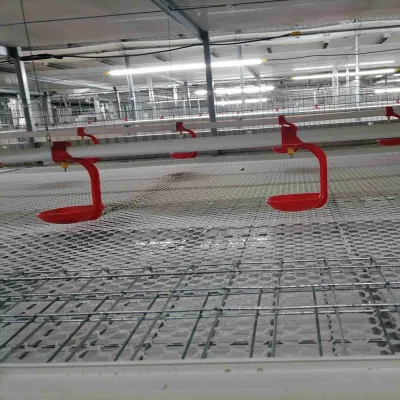

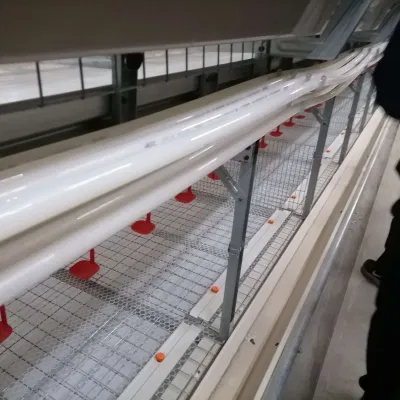

3 Nipple drinking system This system can provide fresh and clean water for poultry which is crucial for the growing of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and make drinking easier.

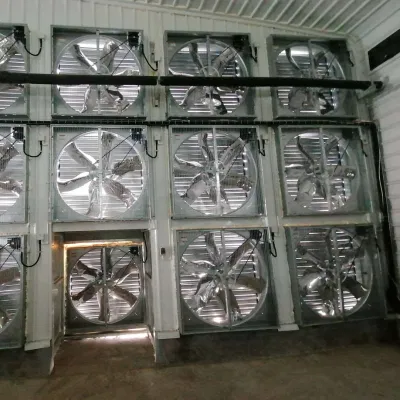

4 Ventilation system This system controls climate conditions, fresh air, humidity and temperature in poultry shed, it is vital for growing birds. This system include poultry house fan, cooling pad, air inlet window.
5 Environmental control system This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working mode according to the local climate and raising environment.
6 Spraying system This system effectively cools, humidifies, dedusts and disinfects the henhouse (the temperature is quickly reduced by 3-8 degrees centigrade within a few minutes).

Poultry Farm House Steel Structure Shed Chicken House with Gable Frame
Packing and Shipping

PACKAGING& LOADING
1. All standard components are packed in plywood box.
2. All steel structure weld components are packed with blanket or bubble-wrap to avoid scratch during loading and unloading.
3. All steel structure are packed in steel pallet together into container, much save loading and unloading time, labor cost.
4. All sandwich panel are packed in steel pallet.
5. Material components will be made container load plan, also make regional unloading plan to avoid retransport on site.

Port
6. All equipment pasted with English lable
7. Small equipment will packed in carton or plywood box


TRANSPORTATION
We have more than 10 logistics companies that have cooperated with us for many years and can apply for the most favorable transporation charage for you.

Poultry Farm House Steel Structure Shed Chicken House with Gable Frame

project exhibition

Poultry Farm House Steel Structure Shed Chicken House with Gable Frame
Poultry Farm House Steel Structure Shed Chicken House with Gable Frame

company introduce

Qingdao Xinguangzheng Husbandry Co., Ltd is a subsidiary of Qingdao Xinguangzheng group. We pay attention to design and product quality. We have 6 branch factories and 100 senior engineers now. Our company main product are steel structure buildings, such as factory, warehouse, poultry house, exhibition hall and so on. We also produce poultry equipment, such as feed pan, water drinking system, environment control system. We've taken part in the construction projects like Haier, Hisense, Tsingtao Beer, Qingdao New Air Port, etc. We keep in good connection with the oversea merchants, and have exported our products to over 80 countries. Our services and product quantity are praised by most of our clients.

Poultry Farm House Steel Structure Shed Chicken House with Gable Frame
