Pressure Vessel Welding Manipulator/Welding Column and Boom

Product Description

Welding manipulator/welding column and boom is a kind of widely-used and high-automated auxiliary equipment in welding industry.Through the rotation of column and retraction&lifting of boom,welding manipulator meets welding requirements of cylinders with different sizes. Welding head is fixed at one end of welding manipulator to carry out automatic welding.This kind of welding manipulator could also be operated together with welding rotator/tank turning roller to carry out round and longitudinal welding of inside and outside seam,which has got extensive application in Boiler,Petrochemical,Shipbuilding and Steel structure industries

Pressure Vessel Welding Manipulator with Welding Column and Boom
Pressure Vessel Welding Manipulator with Welding Column and Boom
Pressure Vessel Welding Manipulator with Welding Column and Boom

Product features

1, Structure:fixed type,fixed with rotation type and movable type
2, Both column and boom are cold-blended and goes through annealing treatment
3, There is anti-falling device to ensure the safety of boom lifting
4, Boom retracting adopts VFD,being stable and reliable
5, X-Y slide is fixed on one end of boom,which can be controlled by hand control panel
6, Control roller bears eccentric shaft,which can decrease clearance between roller and rail
7, Column revolve could be recognized by manual operation or electric drive
8, Control unit includes:electric control board and hand control panel.Interface with positioner and rotator is offered
9, Operation:Trolley,Director chair or platform,drag chain,seam tracking and monitor system,and flux recovery system.

Product Parameters

Model LHQ/Light LH/Medium LHM/Heavy LHW/Super Heavy
Boom Lifting Stroke(meter) 1-3 2-4 2-8 2-13
Boom Retracting Stroke(meter) 1-3 1-4 2-8 4-12
Lifting Speed(mm/min) 800 800 800 800
Retracting Speed(mm/min) 120-1200 120-1200 120-1200 120-1200
Column Rotation Angle +-180 +-180 +-180/360 +-180
Speed(rpm) Manual 0.11Manual 0.11Manual 0.10Manual
Trolley Travel Speed(mm/min) Manual 2000 2000 2000
Trolley Span(mm) 1060 1500 2000 2500

Detailed Photos

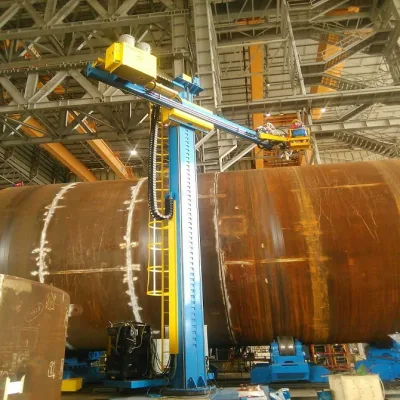

Pressure Vessel Welding Manipulator with Welding Column and Boom

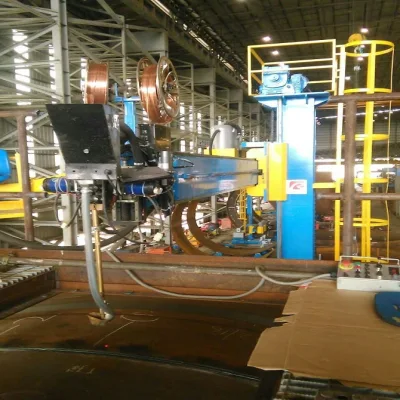

Pressure Vessel Welding Manipulator with Welding Column and Boom

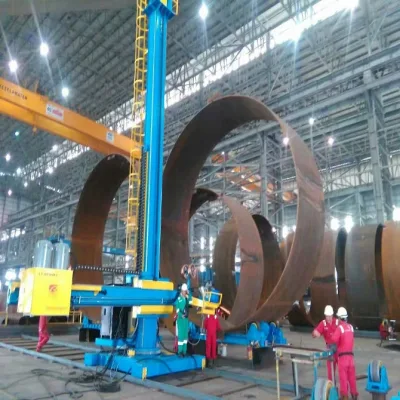

Pressure Vessel Welding Manipulator with Welding Column and Boom

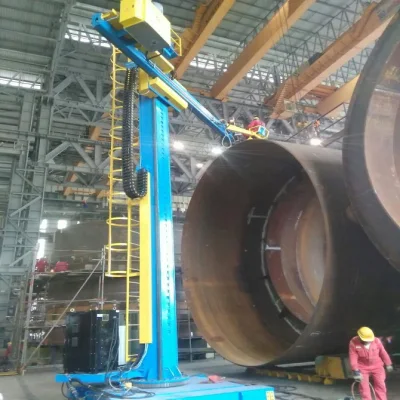

Pressure Vessel Welding Manipulator with Welding Column and Boom

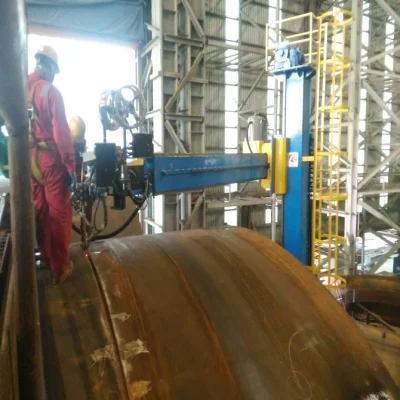

Pressure Vessel Welding Manipulator with Welding Column and Boom
