Rotation Table Pipe Welding Turning Table Elbow Turntable Welding and Positioning Equipment

Product Name: WeldPro-360 Welding and Positioning Equipment Description: Get top-quality Rotation Table Pipe Welding Turning Table Elbow Turntable Welding and Positioning Equipment from our factory. Perfect for all your welding needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
FTP-10
Speed of Table
0.67rpm
Size of Table
1,200mm
Turning Power
1.1kw
Tilt
-
Max Gravity Distance
200mm
Max Turning Distance
2050mm
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Load 1, 000kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month

Product Description

Rotation Table Pipe Welding Turning Table Elbow Turntable Welding And Positioning Equipment


The welding turn table is an ideal accessory for all kinds of CNC milling machines and machining centers. It is installed horizontally on the worktable of the main machine, and uses the control system of the main machine or a special matching control system to complete the indexing and rotation motions of various processing coordinated with the main machine during work. For some small and medium-sized parts, it can realize multi-process processing under the same clamping, and the productivity of the machine tool can be improved.

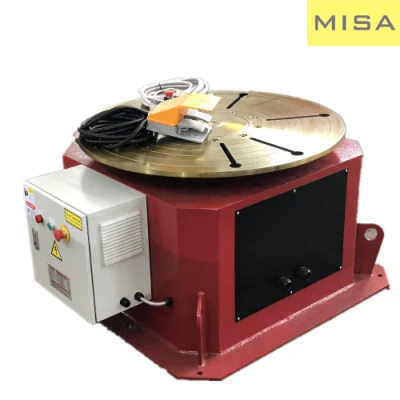

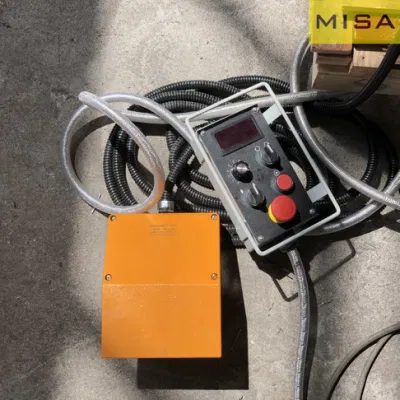

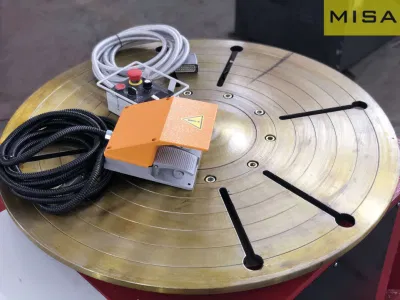

Welding Turning Table Product Photo:
Rotation Table Pipe Welding Turning Table Elbow Turntable Welding and Positioning Equipment
Rotation Table Pipe Welding Turning Table Elbow Turntable Welding and Positioning Equipment
Rotation Table Pipe Welding Turning Table Elbow Turntable Welding and Positioning Equipment


Welding Turning Table Product Parameter:
Model Rated load Cap
(tons)
Power (kw) Max Gravity Distance
(mm)
Max
centroid Eccentricity (mm)
Table Max Rotation Ф@ 90
degree
Tilt Angle (degree)
Turning Tilt Speed(rpm) Diameter (mm)
Rotation
(variable)
Tilt (constant)
HBJ-01 0.1 0.06     /. 100 150 0.40~4.0 man. 400 600 0~90
HBJ-03

0.3 0.37     /. 100 150 0.10~1.0 man. 600 800 0~90
HBJ-06

0.6 0.75 0.75 100 150 0.09~0.9 1.1 1000 1500 0~90
HBJ-12 1.2 1.1 1.5 150 200 0.05~0.5 0.67 1200 2050 0~120
HBJ-20 2 1.1 1.5 150 200 0.05~0.5 0.23 1400 2100 0~120
HBJ-30 3 1.5 2.2 200 200 0.05~0.5 0.23 1400 2100 0~120
HBJ-50 5 3 3 300 300 0.05~0.5 0.14 1500 2500 0~120
HBJ-80 8 3 3 300 300 0.05~0.2 0.14 2000 3240 0~120
HBJ-100 10 3 4 400 400 0.05~0.2 0.14 2000 3240 0~120
HBJ-150 15 3 5.5 500 200 0.05~0.5 0.14 2200 3400 0~120
HBJ-200 20 4 7.5 630 200 0.05~0.5 0.14 2500 3400 0~120

At present, in the machinery manufacturing industry, positioners with different functions are often used in the processing and manufacturing of some complex sheet metal riveting workpieces. The positioner is a special welding auxiliary equipment suitable for the welding displacement of the rotary work to obtain Ideal processing position and welding speed. Each type of positioner is divided into several types according to its structural characteristics or functions, which are suitable for different shapes of workpieces, but most of the structures are complex and the workpiece loading and unloading process is tedious and wastes man-hours. It is not practical for processing some simple shape and structure workpieces.

The purpose of the welding turning table produced by MISA is to provide a welding positioner, which has a simple structure and can simplify the process of loading and unloading workpieces during production, thereby saving man-hours.

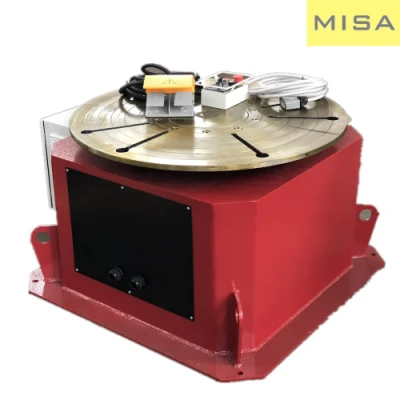

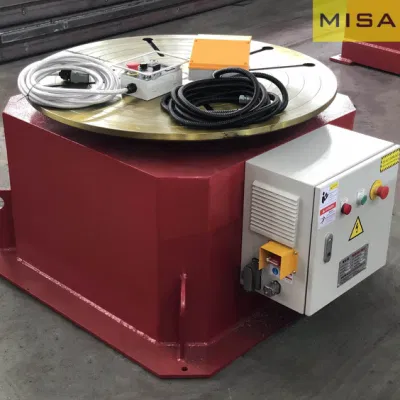

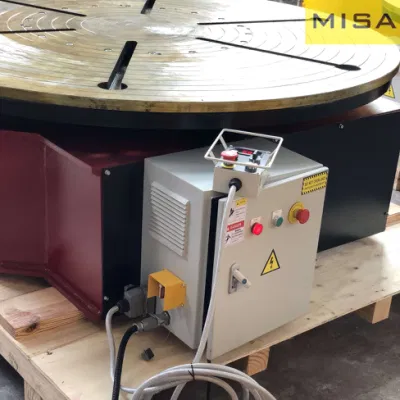

Welding Turning Table Detail Photo:
Rotation Table Pipe Welding Turning Table Elbow Turntable Welding and Positioning Equipment
Rotation Table Pipe Welding Turning Table Elbow Turntable Welding and Positioning Equipment
Rotation Table Pipe Welding Turning Table Elbow Turntable Welding and Positioning Equipment


Welding Turning Table Application:
Welding Turning Tablecan be used at automatic welding or manual welding, such as pipe horizontal welding, tube end welding, axle, tray and barrel, it can be wildly used in the pressure vessels equipment, metallurgy, electric power, chemical machine etc industry.

Welding Positioner Turntable Product Description:
The Welding Turning Table also called welding positioning equipment, is mainly used for some special structures, construction machines, small round workpieces, and more.Welding positioner is generally consists of worktable rotation mechanism, turnover mechanism and electric control system. The workpiece can be reach to the suitable position through worktable rotating and overturning. The worktable rotating controlled by frequency stepless conversion to achieve a best welding speed.

Welding Turning Table Packing and Shipment:
Rotation Table Pipe Welding Turning Table Elbow Turntable Welding and Positioning Equipment
Rotation Table Pipe Welding Turning Table Elbow Turntable Welding and Positioning Equipment



Kindly Noted:
1.You can choose Fixed type or Elevating type .
2.Welding Positioner can tilting from 0° to 120°, rotation 360° via VFD control.
3. Standard Voltage is 380V , 50HZ , 3PH. Other voltage please kindly let us know.
4. Controlled is remote-control box, optional is foot switch
5. If customer need more special requirements , we could study with our engineer.


Related Products:
Rotation Table Pipe Welding Turning Table Elbow Turntable Welding and Positioning Equipment
Rotation Table Pipe Welding Turning Table Elbow Turntable Welding and Positioning Equipment
Rotation Table Pipe Welding Turning Table Elbow Turntable Welding and Positioning Equipment

FAQ:

1. Do you provide warranty?
We provide a 13-month warranty and can provide customers with technical guidance for life.

2. Can your equipment be customized?
Yes. We have a professional design team, which can be customized according to customer requirements.

3. Are you an agent or a manufacturer?
We are a manufacturer and our factory is located in Wuxi City, Jiangsu Province, China.

4. What is the size of the faceplate?
The faceplate of the positioner can be selected according to the load capacity , or customized according to customer requirements. The faceplate has T-slots which can be used to fix the chuck.

5. What is the difference between the positioner and turning table?
The turning table can only rotation, and it is 1 Axis. The positioner can rotation and tilting, and it is 2 Axis. Customers can choose according to their needs.
We also have many types of positioners to choose from to meet the work needs of customers for different workpieces.
