Self-Aligned Welding Rotator/Conventional Vessel Turning Rolls/Pipe Walking Turning Roller

Introducing our high-quality {Self-Aligned Welding Rotator/Conventional Vessel Turning Rolls/Pipe Walking Turning Roller} for precise and efficient welding. As a factory, we ensure top-notch products for all your industrial needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Customers of Zhou Xiang
  • Main Products
  • Company Profile
Overview

Basic Info.

Model NO.
glhk
Condition
New
Usage
Pipe Welding
Load Weight
3t-300t
Roller Material
Rubber or PU or Metal
Warranty
1 Year
Transport Package
Steel Frame
Trademark
Zhouxiang
Origin
China
HS Code
8468800000
Production Capacity
50sets/Month

Product Description

Self-Aligned Welding Rotator/Conventional Vessel Turning Rolls/Pipe Walking Turning Roller
Type

Max  load weight(kg)

Range of suitable wrokpiece(mm)

Diameter and width of the wheel

Roller linear speed(m/h)

Motor power(kw)

Rubber roller (mm)

Metal roller

(mm)

GLHK-3

3000

φ250-φ1800

Φ200*100

2*Φ194*20

6-60

2*0.25

GLHK-5

5000

φ250-φ2300

Φ250*100

2*Φ240*20

6-60

2*0.37

GLHK-10

10000

φ320-φ2800

Φ300*120

2*Φ290*25

6-60

2*0.55

GLHK-20

20000

φ500-φ3500

Φ350*120

2*Φ340*30

6-60

2*1.1

GLHK-40

40000

φ600-φ4200

Φ400*120

2*Φ390*40

6-60

2*1.5

GLHK-60

60000

φ750-φ4800

Φ450*120

2*Φ440*50

6-60

2*2.2

GLHK-80

80000

φ850-φ5000

Φ500*120

2*Φ490*60

6-60

2*3

GLHK-100

100000

φ1000-φ5500

Φ500*120

2*Φ490*70

6-60

2*3

GLHK-160

160000

φ1100-φ6000



Φ620*220

6-60

2*4

GLHK-250

250000

φ1200-φ7000



Φ700*280

6-60

2*5.5

GLHK-500

500000

φ1500-φ8000



Φ850*350

6-60

2*7.5

GLHK-630

630000

φ1500-φ9000



Φ900*380

6-60

2*11

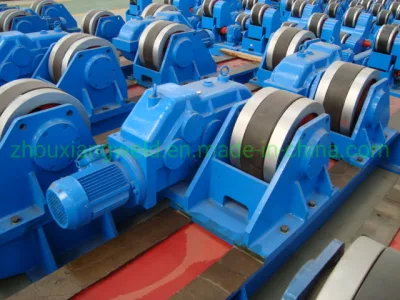

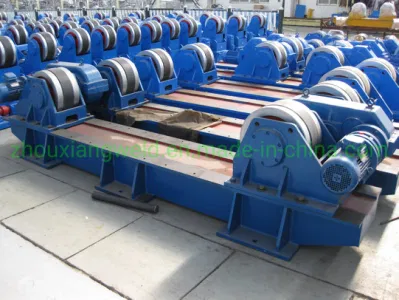

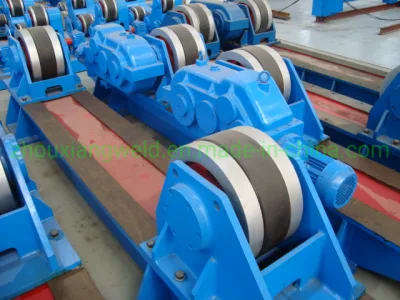

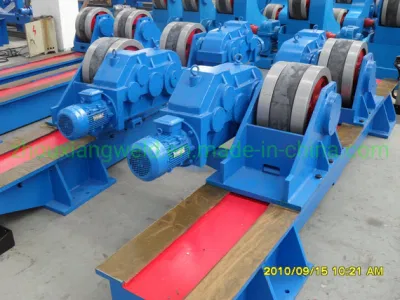

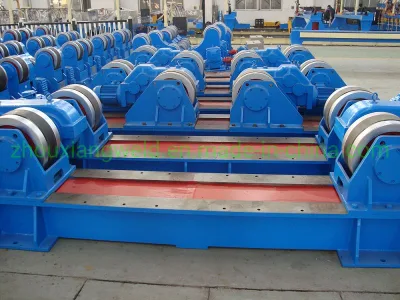

This adjustable welding rotator consists of lead screw adjustable type and bolt adjustable type. It is used for welding of round cylinders. By moving the roller groups according to different diameters of work-piece, the center distance can be adjusted to suitable for the work-piece with diameters. The adjustable welding rotator consists of powered rotator, idle rotator, driving reducer system and control system etc.
Self-Aligned Welding Rotator/Conventional Vessel Turning Rolls/Pipe Walking Turning Roller
Self-Aligned Welding Rotator/Conventional Vessel Turning Rolls/Pipe Walking Turning Roller
Self-Aligned Welding Rotator/Conventional Vessel Turning Rolls/Pipe Walking Turning Roller
1. Driven roller frame and idler roller frame box-shaped base structure by good force, not easily deformed, can move freely on the track to adjust the distance between the roller frame, and can be easily fixed to the rail, positioning accuracy, easy to adjust.
2. Roller material is high-strength steel castings ZG45, having a large strength and wear-resistant, long life and other characteristics, suitable for large and heavy work-piece.
3. It adopts double driving, the 2 rollers are driven by 2 sets of motor via reducer, with stepless speed adjust by frequency converter.
4. It adopts elevating type for anti-creep, by using one roller's up and down work to adjust center distance of work piece to coincide with center line of rotator, thus to realize anti-creep purpose.
5. The sensor adopts Germany NOVO Company's high precision displacement sensor with high precision, long service time and good linearity etc.
6. Electric control system equipped Siemens or ABB low voltage device, with high stability and strong anti-jamming capability.
7. It is equipped with detector which can test axial movement professionally and can calculate according to detection signal to control the creeping amount of work-piece. This device is easy to install and convenient to adjust.
Self-Aligned Welding Rotator/Conventional Vessel Turning Rolls/Pipe Walking Turning Roller
Customers of Zhou Xiang

Self-Aligned Welding Rotator/Conventional Vessel Turning Rolls/Pipe Walking Turning Roller

Main Products

Self-Aligned Welding Rotator/Conventional Vessel Turning Rolls/Pipe Walking Turning RollerSelf-Aligned Welding Rotator/Conventional Vessel Turning Rolls/Pipe Walking Turning Roller

Company Profile

Self-Aligned Welding Rotator/Conventional Vessel Turning Rolls/Pipe Walking Turning Roller

Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including  Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc.
We have high sincerity to do business with customers all over the world and establish good friendships.
Self-Aligned Welding Rotator/Conventional Vessel Turning Rolls/Pipe Walking Turning Roller Self-Aligned Welding Rotator/Conventional Vessel Turning Rolls/Pipe Walking Turning Roller Self-Aligned Welding Rotator/Conventional Vessel Turning Rolls/Pipe Walking Turning Roller Self-Aligned Welding Rotator/Conventional Vessel Turning Rolls/Pipe Walking Turning Roller Self-Aligned Welding Rotator/Conventional Vessel Turning Rolls/Pipe Walking Turning Roller Self-Aligned Welding Rotator/Conventional Vessel Turning Rolls/Pipe Walking Turning Roller
