Basic Info.
Model NO.
HBJ-150
Condition
New
Speed of Table
0.14rpm
Size of Table
2200mm
Turning Power
3kw
Tilt
5.5
Max Gravity Distance
500mm
Max Turning Distance
3400mm
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Loat 150, 000kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month
Product Description
Standard Fixed Welding Positioner pipe turning positioner
Quickly Details:
Type: Fixed Welding Positioner / Welding Turning Table
Brand:MISA
Condition:100% brand new
Model number:HBJ-150
Capacity:1000kg-200,000 kg
Consist: (1) Main frame (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)
Product Parameter:
| Model | Rated load Cap (tons) | Power (kw) | Max Gravity Distance (mm) | Max centroid Eccentricity (mm) | Table | Max Rotation Ф@ 90 degree | Tilt Angle (degree) | |||
| Turning | Tilt | Speed(rpm) | Diameter (mm) | |||||||
| Rotation (variable) | Tilt (constant) | |||||||||
| HBJ-01 | 0.1 | 0.06 | /. | 100 | 150 | 0.40~4.0 | man. | 400 | 600 | 0~90 |
| HBJ-03 | 0.3 | 0.37 | /. | 100 | 150 | 0.10~1.0 | man. | 600 | 800 | 0~90 |
| HBJ-06 | 0.6 | 0.75 | 0.75 | 100 | 150 | 0.09~0.9 | 1.1 | 1000 | 1500 | 0~90 |
| HBJ-12 | 1.2 | 1.1 | 1.5 | 150 | 200 | 0.05~0.5 | 0.67 | 1200 | 2050 | 0~120 |
| HBJ-20 | 2 | 1.1 | 1.5 | 150 | 200 | 0.05~0.5 | 0.23 | 1400 | 2100 | 0~120 |
| HBJ-30 | 3 | 1.5 | 2.2 | 200 | 200 | 0.05~0.5 | 0.23 | 1400 | 2100 | 0~120 |
| HBJ-50 | 5 | 3 | 3 | 300 | 300 | 0.05~0.5 | 0.14 | 1500 | 2500 | 0~120 |
| HBJ-80 | 8 | 3 | 3 | 300 | 300 | 0.05~0.2 | 0.14 | 2000 | 3240 | 0~120 |
| HBJ-100 | 10 | 3 | 4 | 400 | 400 | 0.05~0.2 | 0.14 | 2000 | 3240 | 0~120 |
| HBJ-150 | 15 | 3 | 5.5 | 500 | 200 | 0.05~0.5 | 0.14 | 2200 | 3400 | 0~120 |
| HBJ-200 | 20 | 4 | 7.5 | 630 | 200 | 0.05~0.5 | 0.14 | 2500 | 3400 | 0~120 |

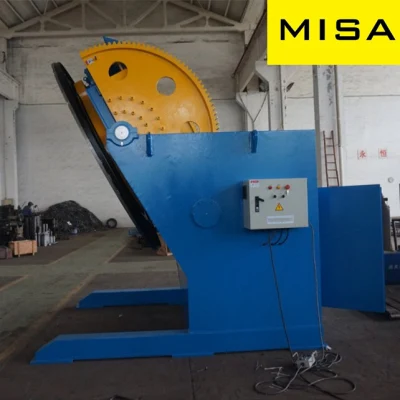

Product Photo:

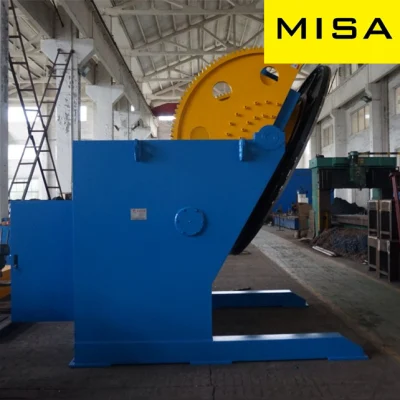

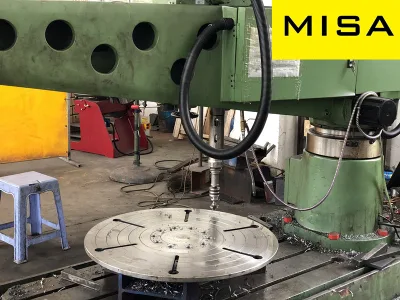

Detail Photo:
Brief Description:
Welding positioner consists of turing and overturning mechanism of working table, turning and overturning make the workpiece to reach a reasonable welding and fitting angle by the elevating of the working table, the turning of working table is frequency conversion which can get a satisfactory welding speed.
Because of the eccentricity and center of gravity, to the longer and more offset from gravity center workpiece, large model should be chosen. Pls do give us the shape and weight of the workpiece, also the processing technology, we can give you the suitable idea.
Application:
1. Pipe to pipe (or Elbow or Flange);
2. Welded Barrels
3. Storage tanks
4. Industrial drums
5. Tank and drum fabrication
6. Cylindrical structure cutting of cylindrical job pipe elbow
7. Framework of car , digger arm, loading machine , digger machine;
Description:
Welding positioner consists of turning and overturning mechanism of working table .Turning and overturning make the workpiece to reach a reasonable welding and fitting angle by the elevating of the working table,the turning of the working table is frequency conversion which can get a satisfactory welding speed.Because of the offset from center and gravity center ,To the longer and more offset from gravity center workpiece large model should be chosen.
Kindly Noted:
1. You can choose Fixed type or Elevating type .
2. Welding Positioner can tilting from 0° to 120°, rotation 360° via VFD control.
3. Standard Voltage is 380V , 50HZ , 3PH. Other voltage please kindly let us know.

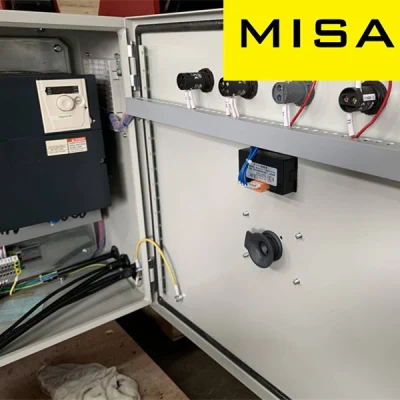

4. Controlled is remote-control box, optional is foot switch
5. If customer need more special requirements , we could study with our engineer.
