40t Red Painting Standard Pipe Welding Rotator for Assemble and Welding The Pipe

Find high-quality 40t Red Painting Standard Pipe Welding Rotator for your pipe assembly and welding needs at our factory. Buy now for reliable performance.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HGK-40
Wheel Width
200mm
Vessel Diameter
500-4800mm
Wheel Velocity
6-60m/H
Power of Motor
2*1.5kw
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Loat 40, 000kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month

Product Description

40T Red Painting Standard Pipe Welding Rotator For Assemble And Welding The Pipe


Quickly Details:

Type:Conventional Pipe-up Growing Line/Tank Fit up Rolls
Brand:MISA
Condition:100% brand new
Model number:HGK
Capacity:5Ton - 1000Ton
Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)

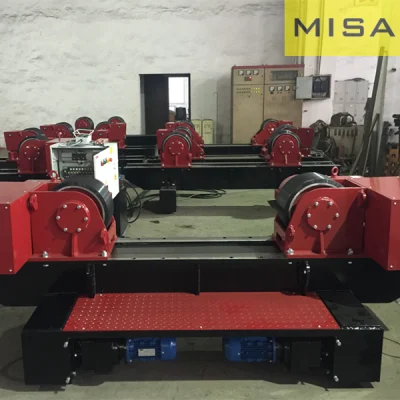

Product Photo:

40t Red Painting Standard Pipe Welding Rotator for Assemble and Welding The Pipe


Product Parameter:
Type Max loading (kg) Vessel diameter(mm) Dia. and width of the wheel(mm) Roller linear velocity(m/h)







6-60










Power of motor(kw)
Rubber rollers Metal rollers
HGKS-5 5,000 Φ250-2300 Φ250×100 2×Φ240×20 2X0.37
HGKS-10 10,000 Φ320-2800 Φ300×120 2×Φ290×25 2X0.55
HGKS-20 20,000 Φ500-3500 Φ350×120 2×Φ340×30 2X0.75
HGKS-40 40,000 Φ600-4200 Φ400×120 2×Φ390×40 2X1.5
HGKS-60 60,000 Φ750-4800 Φ450×120 2×Φ440×50 2X2.2
HGKS-80 80,000 Φ850-5000 Φ500×120 2×Φ490×60 2X3
HGKS-100 100,000 Φ1000-5500 Φ500×120 2×Φ490×80 2X3
HGK-S150 150,000 Φ1000-6000 / Φ620×220 2X4
HGKS-250 250,000 Φ1800-7500 / Φ660×260 2X5.5
HGKS-500 500,000 Φ1800-8000 / Φ750×400 2X7.5

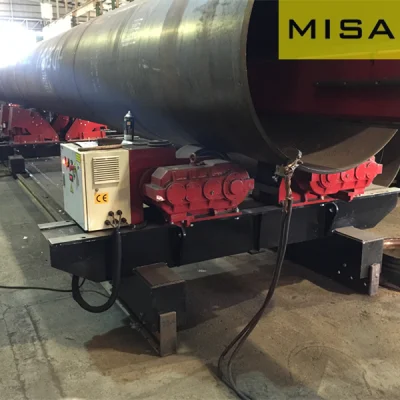

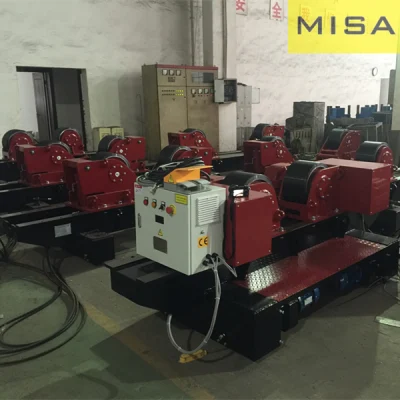

Detail Photo:

40t Red Painting Standard Pipe Welding Rotator for Assemble and Welding The Pipe


Product Description:

Welding rotator is used to weld,polish and assemble the cylinder-shells,and to line the shells with rubber.It can be aligned by itself according to the size of the shell, it can be controlled with AC frequency converter,and the linear velocity is displayed by the digital.The distance between the wheels ,could adjust by bolt or manual lead screw.To realize the diameter could suit for the workpiece.
We also can design the customize various types of the welding rotator in accordance with the customers requirement.


Application:

1. Pressure vessels.
2. Pipe manufacturing industries
3. Wind power fabrication
4. Cylindrical tank's welding, polishing, rubber lining, assembling ,etc
5. Chemical & fuel storage tank fabrication
6. Any heavy cylindrical job


Packing and Shipment:

40t Red Painting Standard Pipe Welding Rotator for Assemble and Welding The Pipe


Kindly Noted:


1. Model from 5T-100T, others please let us know.

2. One set of welding turning rolls include one drive & one idler, also customer can choose other combinations.

3. Voltage standard is 380V, 50HZ, 3PH. Other voltage please kindly let us know.

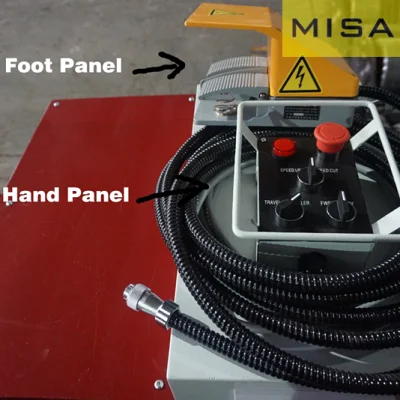

4. Control panel is wired control, or you can choose wireless control.

5. If need more special requirements ,we'll study with our engineer.

6.The revolve adopt A.C. Inverter motor driving.
