2 Ton Hydraulic Welding Positioner, for Pipe Flange Elbow, Rotary Welding Equipment

Introducing our 2 Ton Hydraulic Welding Positioner, perfect for pipe flange elbow welding. Our rotary welding equipment is ideal for factory use.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HBJ-20
Condition
New
Speed of Table
0.67rpm
Size of Table
1200mm
Turning Power
1.1kw
Tilt
1.5
Max Gravity Distance
150mm
Max Turning Distance
2050mm
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Loat 2000kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month

Product Description

2 Ton Hydraulic Welding Positioner, For Pipe Flange Elbow, Rotary Welding Equipment
Quickly Details:
Type: Hydraulic Welding Positioner / Welding Turning Table /
Brand:MISA
Condition:100% brand new
Model number:HBJ-20
Capacity:1000kg-200,000 kg
Consist: (1) Main frame (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)

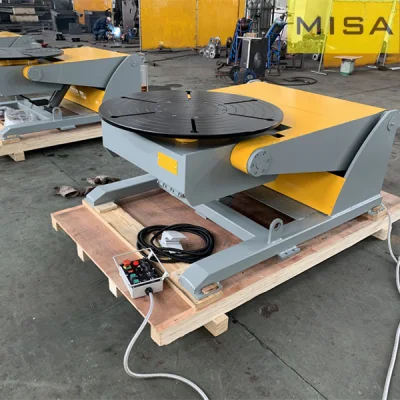

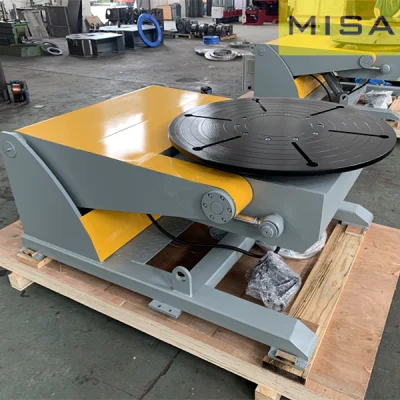

Product Photo:
2 Ton Hydraulic Welding Positioner, for Pipe Flange Elbow, Rotary Welding Equipment

Product Parameter:
Model Rated load Cap
(tons)
Power (kw) Max Gravity Distance
(mm)
Max
centroid Eccentricity (mm)
Table Max Rotation Ф@ 90
degree
Tilt Angle (degree)
Turning Tilt Speed(rpm) Diameter (mm)
Rotation
(variable)
Tilt (constant)
HBJ-01 0.1 0.06     /. 100 150 0.40~4.0 man. 400 600 0~90
HBJ-03

0.3 0.37     /. 100 150 0.10~1.0 man. 600 800 0~90
HBJ-06

0.6 0.75 0.75 100 150 0.09~0.9 1.1 1000 1500 0~90
HBJ-12 1.2 1.1 1.5 150 200 0.05~0.5 0.67 1200 2050 0~120
HBJ-20 2 1.1 1.5 150 200 0.05~0.5 0.23 1400 2100 0~120
HBJ-30 3 1.5 2.2 200 200 0.05~0.5 0.23 1400 2100 0~120
HBJ-50 5 3 3 300 300 0.05~0.5 0.14 1500 2500 0~120
HBJ-80 8 3 3 300 300 0.05~0.2 0.14 2000 3240 0~120
HBJ-100 10 3 4 400 400 0.05~0.2 0.14 2000 3240 0~120
HBJ-150 15 3 5.5 500 200 0.05~0.5 0.14 2200 3400 0~120
HBJ-200 20 4 7.5 630 200 0.05~0.5 0.14 2500 3400 0~120

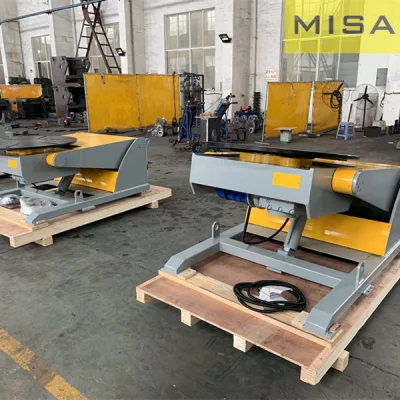

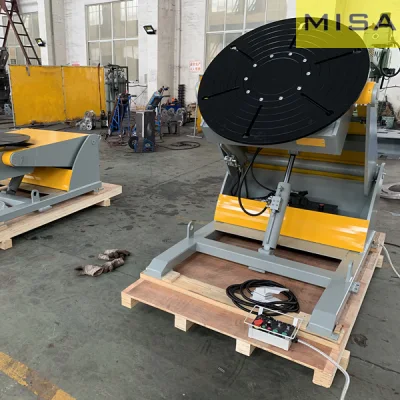

Detail Photo:
2 Ton Hydraulic Welding Positioner, for Pipe Flange Elbow, Rotary Welding Equipment

Application:
Hydraulic welding Positioner major used in cylinder welding , such as Marine , Oil&Gas ; Offshore , Petro Chemical ; Plate Heat Exchanger ; Charged air cooler ; Pressure Vessel ; Boiler ; Pipe system&Steel works etc.
1Pressure vessels.
2Pipe manufacturing industries
3Wind power fabrication
4Chemical & fuel storage tank fabrication
5Any heavy cylindrical job
6Cylindrical tank's welding , polishing , rubber lining , assembling , etc
7Match up with other tools for welding or assembling for cone and section equality solid of revolution
8Customized special welding rotators according to client's requirements.

Product Description:
Hydraulic welding positioner is generally consists of worktable rotation mechanism , turnover mechanism and electric control system. The worktable is tilting by motor , accurate and reliable positioning ; it makes the work piece in perfect position for welding. The worktable adopts AC frequency conversion speed , so large range of variable speed and high precision.

Packing And Shipment:
2 Ton Hydraulic Welding Positioner, for Pipe Flange Elbow, Rotary Welding Equipment

Kindly Noted:
1.You can choose Fixed type or Elevating type .
2.Welding Positioner can tilting from 0° to 120°, rotation 360° via VFD control.
3. Standard Voltage is 380V , 50HZ , 3PH. Other voltage please kindly let us know.
4. Controlled is remote-control box, optional is foot switch
5. If customer need more special requirements , we could study with our engineer.
