4*4 Welding Manipulator with Lincoln Na-5 Controller, Wire Feeder and Welding Torch, Column and Boom

Introducing our Column and Boom with 4*4 Welding Manipulator, Lincoln Na-5 Controller, Wire Feeder and Welding Torch. Buy from our factory today!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
LH4040
Rotation
Motorized
Elevation Speed
1.0m/Min
Power
2.75kw
Rail C to C
1600mm
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Vertical Stroke 4M
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month

Product Description

4*4 Welding Manipulator With Lincoln NA-5 Controller, Wire Feeder And Welding Torch, Column and Boom

Quick Details:
Type:Welding Manipulator/ Welding Column And Boom
Condition:100% brand new
Place of origin:Wuxi China(Mainland)
Brand:MISA
Usage:Circular Welding Seam
Voltage:110V-600V
Dimensions and weight:According to the model

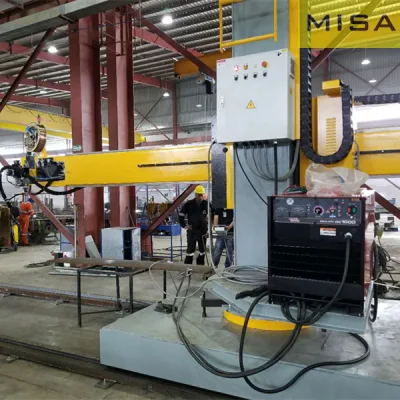

Product photo:
4*4 Welding Manipulator with Lincoln Na-5 Controller, Wire Feeder and Welding Torch, Column and Boom


Specifications:
Model Boom Column Traveking cart Power KW
Vertical stroke(A)m Horizontal stroker(B)m Elevation speed m/min Traverse speed m/min Max load at extremity kg Total height(C)m Dimensions
(D)×(E)×H m
Rail c to c(F)mm
LH1515 1.5 1.5 0.3 0.12~1.2 100 2.9 1.25×1.2×0.2 1052 0.91
LH2020 2.0 2.0 0.3 100 3.4 1.25×1.2×0.2 1052 0.91
LH3030 3.0 3.0 1.0 200 5.5 2.4×1.9×0.4 1600 2.75
LH3040 3.0 4.0 1.0 200 5.5 2.4×1.9×0.4 1600 2.75
LH4040 4.0 4.0 1.0 200 6.5 2.4×1.9×0.4 1600 2.75
LH4050 4.0 5.0 1.0 200 6.5 2.4×1.9×0.4 1600 2.75
LH5050 5.0 5.0 0.9 300 7.8 2.6×2.1×0.5 1798 3.5
LH5060 5.0 6.0 0.9 300 7.8 2.6×2.1×0.5 1798 3..5
LH6060 6.0 6.0 0.9 300 9.7 2.6×2.1×0.5 1798 3.5

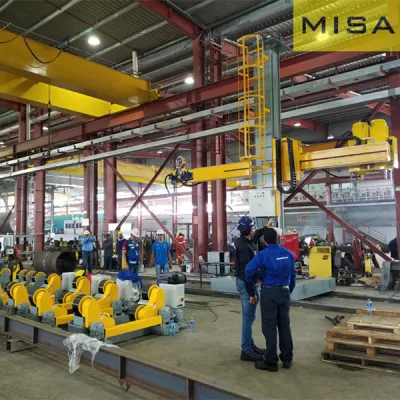

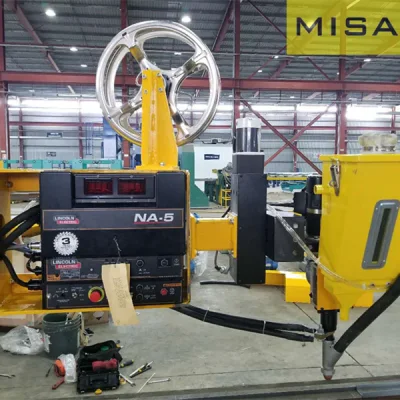

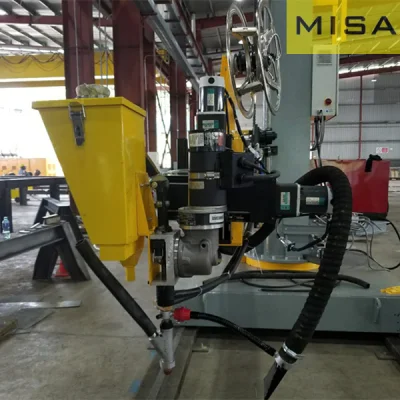

Detail Photo:
4*4 Welding Manipulator with Lincoln Na-5 Controller, Wire Feeder and Welding Torch, Column and Boom

Product description:
Pipe welding manipulator is the automatic welding equipment composed together with welding power. It can be used together with welding rotator or welding positioner, and widely used in industries as boiler, pressure vessel, petro-chemical machinery for welding of inner and outer longitudinal seams and circumferential seams. It features in advanced structure complete functioneasy operation, which ensures improving of welding quality.

Kindly Noted:
1. Model from ZH-1515-ZH8080, please confirmed before you order.
2. Three structure of the column and boom: Stationary ; Stationary and revolve ; Moving and revolve , Please confirmed before you order.
3. Voltage standard is 380V , 50HZ , 3PH. We can customized other voltage
4. We can design that the electric box control, the manipulator and rotator together
5. With cross turning for the welding head.
6. We could equip Welding machine(SAW, TIG, MIG) and flux recovery machine.

Packing and Shipment:
4*4 Welding Manipulator with Lincoln Na-5 Controller, Wire Feeder and Welding Torch, Column and Boom

Brand using:
1. Inverter is made in USA Danfoss / Taiwan Delta /Japan Yaskawa
2. Motor Brand is UK Invertek /Taiwan Qinwei / Siemens
3. Element is made by Schneider /Siemens/Fuji
4. Reducer is made by Kaibo/Guomao
5. Bearing is made by NTN / Harbin
